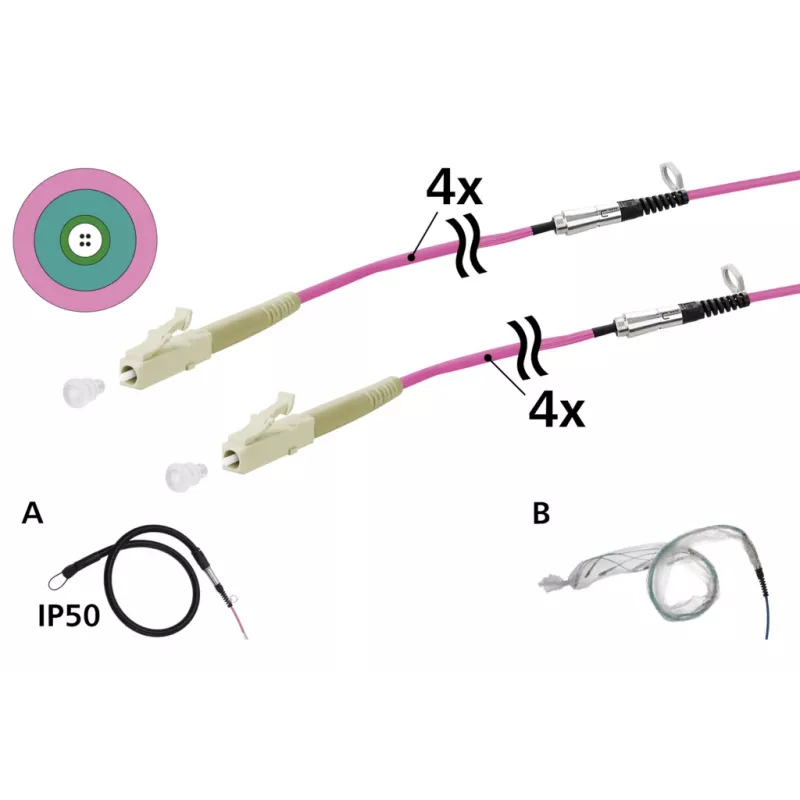

METZ CONNECT OpDAT VIK Universal Cable 4xOM4 LC-LC 50m with Pulling Aid IP50 152U047JJ5050G

With a modal bandwidth of 4700 MHz·km at 850 nm, this pre-terminated fiber optic cable delivers high-speed multimode performance for data-intensive applications. The METZ CONNECT OpDAT VIK universal cable features 4 OM4 fibers with LC duplex connectors on both ends, ready for immediate deployment in 50-meter runs.

Overview

The OpDAT VIK series is a universal pre-terminated fiber optic cable designed for indoor and protected outdoor environments. It integrates a pulling aid for easy installation, reducing deployment time and effort. The cable jacket is made of LSZH material in aqua color, meeting low smoke zero halogen requirements for safety in populated areas.

What stands out

• OM4 multimode fiber supports 40/100 Gigabit Ethernet up to 150 meters.
• Integrated pulling aid simplifies pulling through conduits and tight spaces.
• IP50 rating protects against dust ingress, suitable for protected environments.
• LSZH jacket emits low smoke and no halogen in case of fire.

Technical details

• Fiber type: OM4 multimode, 4 fibers
• Connectors: LC duplex on both ends
• Length: 50 meters
• Attenuation: ≤ 3.5 dB/km at 850 nm, ≤ 1.5 dB/km at 1300 nm
• Modal bandwidth: 4700 MHz·km at 850 nm, 500 MHz·km at 1300 nm
• Operating temperature: -10°C to +60°C
• Jacket: LSZH, aqua

Our verdict

A reliable, high-performance pre-terminated cable that saves installation time and ensures consistent optical performance for enterprise networks.
