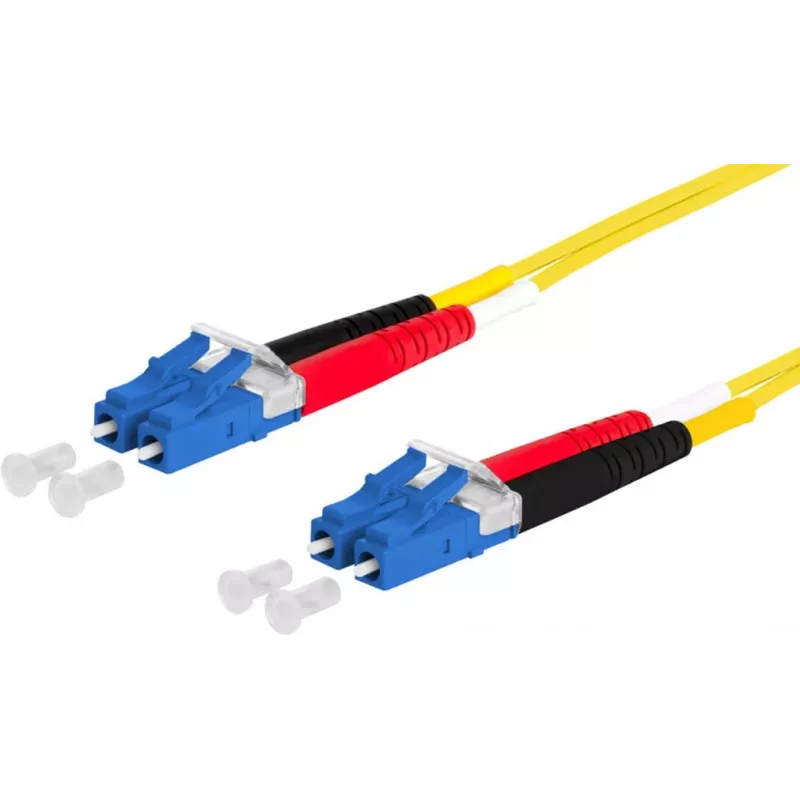

METZ CONNECT OpDAT Patch Cable LC Duplex to LC Duplex OS2 4.0 m - Fiber Optic Patch Cable

The METZ CONNECT OpDAT patch cable is a high-quality fiber optic patch cable designed for reliable single-mode connections in indoor network environments. With LC duplex connectors on both ends and a length of 4.0 meters, this OS2-rated cable ensures low insertion loss and high return loss for optimal signal integrity.

Advantages

Low insertion loss (≤0.25 dB per connector) and high return loss (≥50 dB UPC) guarantee excellent performance. The LSZH (Low Smoke Zero Halogen) jacket provides safety in case of fire, making it suitable for use in public buildings and data centers. The yellow jacket color allows for easy identification as a single-mode cable.

Suitable for

• Data center patching
• Telecommunications networks
• Fiber-to-the-desk applications
• Indoor backbone cabling

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Mode: Single-mode
• Fiber Class: OS2
• Connector Type A: LC Duplex
• Connector Type B: LC Duplex
• Cable Length: 4.0 m
• Number of Fibers: 2
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Cable Diameter: Approx. 3.0 mm
• Insertion Loss (Max.): ≤ 0.25 dB (per connector)
• Return Loss (Min.): ≥ 50 dB (UPC)
• Attenuation (1310nm): ≤ 0.35 dB/km
• Attenuation (1550nm): ≤ 0.25 dB/km
• Operating Temperature: -10°C to +60°C
• Storage Temperature: -20°C to +70°C
• Polarity: A-B (Crossed)
• Compliance: RoHS, REACH, IEC 61753-1 Cat. U
• Application: Indoor
• Series: OpDAT

Recommendations

For optimal performance, ensure connectors are clean before mating. Use appropriate cable management to avoid sharp bends exceeding the minimum bend radius.
