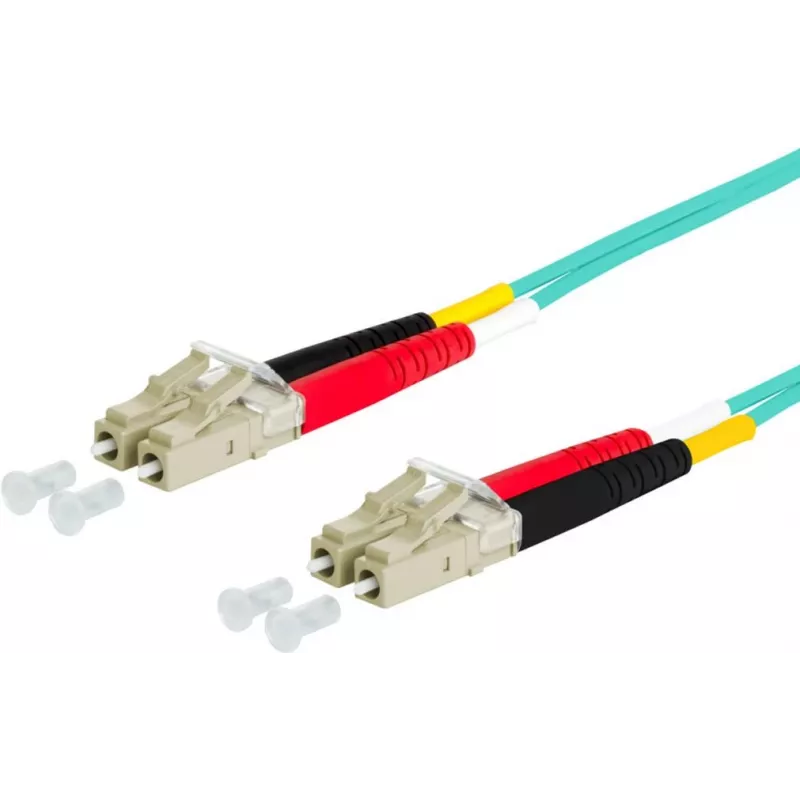

METZ CONNECT 151J1JOJO50E Fiber Optic Patch Cable LC Duplex to LC Duplex 50/125µm Multimode OM3 5m Aqua

The METZ CONNECT 151J1JOJO50E is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. This cable features LC duplex connectors on both ends, a 50/125µm multimode fiber core, and OM3 performance classification, making it ideal for high-speed applications in data centers, LANs, SANs, and telecommunications. With a length of 5.00 meters and an aqua jacket, it offers easy identification and optimal signal integrity.

Advantages

This patch cable ensures low attenuation and high bandwidth, supporting wavelengths of 850nm and 1300nm. Its duplex construction provides two fibers for simultaneous bidirectional communication, while the LC duplex connectors offer a compact design for high-density patching. The aqua jacket color is standard for OM3 multimode cables, simplifying cable management.

Suitable for

• Data center interconnects
• Local area networks (LANs)
• Storage area networks (SANs)
• Telecommunications infrastructure
• High-speed fiber optic links requiring OM3 performance

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Multimode
• Fiber Category: OM3
• Core/Cladding Diameter: 50/125 µm
• Connector Type A: LC Duplex
• Connector Type B: LC Duplex
• Number of Fibers: 2
• Cable Length: 5.00 m
• Cable Construction: Duplex
• Jacket Color: Aqua
• Wavelength Support: 850nm / 1300nm
• Bandwidth (850nm): 1500 MHz·km
• Bandwidth (1300nm): 500 MHz·km
• Attenuation (850nm): < 3.5 dB/km
• Attenuation (1300nm): < 1.5 dB/km
• Compliance: TIA/EIA-568-C.3, ISO/IEC 11801

Recommendations

For optimal performance, ensure that the cable is installed with proper bend radius protection and that connectors are cleaned before use. This cable is compatible with standard LC duplex interfaces and OM3-rated equipment.
