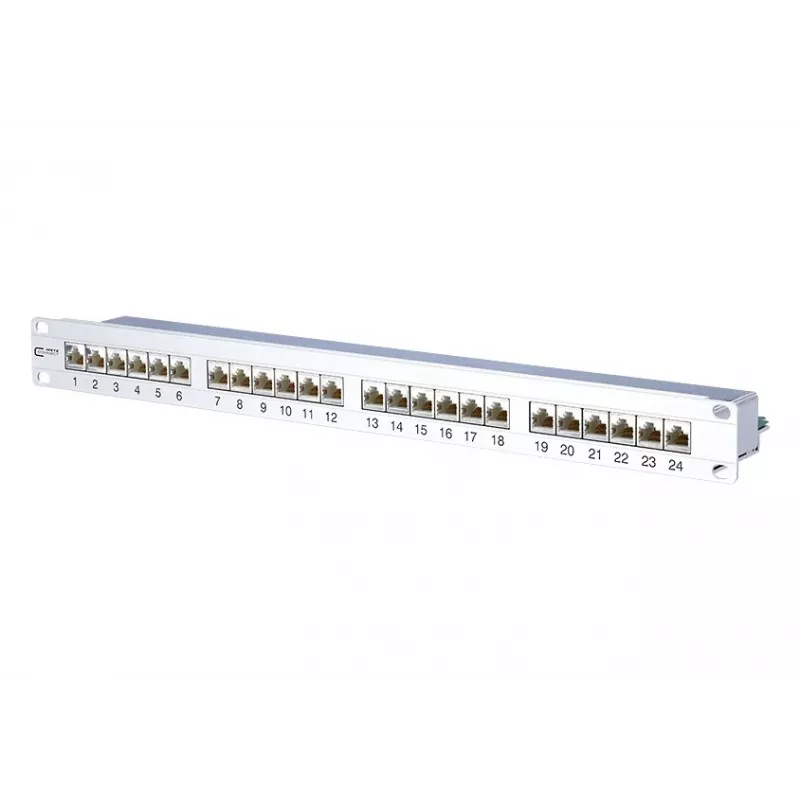

METZ CONNECT 130855C-E-90 Cat.6A Shielded 24-Port 1U Rack Mount Patch Panel, White

Managing high-density network cabling in data centers and server rooms demands a solution that combines performance, reliability, and ease of maintenance. The METZ CONNECT 130855C-E-90 Cat.6A shielded patch panel addresses these challenges by providing 24 ports in a compact 1U rack-mount form factor, engineered for 10 Gigabit Ethernet and Power over Ethernet up to 4PPoE. Its tool-free module design and integrated cable management streamline installation and future upgrades, making it an essential component for professional network infrastructure.

Who is it for

This patch panel is ideal for IT administrators, network installers, and facility managers who require a high-performance, shielded Cat.6A patching solution in enterprise networks, data centers, or industrial environments. It is particularly suited for applications demanding 10GBASE-T transmission, PoE delivery to powered devices, and efficient cable organization in standard 19-inch racks.

Main features

• 24 shielded RJ45 ports for Cat.6A modules, supporting 10 Gigabit Ethernet (10GBASE-T) per ISO/IEC 11801 and EN 50173-1.
• 1U 19-inch rack mount design with steel powder-coated housing in white (RAL 9010) for durability and a clean appearance.
• Tool-free module installation: C6A modules can be individually replaced or upgraded without special tools, reducing downtime.
• Integrated rear cable tie bar and labeling fields for organized cable management and easy port identification.
• Built-in grounding bolt ensures proper shielding and compliance with EMC requirements.
• Supports Power over Ethernet standards: PoE (IEEE 802.3af), PoE+ (IEEE 802.3at), and 4PPoE (IEEE 802.3bt) for powering devices like IP cameras, access points, and VoIP phones.
• Wide operating temperature range from -40 °C to 70 °C, suitable for challenging environments.

Specifications

• Product type: Patch panel
• Rack units: 1U
• Number of ports: 24
• Cabling standard: Cat.6A (ISO/IEC 11801, EN 50173-1)
• Transmission performance: 10 Gigabit Ethernet (10GBASE-T)
• Shielding: Shielded
• Mounting: 19-inch rack mount
• Colour: White (RAL 9010)
• Housing material: Steel sheet, powder-coated
• Connector type: RJ45 (for C6A modules)
• Module type: C6A module (individually replaceable)
• Cable management: Rear cable tie bar
• Grounding: Integrated grounding bolt
• Operating temperature: -40 °C to 70 °C
• Standards compliance: IEC 60603-7-51, ISO/IEC 11801, EN 50173-1
• Installation: Tool-free module installation
• Labeling: Integrated labeling fields

Tips

For optimal performance, use Cat.6A shielded cables and ensure proper grounding of the patch panel. When installing modules, follow the color-coded wiring scheme (T568A or T568B) consistently across the network. Regularly inspect cable ties and labeling to maintain an organized and efficient patching system.
