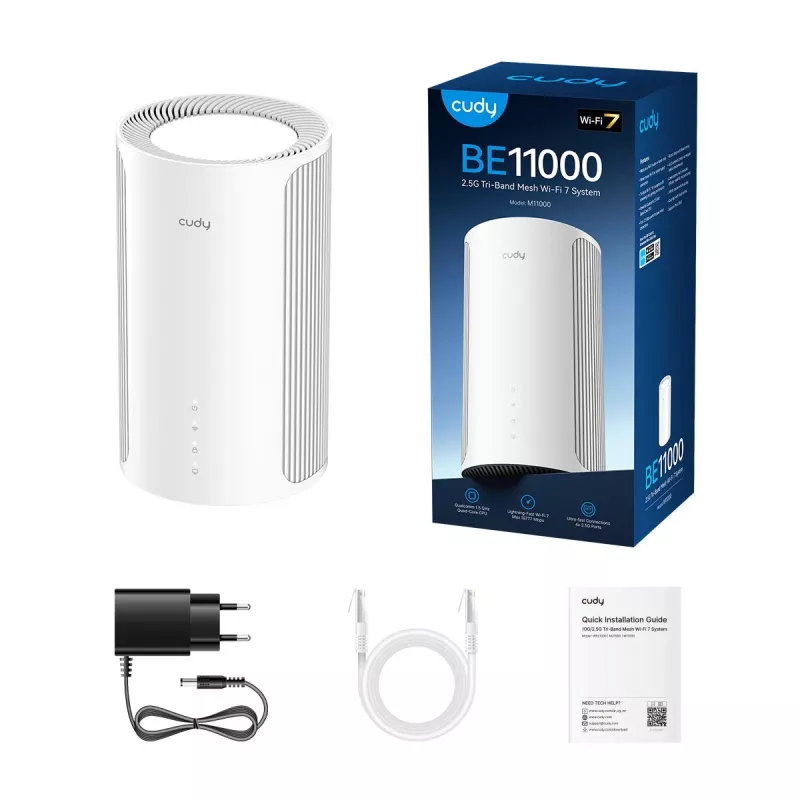

Mesh router Cudy M11000 Tri-band (2.4 / 5 / 6 GHz) Wi‑Fi 7 4x LAN White, 4 internal antennas

The Cudy M11000 is a tri-band Wi‑Fi 7 mesh router that supports 2.4 GHz, 5 GHz and 6 GHz bands and is designed for whole-home coverage, multi-device stability and high throughput. With a 1.5 GHz quad‑core processor, internal antennas and four Gigabit-class Ethernet ports, the device accommodates latency-sensitive and speed-demanding scenarios and is suitable for internet connections up to 2.5 Gbps.

Advantages

The router implements Multi-Link Operation (MLO) to improve effective wireless throughput and reduce latency for real‑time applications. It provides tri‑band Wi‑Fi 7 with aggregated channel capacity, a Qualcomm 1.5 GHz quad‑core CPU for stable processing, and four 2.5G-capable Ethernet ports for high-speed wired connections. The compact white housing with internal antennas supports a clean installation while the mesh capability and cloud/App management simplify network expansion and monitoring.

Suitable for

• Homes and apartments requiring whole‑home mesh coverage
• High‑definition streaming and online gaming with low latency
• Households with many connected devices (up to ~200 devices)
• Users with internet plans up to 2.5 Gbps seeking wired and wireless high throughput

Key specifications

• Wi‑Fi standard: 802.11be (Wi‑Fi 7) tri‑band — 2.4 / 5 / 6 GHz
• Maximum WLAN throughput: up to 4324 Mbit/s (aggregate)
• CPU: Qualcomm 1.5 GHz quad‑core
• Memory: 128 MB RAM; 512 MB flash
• Ethernet: 4 × RJ‑45 LAN ports (2.5G capable)
• Antenna: 4 internal antennas (product lists 6 internal in source; device uses internal antennas for compact design)
• Maximum coverage: approximately 260 m²
• Power: 100–240 V AC with 12 V adapter

How to use

Place the router centrally in the coverage area and connect the Ethernet WAN port to your modem or upstream network. Power the unit with the supplied 12 V adapter and use the Cudy App or cloud control to complete initial setup, create a mesh network with additional units if needed, and configure SSIDs, security and VPN settings. For best performance, position the router away from large metal objects and interference sources, and allow mesh satellites to be distributed across the home to maintain strong backhaul links.

Recommendations

For latency‑sensitive tasks such as gaming or VR, enable Multi‑Link Operation (MLO) where supported on client devices and prioritize traffic in QoS settings. Use wired 2.5G Ethernet connections for devices that require the most consistent high throughput. When expanding coverage, add mesh nodes of the same model for optimal compatibility and performance.
