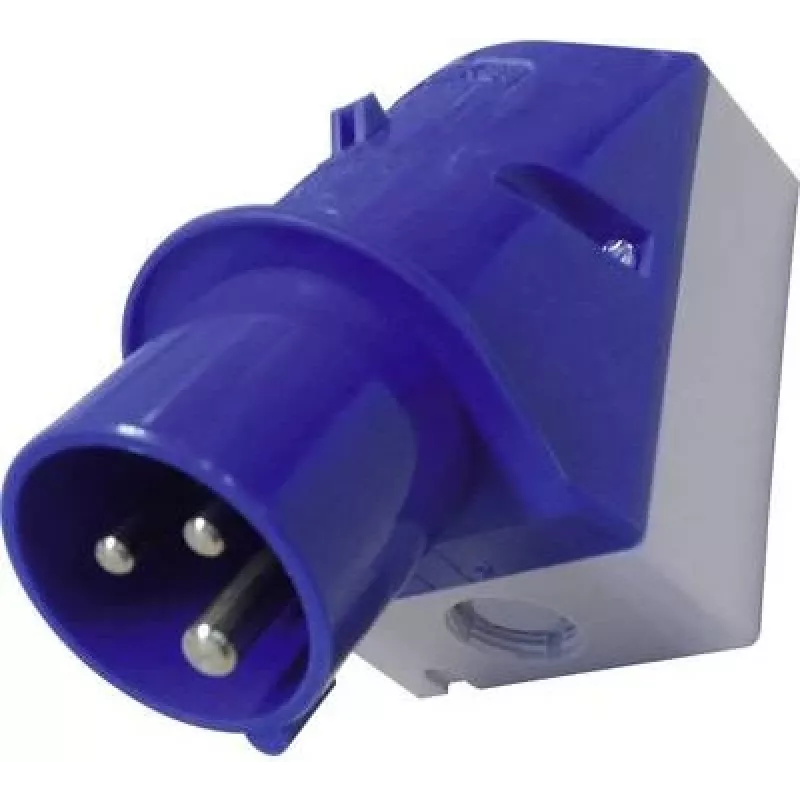

MENNEKES CEE-CARA Wall Mounted Plug 16 A 3-Pole 230 V 6h IP44 Blue

The MENNEKES CEE-CARA wall mounted plug stands out with its robust polyamide housing and splash-proof IP44 design, making it a reliable choice for industrial and outdoor power connections. Unlike standard plugs, this model is engineered for wall mounting with rear cable entry, ensuring a clean and secure installation in workshops, garages, and commercial environments.

Highlights

• 16 A current rating for demanding applications
• 3-pole (2P+E) configuration with 6h earth contact position
• 230 V rating, suitable for 50/60 Hz systems
• IP44 splash-proof protection
• Durable polyamide (PA6) housing in blue
• Wall-mounted design with rear cable entry
• Screw terminals for secure wiring
• Operating temperature range: -25°C to +40°C
• Glow wire tested at 850 °C

In daily use

Install the CEE-CARA plug on a wall or panel, connect your cable via the rear entry, and secure conductors with the screw terminals. The 6h earth contact position ensures compatibility with standard CEE sockets, while the IP44 rating protects against splashing water, making it ideal for use in damp or dusty environments.

Full specifications

• Product type: Wall mounted plug
• Standard: CEE (IEC 60309)
• Current rating: 16 A
• Number of poles: 3-pole (2P+E)
• Voltage rating: 230 V
• Frequency: 50/60 Hz
• IP protection class: IP44
• Earth contact position: 6h
• Connection technology: Screw terminals
• Housing material: Polyamide (PA6)
• Colour: Blue
• Mounting type: Wall-mounted
• Cable entry: Rear
• Temperature range: -25°C to +40°C
• Glow wire test: 850 °C

Final note

MENNEKES quality ensures long-term reliability in every connection.
