Medium voltage cable InLine 95615 Red Black 1500V 1m

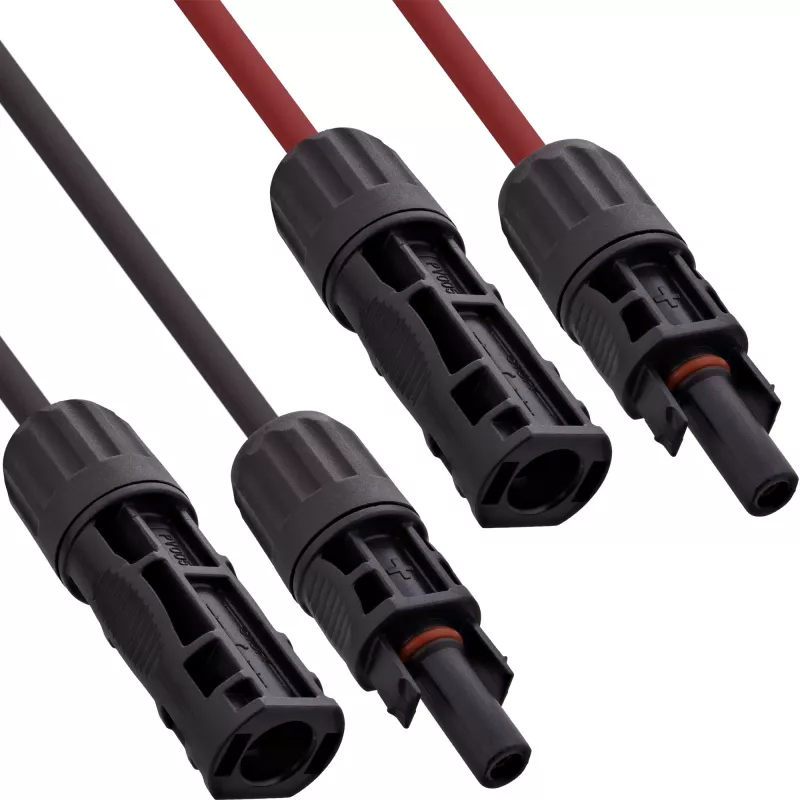

The InLine 95615 solar cable H1Z2Z2-K, 6 mm², supplied as a pair with solar plugs (one black, one red), is designed for cabling photovoltaic systems. It is rated for up to 1500 V and comes in a 1 m length with a conductor diameter of 6.3 mm and 0.7 mm insulation thickness. The cable construction and insulation are intended to provide long-term reliability and safe power transmission in PV installations. Note on conductor cross-section: the required cross-section depends on current and cable length; consult a solar technician if unsure.

Advantages

The cable combines H1Z2Z2-K solar-grade construction with a 6 mm² conductor size and integrated solar plugs to enable secure DC connections. It is available in red and black for clear polarity identification and offers insulation thickness suitable for medium-voltage PV applications up to 1500 V. The 1 m length is ready to use for short interconnections and testing, while the robust insulation and conductor design aim to ensure durability under typical PV operating conditions.

Suitable for

• Cabling between modules and string connections in photovoltaic systems
• Short runs and jumper connections where 1 m cable length is sufficient
• Applications requiring clear polarity marking (red/black)

Key specifications

• Type: H1Z2Z2-K solar cable with solar plugs
• Conductor cross-section: 6 mm²
• Maximum operating voltage: 1500 V
• Length: 1 m
• Conductor diameter: 6.3 mm
• Insulation thickness: 0.7 mm
• Colours: red and black

How to use

Strip the conductor ends according to the connector manufacturer's instructions, connect the integrated solar plugs to the corresponding PV connectors ensuring correct polarity (red = positive, black = negative), and secure cable runs to avoid mechanical strain. Observe standard PV installation practices and local electrical codes when routing and fixing the cable. For runs longer than 1 m or higher current requirements, plan appropriate cable management and use suitable gauge cables.

Recommendations

Choose the conductor cross-section based on expected current and cable length; consult a qualified solar technician if in doubt to ensure safe, code-compliant sizing and installation.
