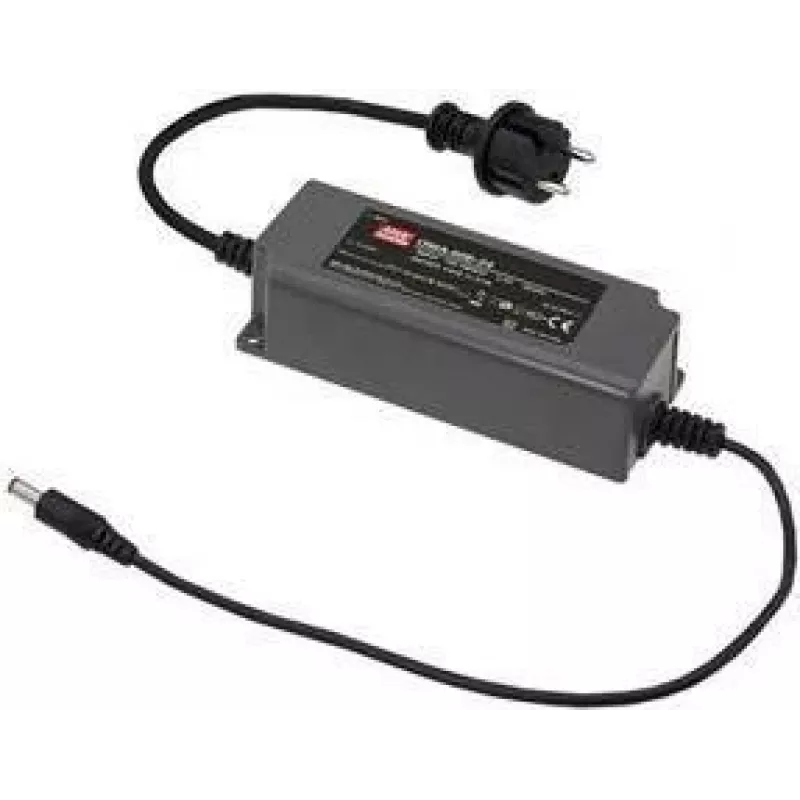

MEAN WELL OWA-60E-24 60W 24V 2.5A IP67 LED Driver Power Supply

LED installations in damp or dusty environments often fail early when moisture or debris penetrates the power supply. The MEAN WELL OWA-60E-24 solves this by sealing its 60W driver in a fully encapsulated plastic case rated IP67, so it withstands temporary immersion and harsh conditions while delivering clean 24V DC to your lighting system.

Who is it for

This unit is built for electricians, lighting contractors, and maintenance teams who need a dependable, long-life power source for outdoor LED signage, architectural lighting, or industrial fixtures. It is equally suited to indoor projects where space is tight and silent, fanless operation is required.

Main features

• 60W output at 24V DC with 2.5A current for stable LED performance
• IP67-rated fully encapsulated plastic housing resists water, dust, and vibration
• Wide 90–264VAC input range works with most global mains supplies
• High efficiency up to 90% reduces energy waste and heat buildup
• Comprehensive protection: short circuit, overload, over voltage, over temperature
• Class II isolation (no earth ground) simplifies wiring and enhances safety
• Free air convection cooling – no fan, no noise, no moving parts
• Complies with EN61000-3-2 Class C harmonic limits and EN55032 Class B EMC

Specifications

• Output power: 60W
• Output voltage: 24V DC
• Output current: 2.5A
• Input voltage: 90 ~ 264VAC (127 ~ 370VDC)
• Efficiency: Up to 90%
• IP rating: IP67
• Operating temperature: -35 ~ +70°C
• Ripple & noise: 150mVp-p
• MTBF: >500,000 hours
• Safety standards: UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1, EN61558-2-16
• Cooling: Free air convection
• Isolation class: Class II (no FG)
• Housing: Fully encapsulated plastic case

Tips

For best results, mount the driver on a flat surface away from direct sunlight to keep the case temperature within the specified range. Always confirm that the total wattage of your LED load does not exceed 60W to maintain reliability and safety.
