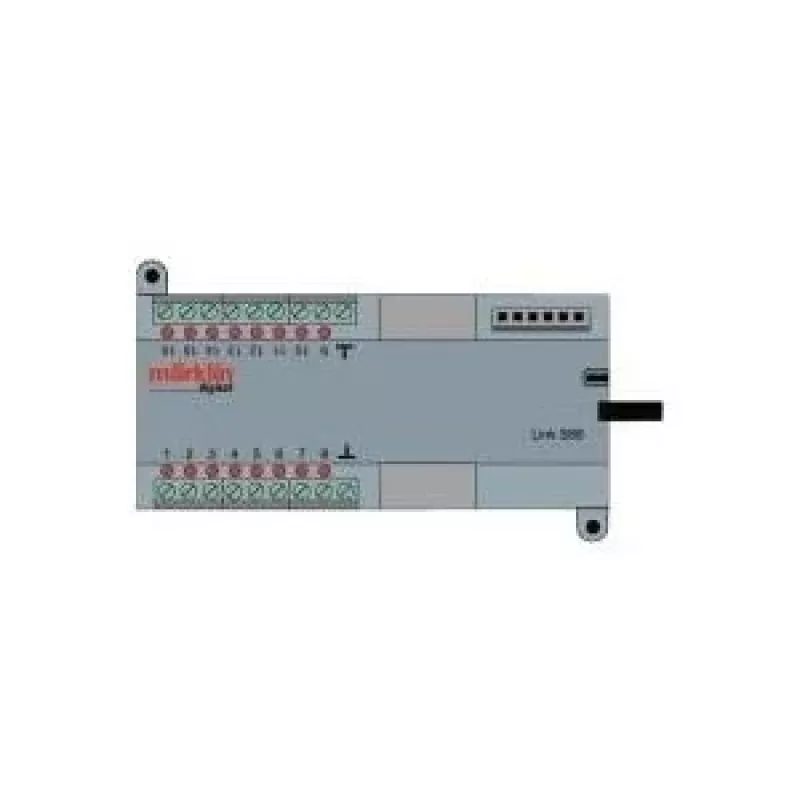

Märklin Link s 88 Digital Decoder DCC, Green/White 60883

Expand your model railway feedback capacity with the Märklin Link s 88, supporting up to 768 feedback contacts across 48 S88 modules.

Overview

The Märklin Link s 88 is a digital interface module that connects S88 feedback modules to Märklin digital control systems. It supports the S88-N bus standard and provides three independent S88 lines, each capable of handling up to 16 modules. This allows a total of 48 S88 modules and 768 feedback contacts, making it suitable for large layouts. The module features galvanic isolation between the S88 bus and the network, ensuring reliable operation.

What stands out

• Three S88-N lines for extensive feedback expansion
• Galvanic isolation between S88 bus and network
• USB connection for PC updates and configuration
• Compatible with Central Station 2/3 and Mobile Station 2

Technical details

• Product type: Digital Interface Module
• Application: Model railway control
• Feedback bus standard: S88-N
• Supported S88 lines: 3
• Max S88 modules per line: 16
• Total max S88 modules: 48
• Total max feedback contacts: 768
• Connectivity (digital system): Network (RJ45)
• Connectivity (S88 bus): 3x RJ45 (S88-N)
• Connectivity (PC/updates): USB
• Power supply: Via network connection or external 5V DC
• Colour: Green, White
• Recommended age: 15 years and up

Our verdict

The Märklin Link s 88 is a robust solution for expanding feedback capabilities on Märklin digital layouts, offering high module capacity and reliable isolation.
