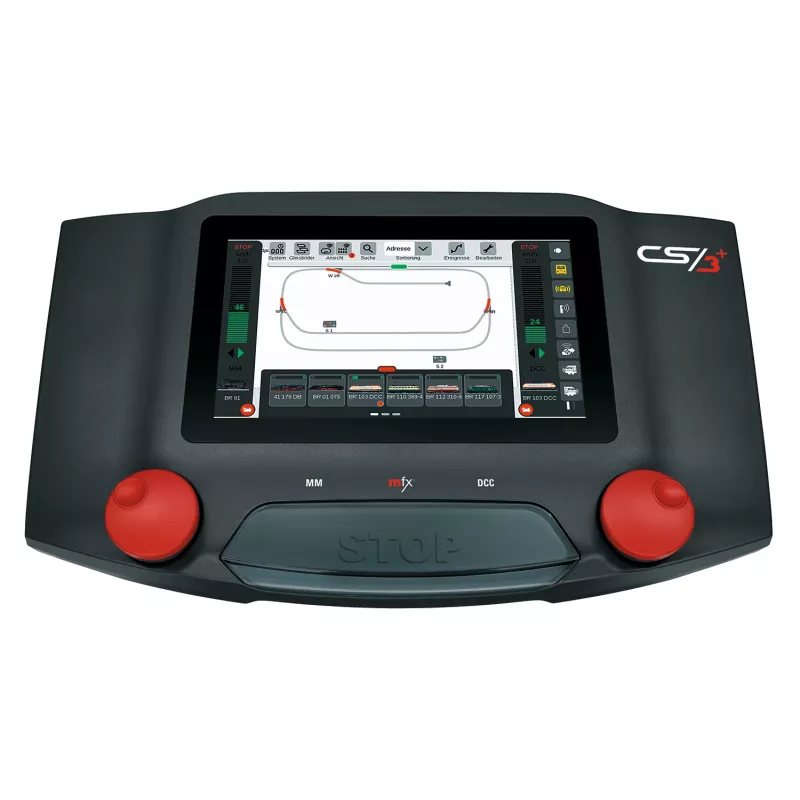

Märklin Central Station 3 plus Digital Control Unit (60216) - Black

The Märklin Central Station 3 plus is a high-performance digital control unit for model railways, featuring a color touchscreen and support for up to 320 Märklin Motorola or 2048 DCC accessories. It delivers up to 5 A output current with an appropriate power supply (sold separately).

Overview

This advanced control unit is the heart of your Märklin digital layout. It supports mfx, DCC, and Motorola protocols, allowing you to control locomotives and accessories with precision. The integrated locomotive database and booster ensure smooth operation, while the built-in loudspeaker provides realistic sound feedback.

What stands out

• Color touchscreen for intuitive operation
• Two speed controllers for manual control
• Expandable: multiple Central Stations can be connected
• Software updates via network
• Compatible with Märklin H0, 1, Z, and LGB (via protocols)

Technical details

• Protocols: mfx, DCC, Motorola
• Max. controllable accessories: 320 Märklin Motorola / 2048 DCC
• Output current: 5 A (with appropriate power supply)
• Connectivity: USB Host, USB Device, LAN, S88
• Power supply: external unit required (e.g., Märklin 60061/60101)
• Colour: Black

Our verdict

A powerful and expandable control unit for serious Märklin enthusiasts, offering comprehensive protocol support and future-proof connectivity.
