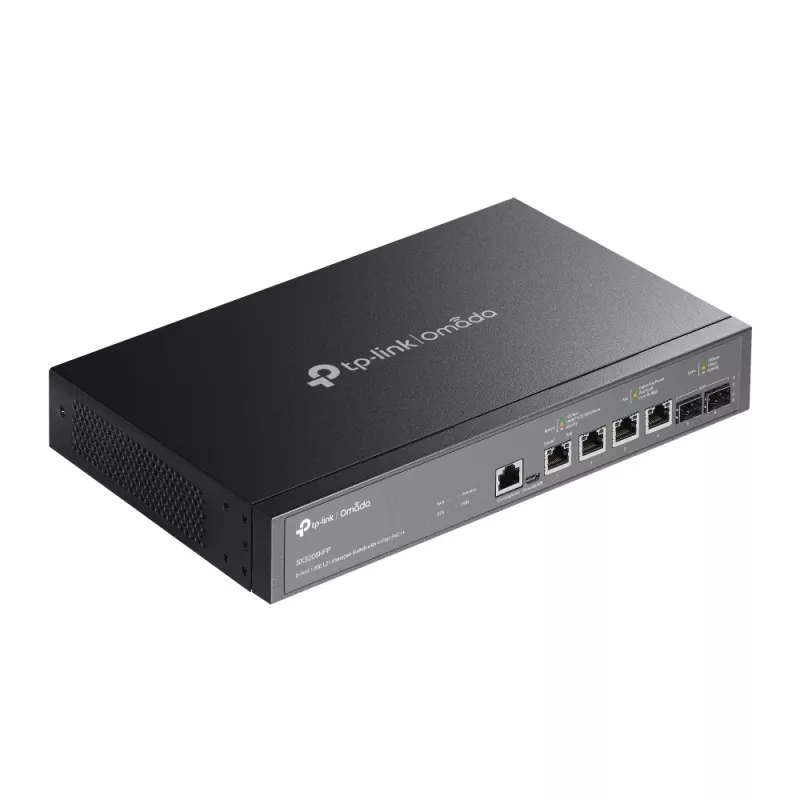

Managed Switch TP-Link JetStream TL-SX3206HPP 6-Port 10GE L2+ 4-Port PoE++

The TP-Link JetStream TL-SX3206HPP is a fully managed 6-port 10GE switch designed for high-performance wired networks. It provides four 10GE RJ45 ports with multi-speed auto-negotiation (100M/1G/2.5G/5G/10G) and two 10GE SFP+ slots, delivering a switching capacity of 120 Gbps and low-latency non-blocking performance. The switch also integrates with the Omada Cloud SDN platform for centralized cloud management and includes advanced L2+ and L3 features for scalable network deployments.

Advantages

The TL-SX3206HPP combines full 10GE connectivity and SFP+ fiber support to connect servers, switches, and high-bandwidth devices with low latency. Four RJ45 ports support multi-speed auto-negotiation for flexible device compatibility. Integrated Omada Cloud SDN enables centralized management of wired and wireless infrastructure from a single interface. Advanced L2+ and L3 features and a 120 Gbps switching capacity support scalable, resilient network topologies for enterprise, campus, and ISP environments.

Suitable for

• High-performance office networks requiring multi-gig and 10G uplinks
• WiFi 6 / WiFi 6E deployments with high-power PoE access points
• Small data center top-of-rack or server aggregation
• Hospitality, education, and retail environments needing centralized management

Key specifications

• Ports: 4 × 10GE RJ45 (100M/1G/2.5G/5G/10G), 2 × 10GE SFP+
• PoE: 802.3af/at/bt (PoE/PoE+/PoE++), up to 200 W total, up to 60 W per PoE port
• Switching capacity: 120 Gbps
• Switch type: Managed, L2+ with advanced L3 features
• Networking standards: IEEE 802.1Q, 802.1p, 802.3ad, 802.3x, 802.3bt, 802.3at, 802.3af, etc.
• Color: Black

How to use

Install the TL-SX3206HPP in a suitable rack or on a stable surface and connect power. Use the four 10GE RJ45 ports to connect multi-gig devices or PoE++ access points and utilize the two SFP+ slots for fiber uplinks to servers or other switches. Configure the switch through the web interface, CLI, or via Omada Cloud SDN for centralized monitoring and policy management. Set VLANs, link aggregation, QoS, and L3 routing features as required by your network design.

Recommendations

Use 10G-rated Ethernet cables (Cat6a or higher) for full 10GE performance on RJ45 ports, and verify power budgets when deploying multiple high-power PoE++ devices to ensure the total 200 W budget and per-port limits meet device requirements.
