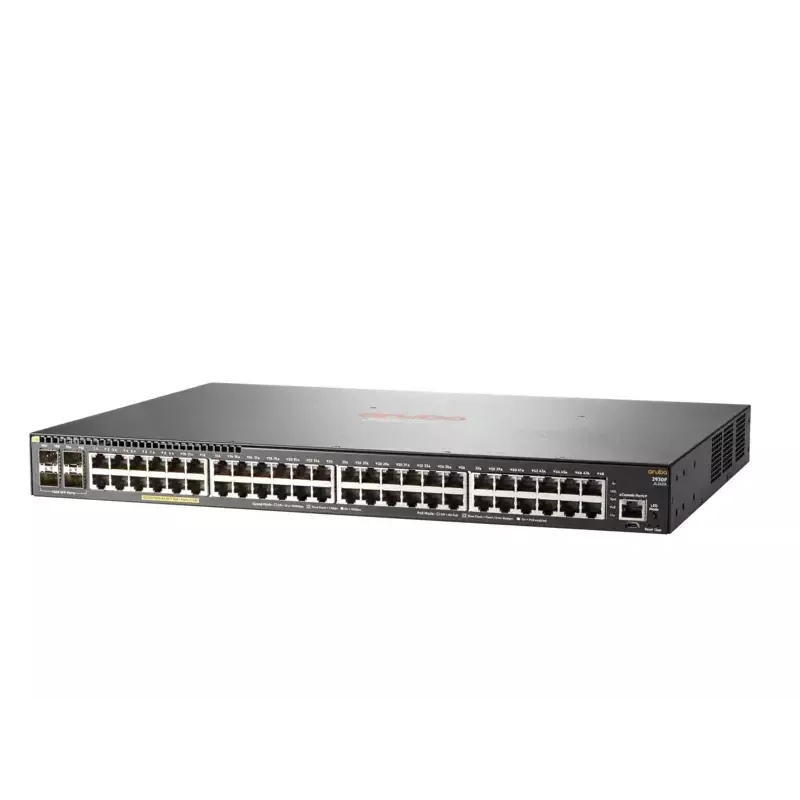

Managed Switch HPE Aruba Networking 2930F 48G PoE+ 4SFP

The Aruba 2930F Switch Series is a family of basic Layer 3 access switches designed for enterprise edge, SMB and branch offices that require unified wired and wireless management. These switches provide 1GbE or 10GbE uplinks, optional PoE+ power for APs, cameras and phones, and a ProVision ASIC that delivers low latency, increased buffering and programmability for SDN applications.

Advantages

The Aruba 2930F offers a consistent wired/wireless user experience through integration with Aruba ClearPass Policy Manager and AirWave, simplifies deployment with automatic optimal configuration for connected Aruba access points, and supports robust L3 features such as static and RIP routing and IPv6 without additional licensing. Models with PoE+ provide up to 370 W internal power, while selectable queue and buffering options help tune performance for different applications.

Key specifications

• Architecture: Basic Layer 3 access switch series
• Uplinks: Built-in 1GbE or 10GbE uplink options
• PoE: PoE+ support with up to 370 W internal power (model dependent)
• ASIC: Aruba ProVision ASIC with OpenFlow support
• Routing: Static routing and RIP
• Management: Aruba ClearPass Policy Manager and AirWave support, out-of-band Ethernet management port
• Security: 802.1X, MAC and Web Authentication, RADIUS/TACACS+, SSL, port security, MAC lockout
• Monitoring: RMON and sFlow
• QoS: Robust QoS with selectable queue configurations
• IPv6: Supported without extra software licensing

How to use

Install the Aruba 2930F in your access-layer rack or switch cabinet, connect uplinks to distribution or core switches using the built-in 1GbE or 10GbE ports, and attach PoE devices to the PoE+ ports if applicable. Use Aruba ClearPass Policy Manager to create and enforce consistent wired and wireless policies, and deploy AirWave for Zero Touch Provisioning, monitoring and management. Configure static routes or enable RIP where needed, set VLANs and QoS profiles, and adjust queue and buffering settings to match traffic patterns.

Recommendations

For a unified wired and wireless environment, pair Aruba 2930F switches with Aruba access points and use ClearPass and AirWave for centralized policy and monitoring. Choose PoE+ models when you need to power multiple APs or cameras from the switch, and plan uplink bandwidth (1GbE vs 10GbE) according to expected aggregation traffic.
