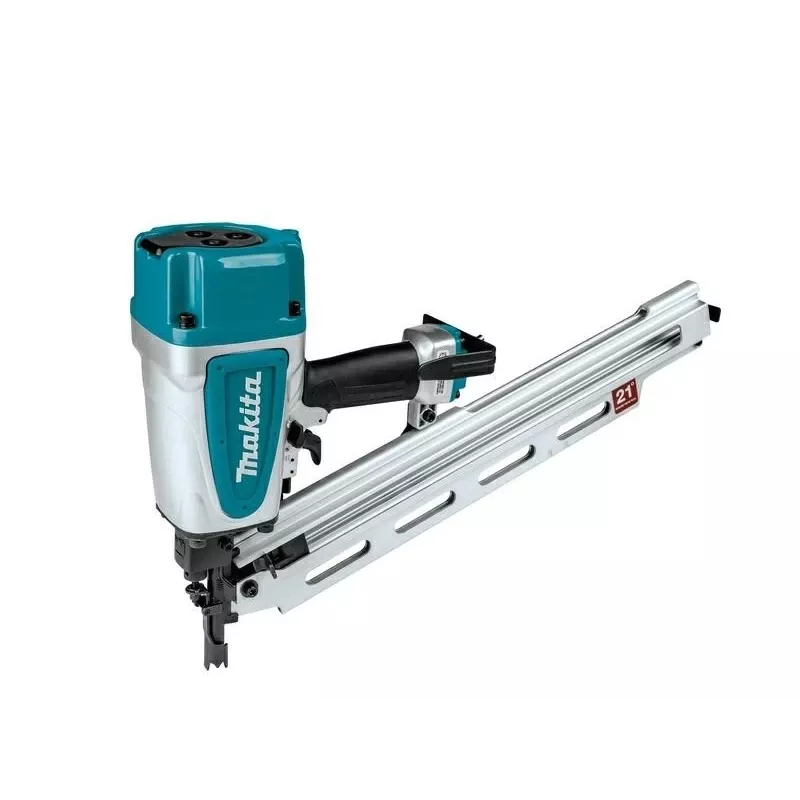

MAKITA AN924 Pneumatic Framing Nailer 50-90 mm

The MAKITA AN924 is a professional-grade pneumatic framing nailer designed for heavy-duty construction applications. It drives 21° plastic collated full round head framing nails from 50 to 90 mm (2" to 3-1/2") in length, making it ideal for framing, sheathing, and truss building. With a lightweight magnesium housing and tool-less depth adjustment, this nailer offers superior durability and ease of use on the job site.

Advantages

Lightweight magnesium construction reduces user fatigue. Selectable sequential or bump firing mode for versatility. Tool-less depth adjustment ensures precise countersinking. Dry-fire prevention protects the tool and work surface. Adjustable rafter hook and multi-directional exhaust add convenience.

Suitable for

• Framing and sheathing
• Truss building
• Fencing and decking
• General construction nailing

Key specifications

• Nail Length Range: 50 - 90 mm (2" - 3-1/2")
• Nail Diameter Range: 2.87 - 3.33 mm (0.113" - 0.131")
• Magazine Angle: 21°
• Fastener Type: 21° Plastic Collated Full Round Head Framing Nails
• Magazine Capacity: 64 - 74 nails
• Operating Air Pressure: 4.9 - 8.3 bar (70 - 120 PSI)
• Air Inlet Size: 1/4" NPT
• Firing Mode: Sequential / Bump (Selectable)
• Depth Adjustment: Tool-less
• Dry-Fire Prevention: Yes
• Rafter Hook: Adjustable
• Exhaust Direction: Multi-directional
• Sound Pressure Level: 98 dB(A)
• Sound Power Level: 109 dB(A)
• Vibration Level: 3.5 m/s²
• Housing Material: Magnesium

Recommendations

For optimal performance, use with clean, dry air at the recommended pressure range. Always wear appropriate personal protective equipment. This nailer is a reliable choice for professionals seeking efficiency and durability.
