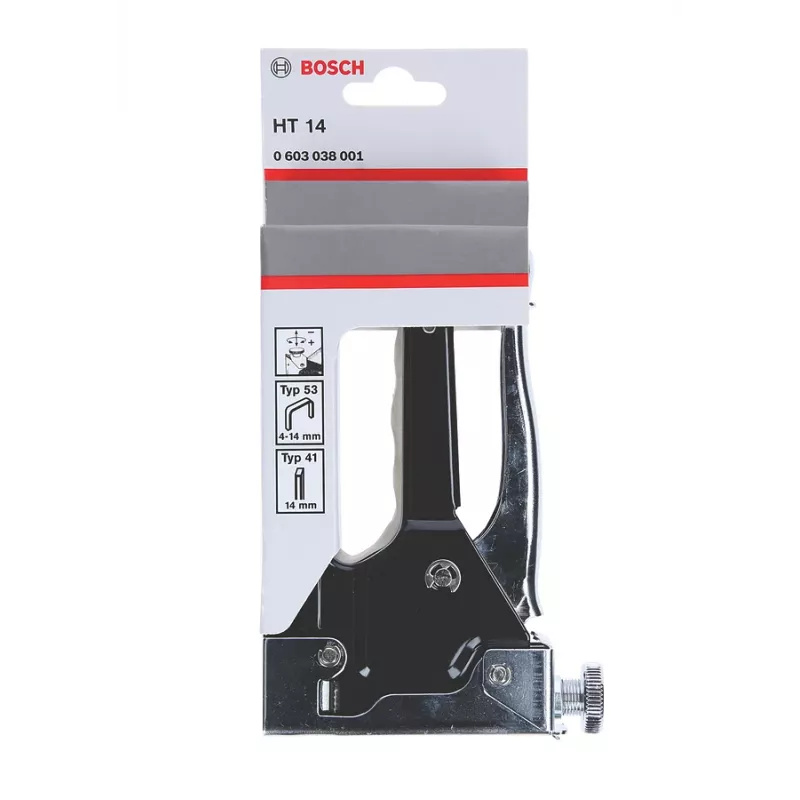

Bosch 0 603 038 001 manual staple gun Black, Stainless steel

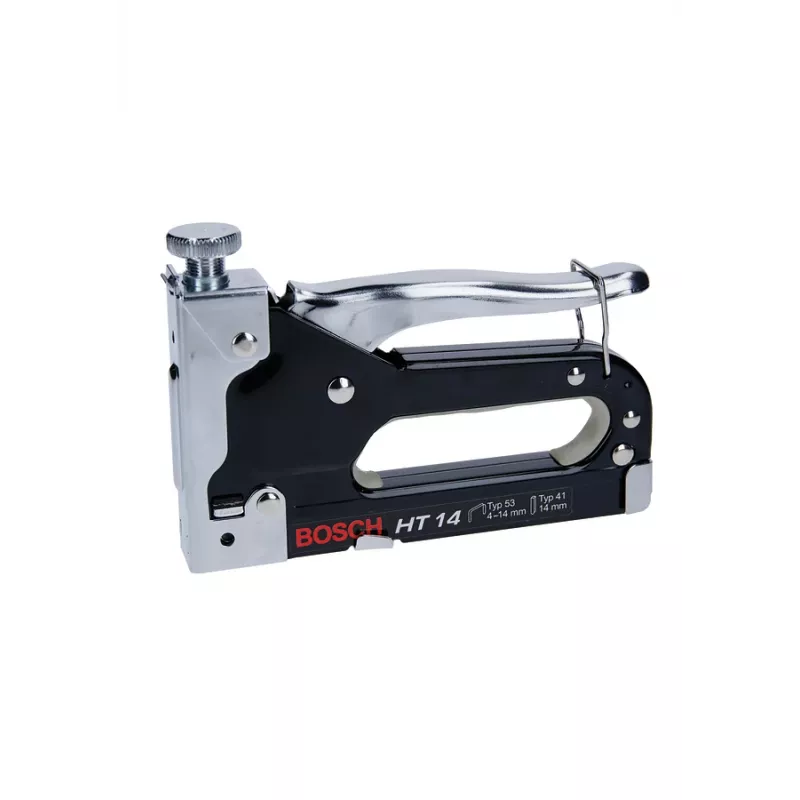

The handheld tacker HT 14 (Bosch 0 603 038 001) is a manual staple gun designed for precise fastening of fabrics, roof felt, foils, insulation materials, woven wires and light upholstery tasks. Constructed from robust, polished steel, it offers an ergonomic padded grip and a grip-lock for safe handling, with compatibility for staples type 53 (4, 6, 8, 10, 12, 14 mm) and pins type 41 (14 mm).

Advantages

The manual staple gun provides continuously variable power adjustment to match material thickness and fastening requirements. Its sturdy polished-steel body ensures durability during repeated use, while the padded grip and grip-lock improve comfort and control. Compatibility with several staple lengths and a dedicated pin type increases versatility for different applications.

Suitable for

• Fixing fabrics and upholstery
• Attaching roof felt and foils
• Securing insulation materials
• Fastening woven wires and mesh
• Light carpentry and DIY fastening tasks

Key specifications

• Brand: Bosch
• Model / MPN: 0 603 038 001
• Construction: polished steel body
• Staple type: 53 (lengths 4, 6, 8, 10, 12, 14 mm)
• Pin type: 41 (length 14 mm)
• Adjustment: continuously variable power
• Features: padded grip, grip-lock
• EAN: 3165140101332

How to use

Load the appropriate staples (type 53) or pins (type 41) into the magazine following the tool’s loading direction. Adjust the power setting to suit the material thickness: lower power for thin fabrics and foils, higher power for thicker insulation or woven wire. Position the tacker perpendicular to the work surface and squeeze the handle firmly to drive the staple or pin. Use the grip-lock to secure the tool when not in use or during transport.

Recommendations

For consistent results, test the power setting on a scrap piece of the same material before starting the main job. Wear eye protection when stapling into dense or rigid materials, and select the staple length so that the crown and legs fully engage the material without protruding excessively on the reverse side.
