Mainboard for Flashforge 3D printers, model AD5X (MPN 20004601001)

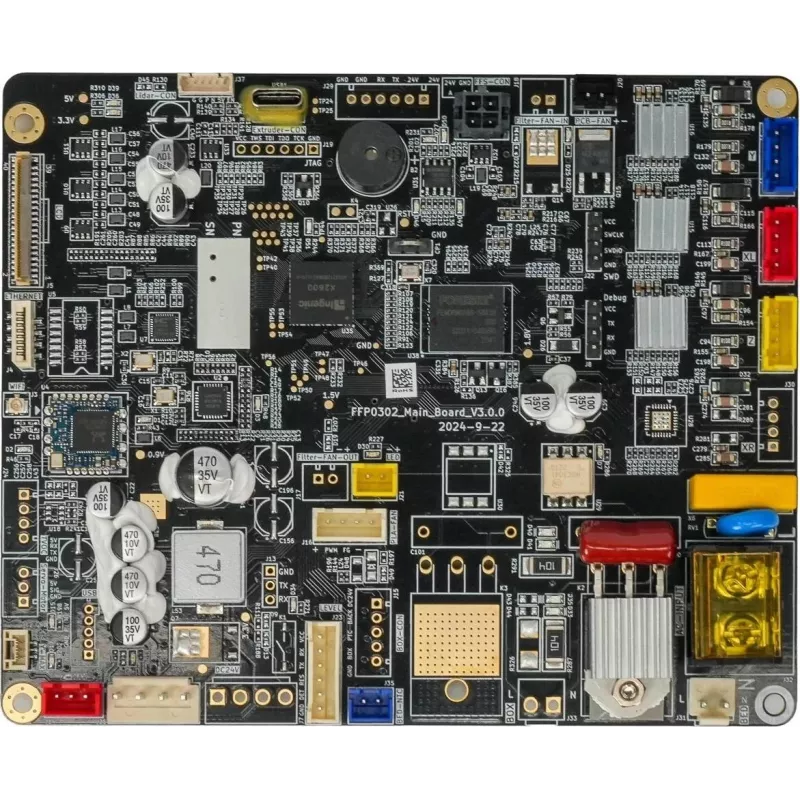

Replacement mainboard AD5X designed for Flashforge 3D printers. This board serves as the primary control unit that manages printer electronics, including stepper motor drivers, heater control, sensor inputs and user interfaces. It is intended for repair or upgrade of compatible Flashforge models to restore printer functionality, address firmware or hardware faults, and maintain consistent print operation.

Advantages

The AD5X mainboard integrates core control functions in a single, compact unit to simplify diagnostics and repair. It supports reliable control of motion and temperature systems, provides standard interfaces for displays and sensors, and is manufactured to match the electrical and mechanical requirements of the compatible Flashforge models. Designed for direct replacement, it reduces downtime and helps avoid extensive wiring changes.

Suitable for

• Repairing Flashforge 3D printers with failed control electronics
• Upgrading a printer to replace faulty or outdated mainboard hardware
• Restoring printers that exhibit erratic motor, heater, or sensor behavior
• Maintenance tasks requiring a known-good control board to isolate faults

Key specifications

• Function: Main control board for Flashforge 3D printers
• Interfaces: Connectors for stepper motors, heaters, thermistors/temperature sensors, endstops and display/interface
• Control: On-board motor driver support for multi-axis stepper control and PWM heater output
• Compatibility: Form-factor and electrical connections designed to match compatible Flashforge models
• Mounting: Standard mounting points to fit original printer chassis

How to use

Power off the printer and disconnect it from the mains before starting replacement. Remove the printer covers to access the original mainboard, document or photograph cable routing and connector positions, then disconnect all harnesses and remove mounting screws. Install the AD5X mainboard in the same orientation, secure it using existing mounting points, and reconnect cables according to the documented positions. Refit panels, reconnect power and perform an initial power-up. Verify sensor readings, motor movement, endstop triggers and heater control before starting a print. If required, update or reflash compatible firmware according to the printer manufacturer’s instructions.

Recommendations

Use static-safe handling when installing the board and ensure all connectors are fully seated. Verify that firmware and configuration match the specific Flashforge model to prevent misconfiguration of motor directions, thermistor types or heater limits. If unsure about firmware or wiring, consult official service documentation or a qualified technician.
