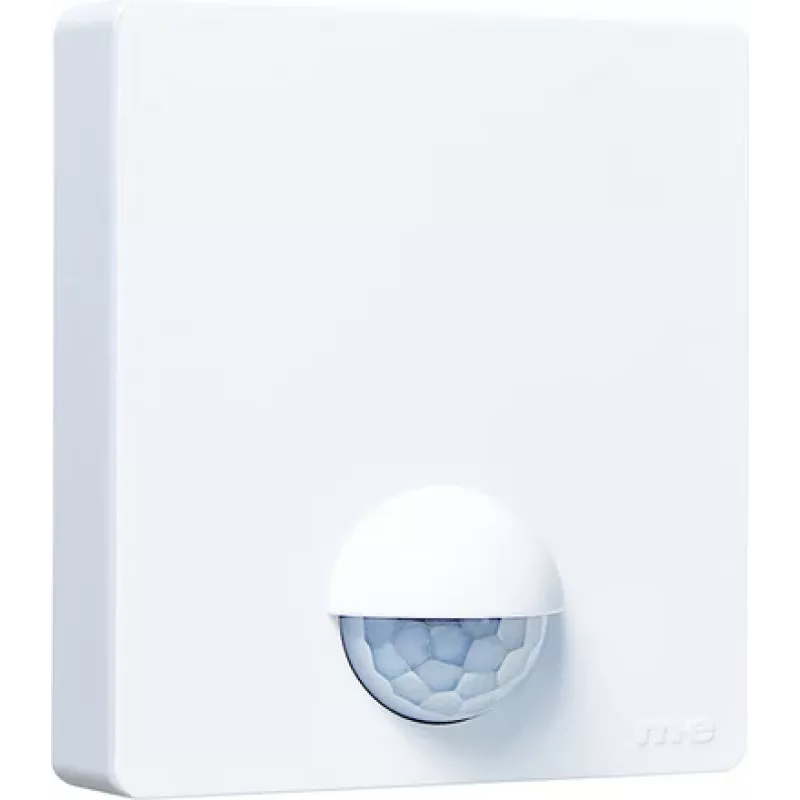

M-E MODERN-ELECTRONICS m-e 41442 Motion Detector 120° White IP54

Secure your driveway, garden path, or entrance area with the M-E MODERN-ELECTRONICS m-e 41442 motion detector. This white PIR sensor switches connected lighting automatically when movement is detected, providing convenience and security around your home. With a 120° detection angle and up to 12 m range, it covers a wide area, while the adjustable time and twilight settings let you customize operation. The IP54 rating ensures reliable performance in outdoor locations.

Key specifications

• Detection technology: Passive Infrared (PIR)
• Detection angle: 120°
• Detection range: up to 12 m
• Recommended mounting height: 1.8 - 2.5 m
• Switching capacity (resistive load): max. 1000 W
• Switching capacity (LED/inductive load): max. 300 W
• Time setting: approx. 10 seconds - 7 minutes (adjustable)
• Twilight setting: approx. 3 - 2000 Lux (adjustable)
• Ingress protection: IP54
• Operating voltage: 230 V AC, 50 Hz
• Colour: White
• Installation type: Surface mount (wall)
• Material: UV-resistant plastic
• Operating temperature: -20°C to +40°C
• Standby power consumption: < 0.5 W

Why choose it

The m-e 41442 combines reliable motion detection with flexible settings. Its adjustable time delay and twilight threshold let you tailor activation to your needs, while the robust IP54 housing withstands weather. It handles both resistive and LED loads, making it suitable for a variety of lighting types.

Ideal use cases

• Automatic outdoor lighting for driveways and entrances
• Security lighting for gardens and pathways
• Energy-saving control of porch or garage lights

Good to know

Install the detector at a height of 1.8 to 2.5 metres for optimal coverage. The UV-resistant plastic housing ensures long-term durability in direct sunlight. For best results, avoid pointing the sensor at heat sources or reflective surfaces.
