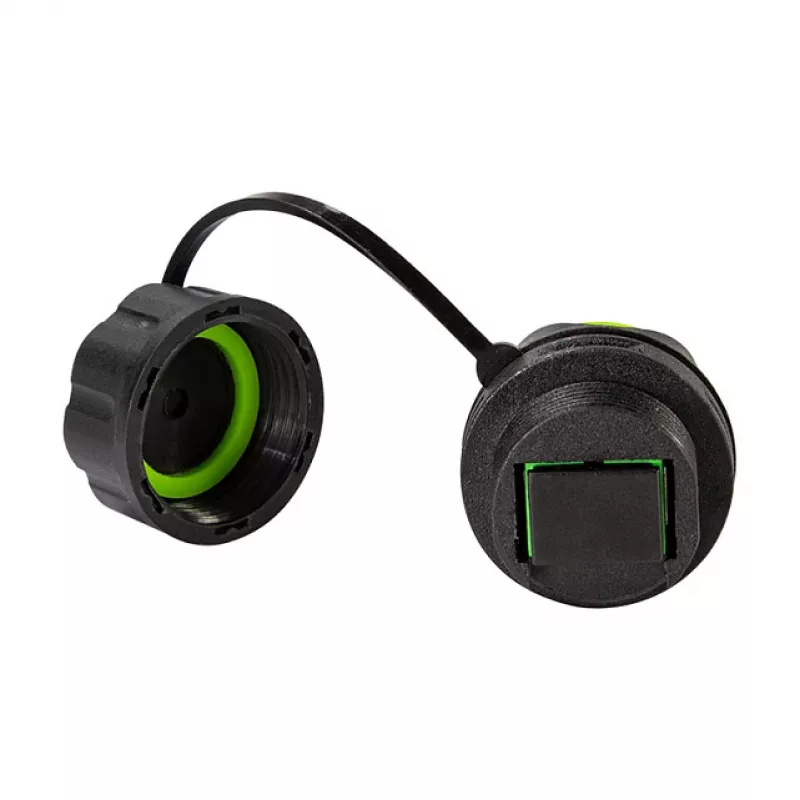

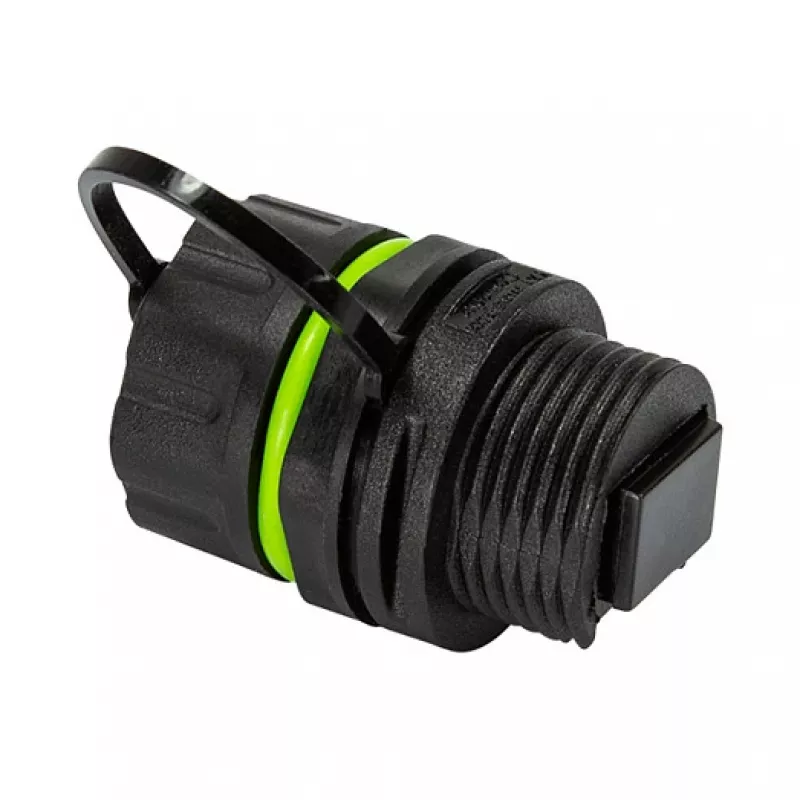

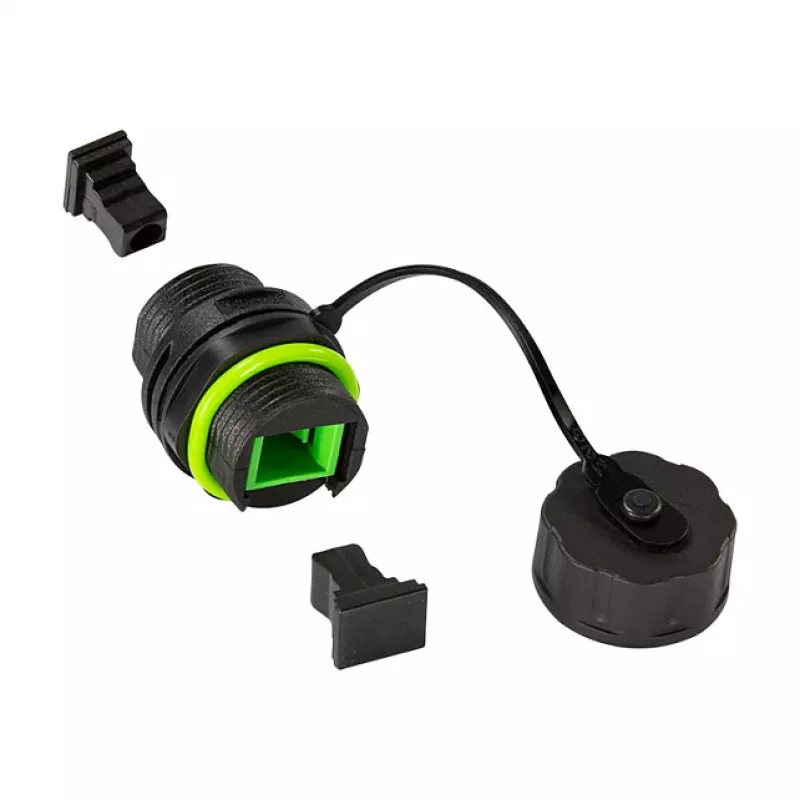

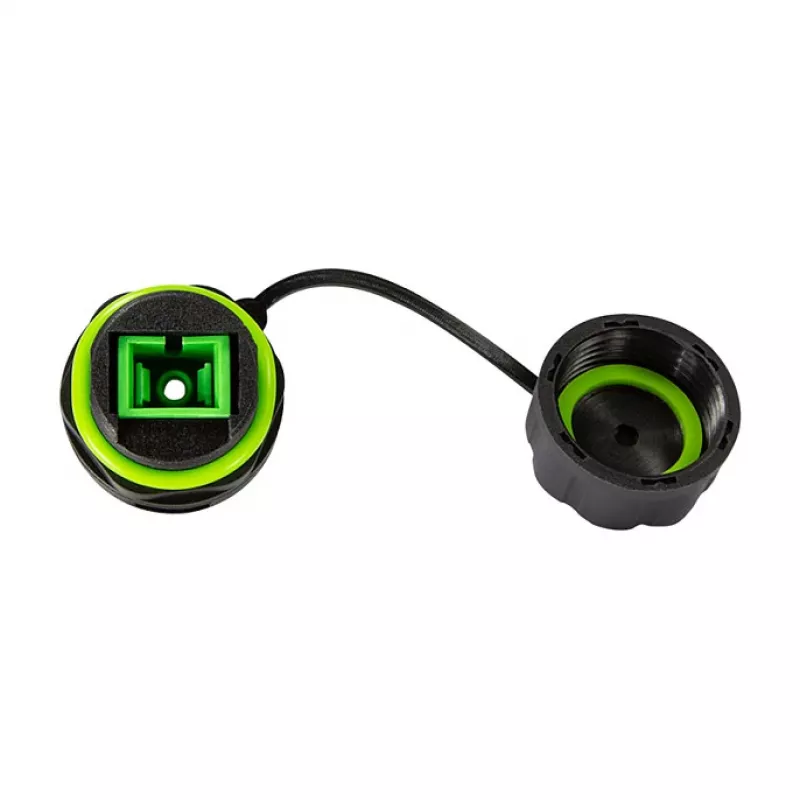

LOGILINK Outdoor Fiber Optic Simplex SC Connector with Dust Cap

Outdoor fiber optic networks face constant threats from moisture, dust, and UV radiation, which can degrade signal quality and lead to costly downtime. The LOGILINK FA05SX1 outdoor simplex SC connector is engineered to solve this problem, providing a durable, IP68-rated termination point for single-mode outdoor cables. Its integrated dust cap shields the precision APC-polished ferrule from contamination when the connector is not in use, ensuring consistent optical performance in the harshest environments.

Who is it for

This connector is ideal for network installers, telecommunication technicians, and industrial integrators who need reliable outdoor fiber terminations for applications such as FTTA, security surveillance, power utilities, and factory floor networks. Whether you are deploying new outdoor infrastructure or repairing existing links, the FA05SX1 offers a dependable solution that withstands extreme temperatures and continuous immersion.

Main features

• SC simplex interface with APC polish for low insertion loss and high return loss
• IP68-rated housing – dust-tight and protected against continuous immersion
• Integrated dust cap protects the ferrule from dirt, moisture, and damage
• UV-resistant PBT housing designed for prolonged outdoor exposure
• Single-mode fiber compatibility for long-distance transmission
• Wide operating temperature range from -40°C to +85°C
• Corrosion-resistant construction for industrial environments
• Zirconia ceramic ferrule ensures precise alignment and durability

Specifications

• Connector type: SC
• Fiber mode: Single-mode
• Polish type: APC (Angled Physical Contact)
• Fiber count: Simplex
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 60 dB
• IP rating: IP68
• Housing material: UV-resistant PBT
• Ferrule material: Zirconia ceramic
• Operating temperature: -40°C to +85°C
• Durability: > 500 mating cycles
• Environmental compliance: RoHS, REACH

Tips

When terminating outdoor cables, always use a proper outdoor-rated splice closure or heat-shrink kit to maintain the IP68 integrity of the connection. Keep the dust cap securely installed during handling, storage, and cable pulls to avoid contamination of the optical end face.
