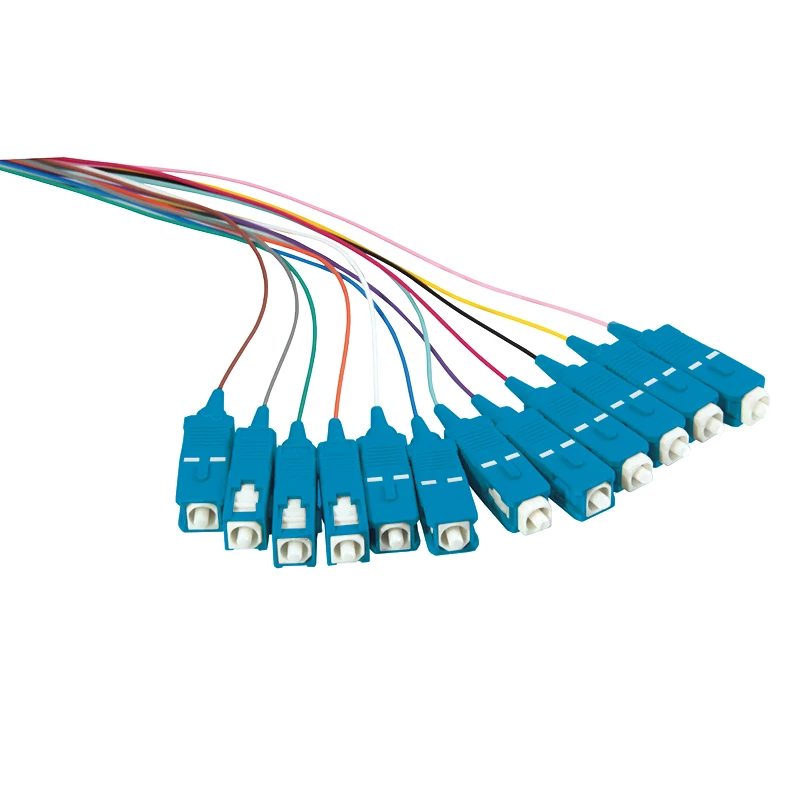

LogiLink FL0SC02 Fiber Pigtail Set, 12x SC/UPC OS2 Single-mode, 2m, 12-Colour Coded, LSZH, Blue Connectors

LogiLink FL0SC02 Fiber Pigtail Set, 12x SC/UPC OS2 Single-mode, 2m, 12-Colour Coded, LSZH, Blue Connectors
LogiLink FL0SC02 Fiber Pigtail Set, 12x SC/UPC OS2 Single-mode, 2m, 12-Colour Coded, LSZH, Blue Connectors
R411
With a typical insertion loss of ≤ 0.3 dB and return loss ≥ 50 dB, this 12-fiber OS2 single-mode pigtail set delivers exceptional signal integrity for high-speed optical networks. Each 2-meter pigtail features a blue SC/UPC connector and a 9/125 µm core/cladding, meeting TIA/EIA-598-C color coding f... Read More
Stock 53 Code 3331027 Brand LOGILINK Model FL0SC02 Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

With a typical insertion loss of ≤ 0.3 dB and return loss ≥ 50 dB, this 12-fiber OS2 single-mode pigtail set delivers exceptional signal integrity for high-speed optical networks. Each 2-meter pigtail features a blue SC/UPC connector and a 9/125 µm core/cladding, meeting TIA/EIA-598-C color coding for easy identification.

Overview

The LogiLink FL0SC02 is a professional-grade fiber pigtail set comprising 12 individual OS2 single-mode pigtails, each 2 meters long. Designed for splicing into patch panels, ODFs, and telecommunication networks, these pigtails provide a reliable connection between fiber optic cables and equipment. The SC/UPC connectors feature zirconia ceramic ferrules for precise alignment and durability, while the LSZH jacket ensures low smoke and zero halogen emissions in case of fire.

What stands out

  • 12-color coded pigtails following TIA/EIA-598-C for easy fiber identification.
  • Low insertion loss (≤ 0.3 dB) and high return loss (≥ 50 dB) for optimal performance.
  • LSZH jacket material for enhanced safety in enclosed spaces.
  • Blue SC/UPC connectors with zirconia ceramic ferrules for long-term reliability.
  • Wide operating temperature range from -20°C to +70°C.

Technical details

  • Fiber type: OS2 single-mode, 9/125 µm core/cladding.
  • Number of fibers: 12 (individual pigtails).
  • Connector type: SC/UPC, blue color.
  • Pigtail length: 2 meters each.
  • Jacket material: LSZH (Low Smoke Zero Halogen).
  • Cable diameter: 0.9 mm tight buffer.
  • Ferrule material: Zirconia ceramic.
  • Insertion loss: ≤ 0.3 dB.
  • Return loss: ≥ 50 dB.
  • Operating temperature: -20°C to +70°C.
  • Storage temperature: -40°C to +85°C.
  • Compliance: RoHS, REACH.

Our verdict

An excellent choice for structured cabling projects requiring reliable, colour-coded single-mode pigtails with top-tier optical performance.

Specifications
Brand
LogiLink
Cable diameter
0.9 mm
Cable length
2 m
Cable type
Fibre optic
Category
Fibre Pigtail
Cladding diameter
125 µm
Compliance certificates
RoHS, REACH
Connector 1
SC
Connector 1 gender
Male
Connector 2
Open End
Connector polish type
UPC
Core diameter
9 µm
EAN
4052792019872
Fiber mode structure
Single-mode
Fibre optic type
OS2
Insertion loss
≤ 0.3 dB
Jacket material
LSZH
Model
FL0SC02
MPN
FL0SC02
Operating temperature (T-T)
-20°C to +70°C
Quantity per pack
12
Return loss
≥ 50 dB
Storage temperature (T-T)
-40°C to +85°C
