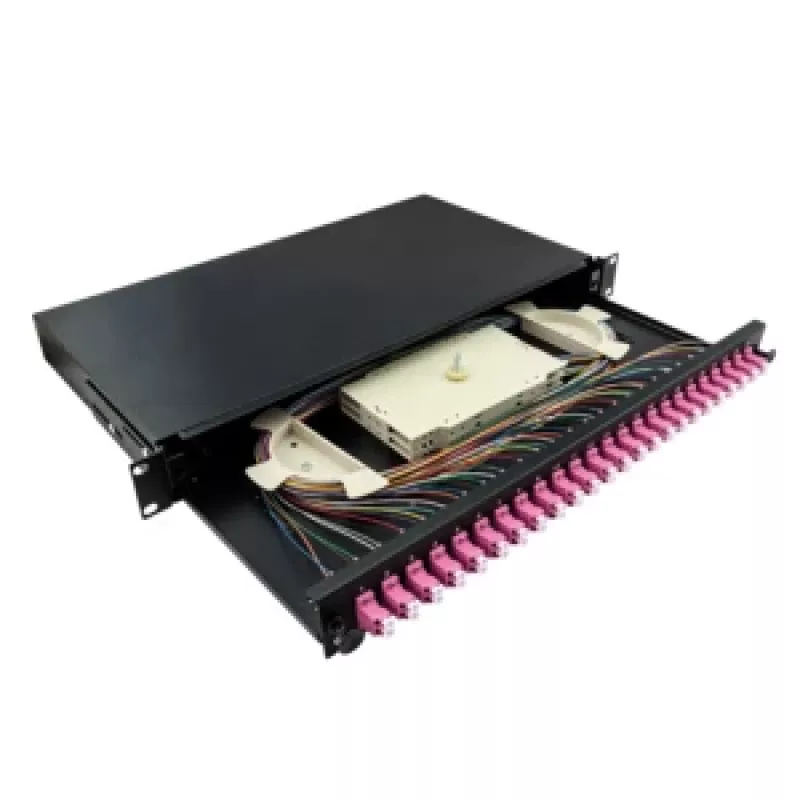

LogiLink 19 inch 1U 24-Port LC Duplex OM4 Multimode Splice Box Patch Panel, Black

Low insertion loss under 0.3 dB and return loss above 30 dB make this splice box a reliable backbone for high-speed fiber networks. The LogiLink 19" 1U splice box is a fully equipped patch panel for LC Duplex multimode OM4 fiber optic connections, offering 24 ports that accommodate up to 48 fibers.

Overview

Featuring 24 LC Duplex ports with ceramic sleeves and OM4 multimode compatibility, this LogiLink splice box delivers low insertion loss under 0.3 dB and return loss above 30 dB for high-speed fiber networks. Its 1U 19-inch rack-mount design and powder-coated steel housing make it a robust choice for data centers and server rooms. The unit includes two splice trays, cable ties, and mounting screws, with multiple rear cable entry points to simplify installation and cable management.

What stands out

• 24 LC Duplex ports with ceramic adapter sleeves for reliable connections
• Supports OM4 multimode fiber for 10/40/100 GbE applications
• Low insertion loss (<0.3 dB) and high return loss (>30 dB)
• Durable powder-coated steel housing in black (RAL 9005)
• Includes splice trays, cable ties, and mounting screws
• 1U height fits standard 19-inch racks

Technical details

• Rack height: 1U
• Rack width: 19 inch
• Connector type: LC Duplex
• Number of ports: 24
• Fiber capacity: 48 fibers
• Fiber mode: Multimode
• Fiber class: OM4
• Insertion loss: < 0.3 dB
• Return loss: > 30 dB
• Operating temperature: -20°C to +70°C
• Material: Powder-coated steel
• Adapter sleeve material: Ceramic
• Included accessories: 2x splice trays, cable ties, mounting screws
• Application: Indoor, data centers, server rooms

Our verdict

A reliable and well-built splice box for high-density multimode fiber installations, offering excellent optical performance and easy cable management in a compact 1U form factor.
