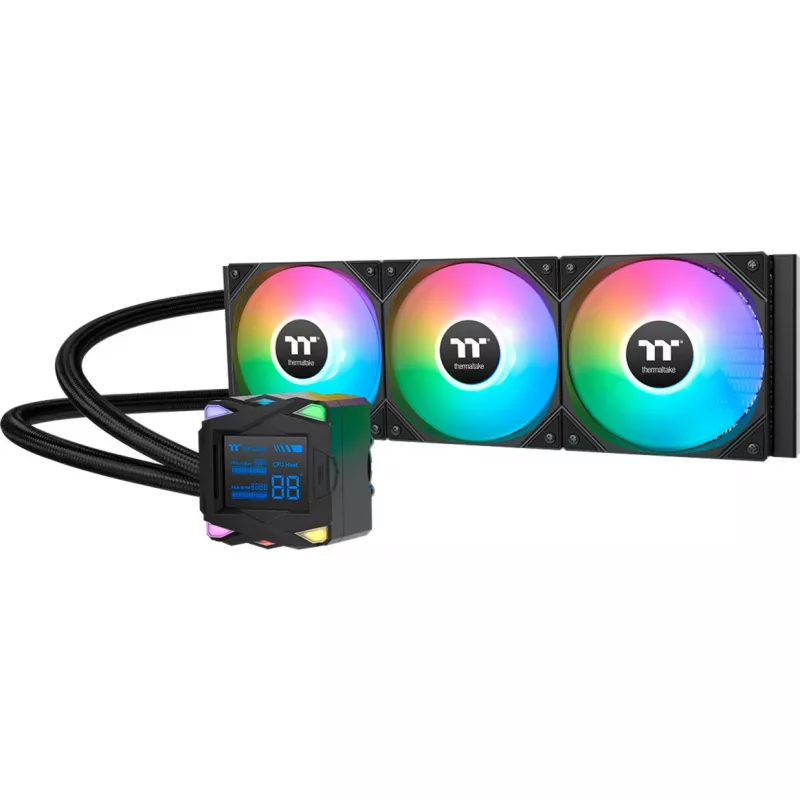

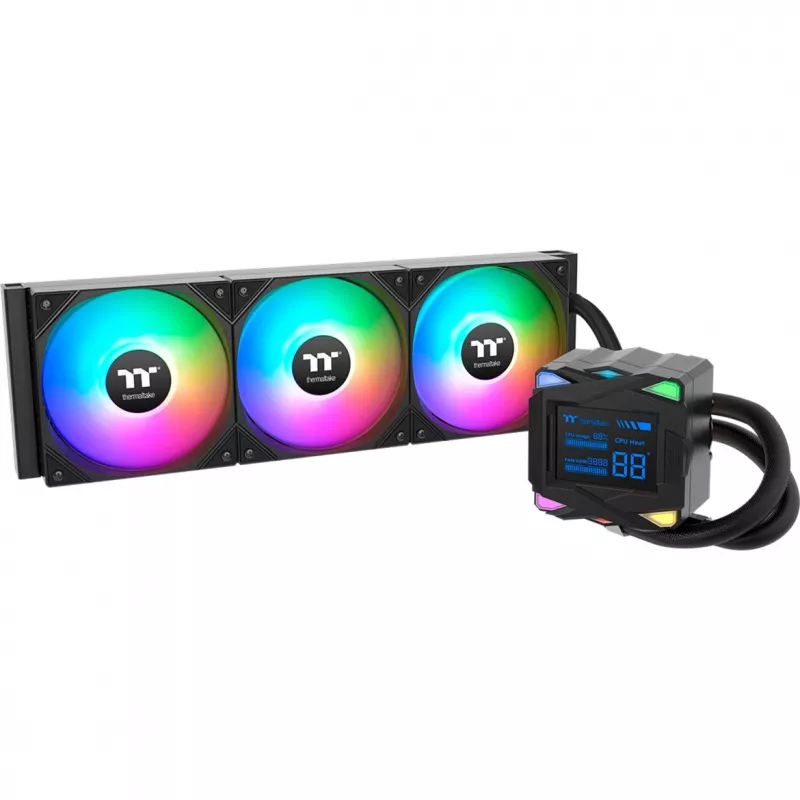

Liquid cooling kit Thermaltake LA360-S ARGB 12 cm Black

The LA360-S ARGB Sync AIO Liquid Cooler features a Gaming-Style RGB water block with a 2.4” segment LCD that shows real-time CPU temperature, CPU usage and fan speed. The cooler includes three pre-installed 120 mm ARGB PWM fans up to 2500 RPM, a slim 27 mm radiator with a 20 mm thickened copper chamber, and a large copper base plate. The design includes a magnetic top cover on the water block, daisy-chain fan connections and compatibility with 5V addressable RGB motherboard software for simplified installation and tidy cable management.

Advantages

The 2.4” segment LCD provides clear system information directly on the water block while the magnetic top cover allows easy access for installation or customization. Three high-performance 120 mm ARGB fans offer strong airflow and static pressure for effective heat dissipation, and anti-vibration rubber pads on each fan corner reduce vibration and allow stable high-speed operation. The large copper base and reliable pump ensure efficient heat transfer and continuous coolant circulation with low evaporation, avoiding frequent refills. Pre-installed fans and a daisy-chain ARGB/power design reduce cable clutter and require only one 4-pin PWM and one 3-pin ARGB connection to the motherboard.

Key specifications

• Fans: 3 × 120 × 120 × 25 mm PWM ARGB, up to 2500 RPM
• Fan performance: 79.3 CFM, 3.45 mm-H2O static pressure, 38.35 dB-A noise

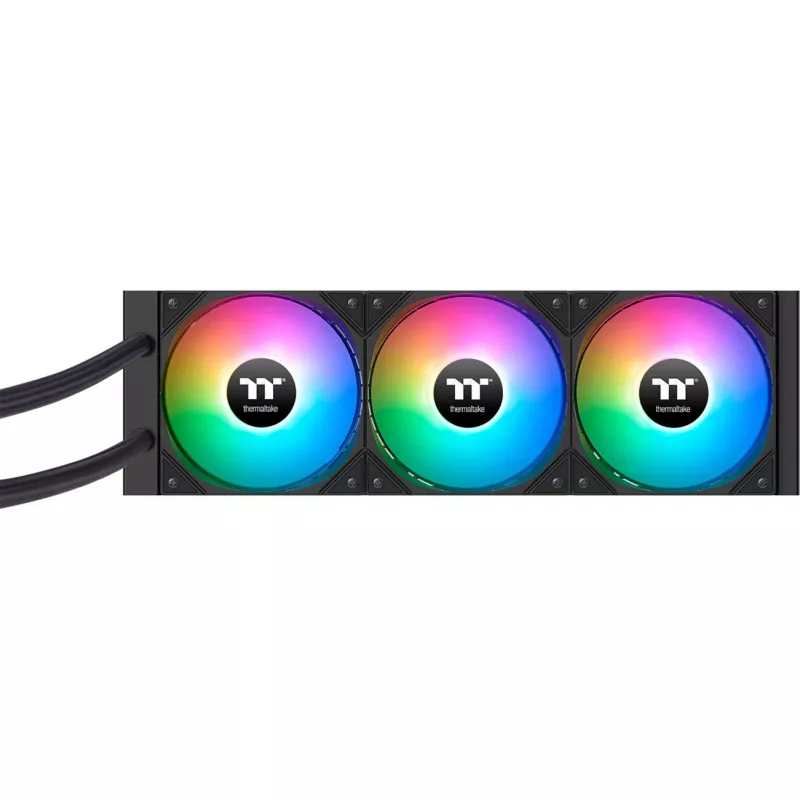

• Radiator: 27 mm slim profile with 20 mm thickened copper chamber

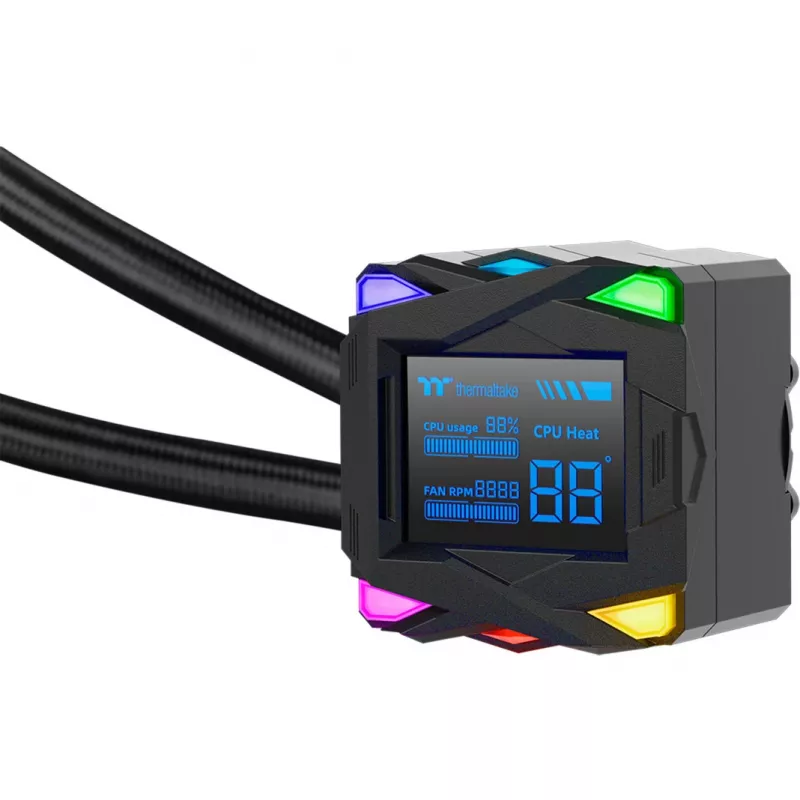

• Water block: Gaming-style RGB with 2.4” segment LCD, magnetic top cover

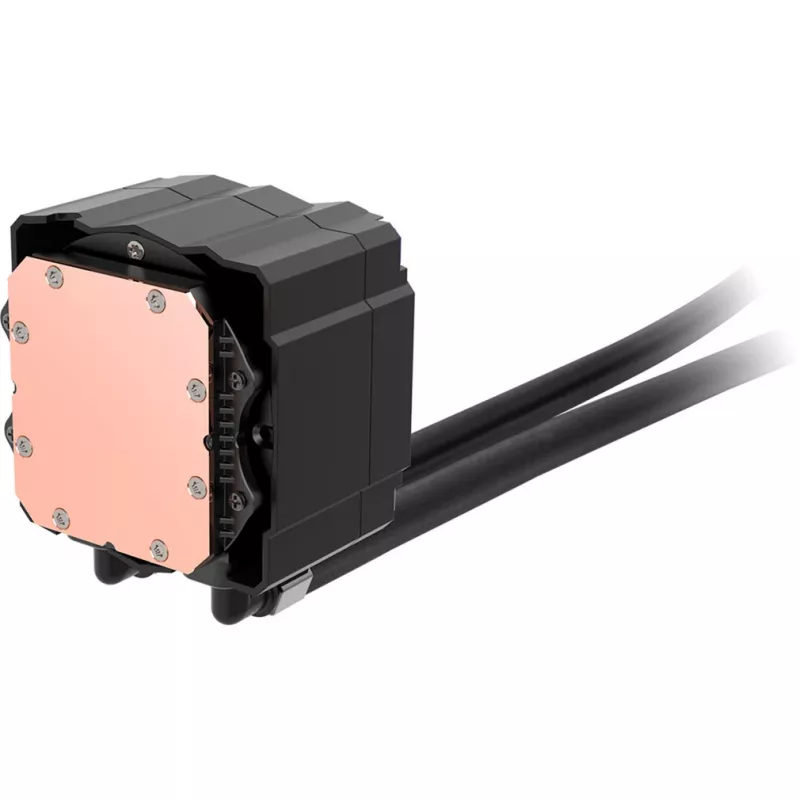

• Base plate: large copper base
• Connections: daisy-chain design; requires one 4-pin PWM and one 3-pin 5V ARGB header
• Compatibility: Intel LGA1150/1151/1155/1156/1200/1700/1851/2011/2011‑v3/2066; AMD Socket AM3/AM3+/AM4/AM5
• Color: Black
• Package quantity: 1 pc

How to use

Mount the radiator and pre-installed fans into your case following the orientation recommended for optimal airflow. Install the water block on the CPU with the supplied mounting hardware and ensure the magnetic top cover is correctly seated. Connect the fans using the integrated daisy-chain wiring, plug the single 4-pin PWM cable into the motherboard fan header and the single 3-pin 5V ARGB cable into a compatible addressable RGB header. Power on the system, verify pump and fan operation, and use your motherboard RGB software (ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light or ASRock Polychrome) to control lighting and check the segment LCD for real-time monitoring.

Recommendations

For best cooling performance and quiet operation, mount the radiator where it can receive unimpeded airflow, ensure all fan screws and anti-vibration pads are installed, and connect the ARGB header on a 5V addressable RGB port. Refer to your motherboard manual for header locations and to the cooler manual for detailed mounting steps.
