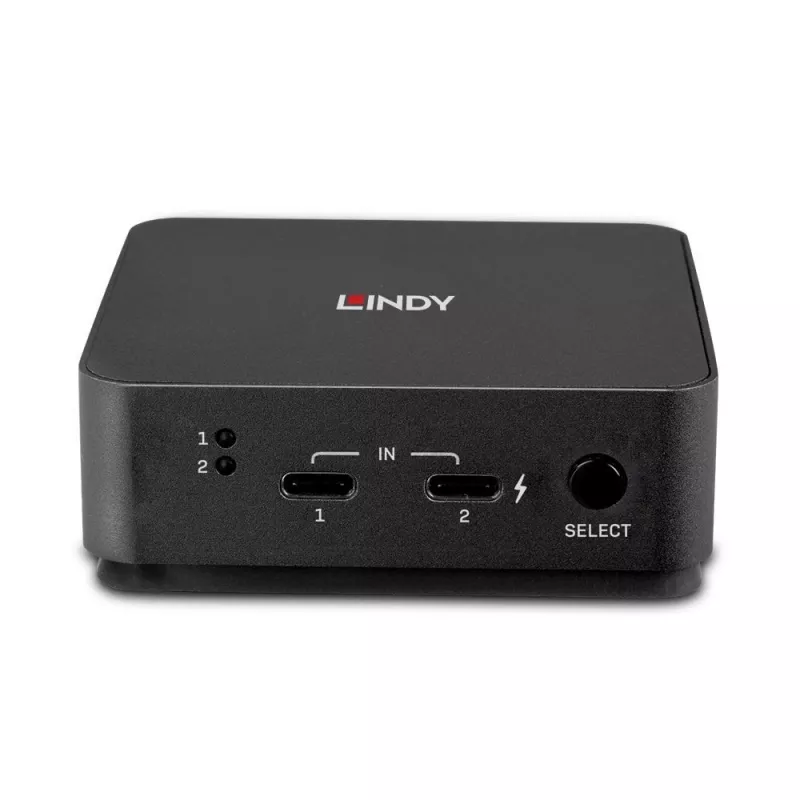

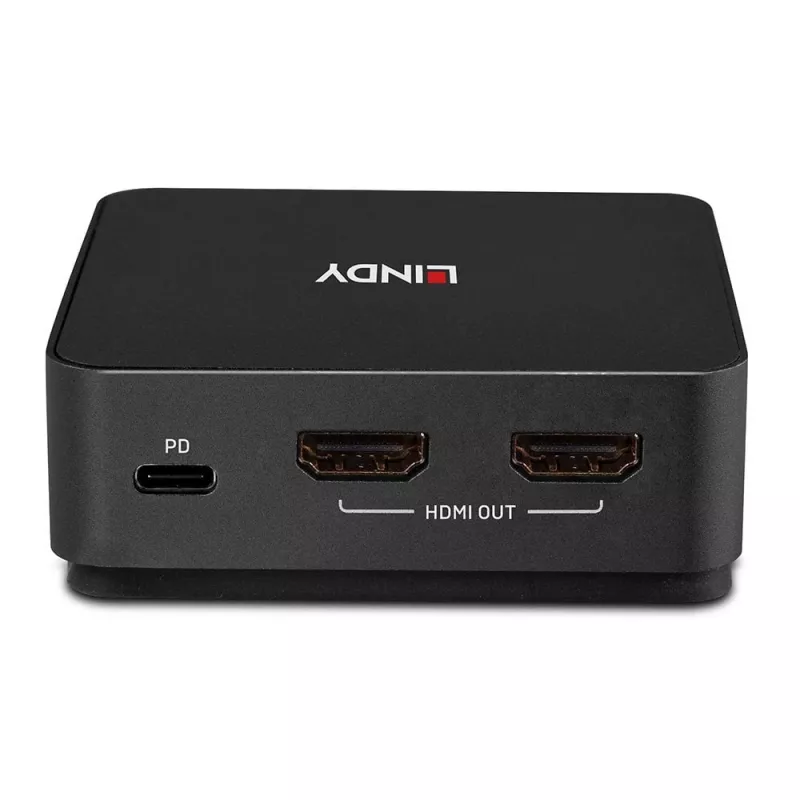

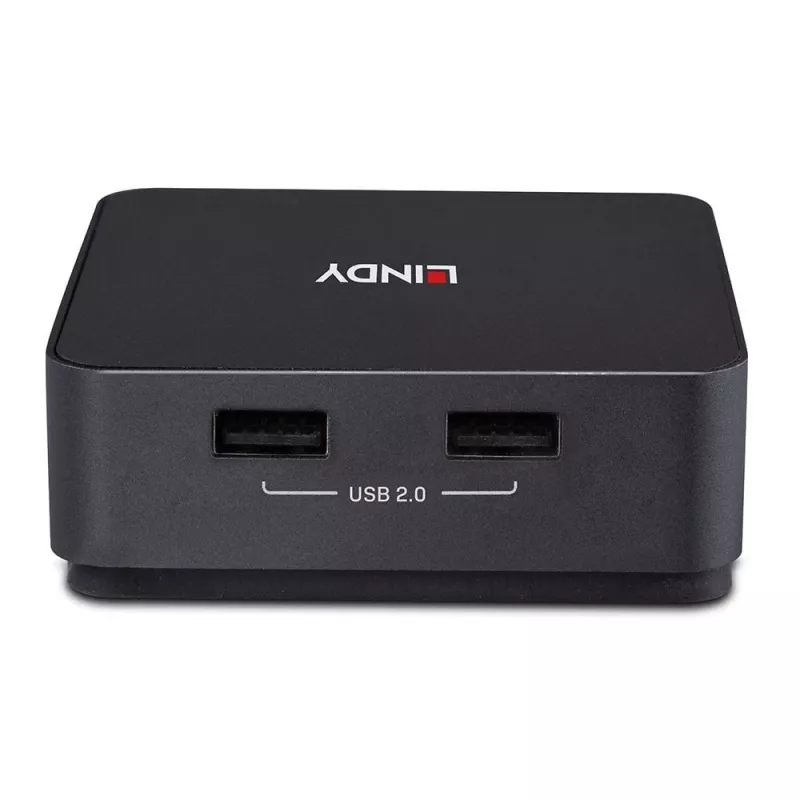

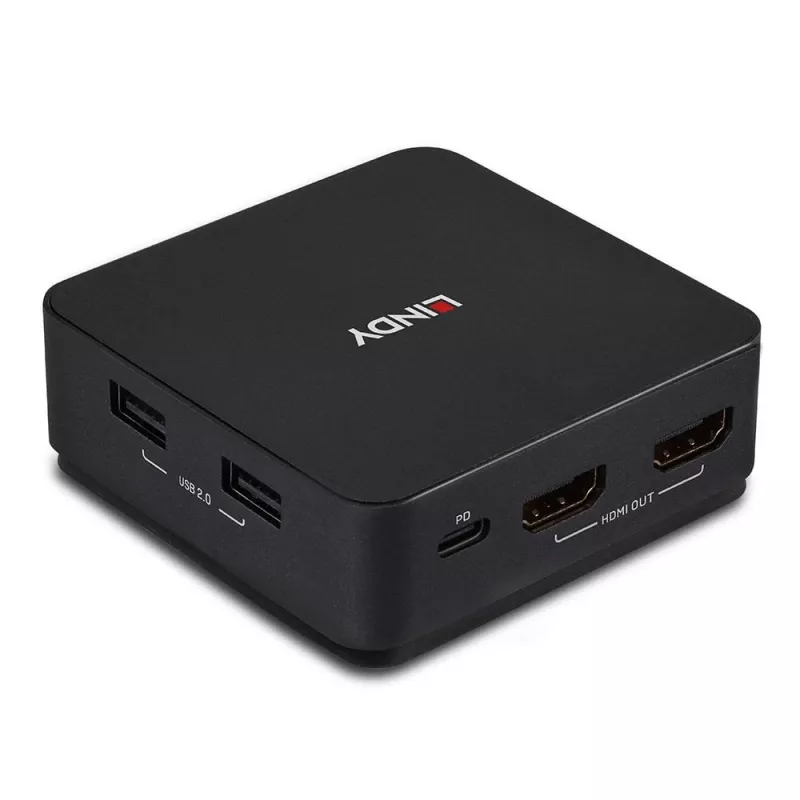

Lindy 2 Port Type C, Dual HDMI 4K60 KVM Switch

The Lindy 2 Port Type C, Dual HDMI 4K60 KVM Switch is a compact solution for providing access and control over two Type C equipped devices with from a console with keyboard, mouse and two displays. It's an Ideal solution for flexible, plug and play workstations, allowing users to control multiple laptops, or a single laptop and another Type C device such as a mobile phone or tablets with Type C DisplayPort Alt Mode interface.

Support for Ultra HD resolutions up to 4K30Hz connecting both outputs, and 4K60Hz connecting one to ensure optimum image quality, perfect for high fidelity graphics in gaming setups, video editing or dual system control workstations. Additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts, and a much wider colour gamut. MST and SST functions allow the connection of two displays with extended desktop or in mirror mode while additional USB peripherals can be connected via the 2 ports USB 2.0.

Connecting an additional Type C power supply (optional, not included) ensures host device on port 2 can be powered and charged through the 100W Type C Power Delivery 3.0 input port. Perfect when mains power outlets are in short supply, and improves cable management for minimalist installations.

This device switches automatically when only one active source is connected, while when multiple devices are connected, switching is also possible by pushing the select button on the front panel for simple and reliable control, great for both professional and first-time users.

Please Note: Type C sources must support DisplayPort Alternate mode for video output, smartphones and tablets can only display a mirror image. Fast Role Swap feature is not supported.

Lindy 2 Port Type C, Dual HDMI 4K60 KVM Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels. Product colour: Grey, Housing material: Metal. Power source: USB, Input voltage: 7.5 V, USB Power Delivery up to: 100 W. Compliance certificates: CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA

How to use

Connect each Type-C host that supports DisplayPort Alternate Mode to the device's Type-C inputs, and attach two HDMI monitors to the HDMI outputs. Plug a USB keyboard and mouse into the USB 2.0 ports. If required, connect an external Type-C power adapter to the PD input to provide up to 100W charging to the device on port 2. The switch will automatically select the active source if only one host is powered; when multiple hosts are connected use the front-panel select button to switch between sources.

Recommendations

Ensure each Type-C source supports DisplayPort Alternate Mode for video output; smartphones and tablets may only mirror the display. Fast Role Swap is not supported. Use a compliant 100W Type-C power adapter if you need to charge a connected host through the PD input, and use high-quality HDMI cables rated for 4K60 where single-display 4K60 performance is required.
