LIN LIFDN2WH Bottom-Connected Electric Boiler 10 L White

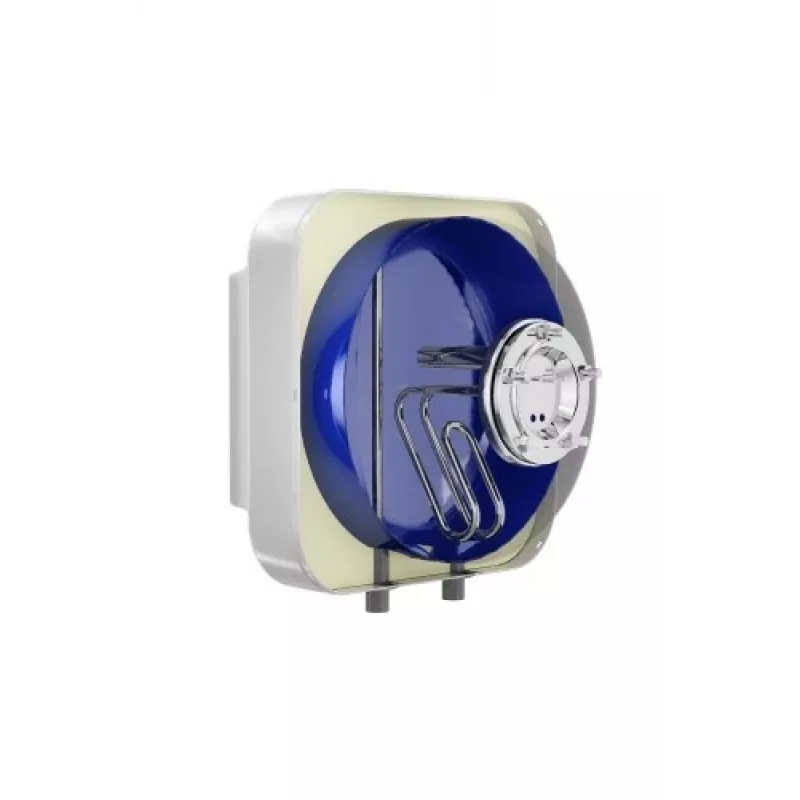

Under a kitchen sink or in a compact utility room, the LIN LIFDN2WH 10-litre electric boiler delivers hot water exactly where it’s needed—no long pipe runs, no waiting for a central system to heat up. This bottom-connected storage water heater tucks neatly into cabinetry, freeing up wall space while providing a steady supply for handwashing, dish rinsing, or light cleaning tasks. The white enamel-coated steel tank is protected by high-density polyurethane foam insulation, keeping standby losses low and water hot for longer. A mechanical thermostat gives you direct control over the temperature range from 30°C to 75°C, while the 2000 W copper heating element brings a full tank from cold to 45°C above inlet in roughly 18 minutes. Safety is built in with overheat protection and frost protection, and the IP24 rating means it can handle splashes in a typical under-sink environment. With a maximum operating pressure of 6 bar and standard G 1/2" water connections, installation is straightforward for any qualified plumber.

Key specifications

• Capacity: 10 litres
• Power: 2000 W at 230 V / 50 Hz
• Energy efficiency class: B
• Max operating pressure: 6 bar (0.6 MPa)
• Temperature range: 30–75 °C
• Heating element: copper
• Inner tank: enamel-coated steel
• Insulation: high-density polyurethane foam
• IP rating: IP24
• Water connection: G 1/2"
• Heating time (ΔT=45°C): approx. 18 min
• Mounting: wall-mounted, under-sink

Why choose it

The bottom-connected design means all plumbing stays hidden below the unit, making it ideal for under-sink installations where space is tight and aesthetics matter. The enamel-coated steel tank resists corrosion, and the copper heating element transfers heat quickly and evenly. With an energy efficiency class B and effective insulation, it balances performance with reasonable running costs. The mechanical thermostat is simple and reliable—no complex electronics to fail—and the overheat and frost protection features add peace of mind in unheated spaces or during cold snaps.

Ideal use cases

• Under-sink hot water in kitchens, utility rooms, or workshops
• Supplementing a central hot water system in remote taps
• Small offices or studios needing a compact point-of-use heater
• Caravans or mobile units where a 10-litre storage tank is sufficient

Good to know

This boiler is designed for wall mounting under a sink, so check the available space and plumbing alignment before purchase. It requires a 230 V electrical connection and should be installed by a qualified professional. Regular maintenance, such as checking the anode rod (if applicable) and descaling in hard-water areas, will extend the life of the tank and heating element. The white finish blends with most cabinetry and is easy to wipe clean.
