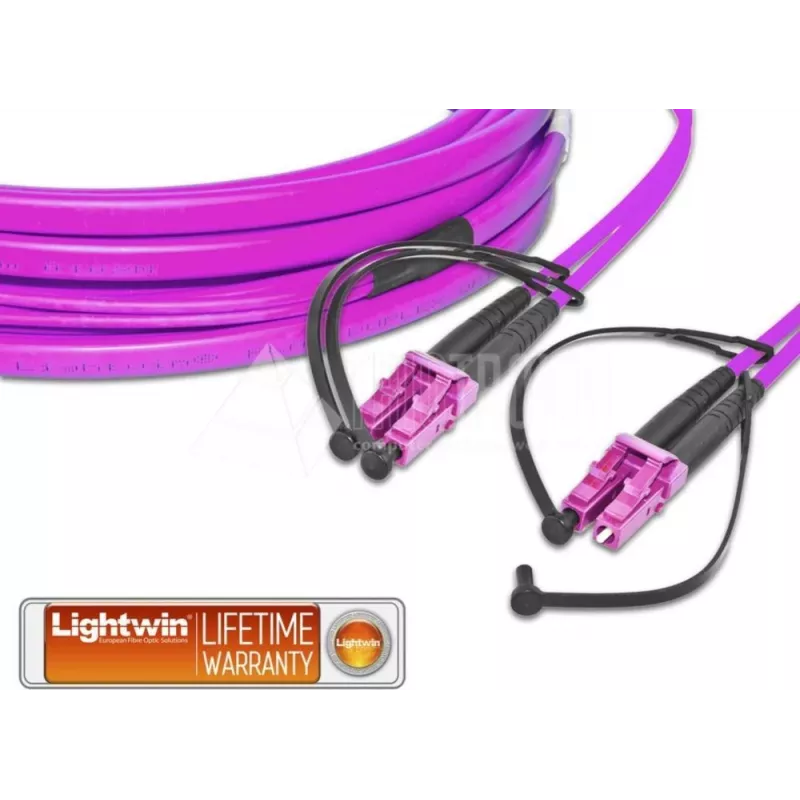

LIGHTWIN LDP-50 LC-LC 2.0m OM4 Flat Duplex Fiber Optic Patch Cable LDP-50 LC-LC 2.0 OM4 FD

For high-density fiber installations where space is tight and performance cannot be compromised, the LIGHTWIN LDP-50 LC-LC 2.0m OM4 Flat Duplex Patch Cable stands apart from conventional round cables. Its flat LSZH jacket allows for cleaner cable management in racks and patch panels, reducing clutter and improving airflow. Built with premium OM4 multimode fiber, this 2-meter duplex cable delivers exceptional bandwidth and low attenuation, making it ideal for 10G, 40G, and even 100G Ethernet applications over short distances. The LC connectors on both ends ensure a secure, low-loss connection, while the duplex clip maintains polarity for easy installation.

Highlights

• Flat duplex design for space-saving, tangle-free routing
• OM4 laser-optimized multimode fiber (50/125 µm)
• LC to LC connectors with duplex clip
• LSZH (Low Smoke Zero Halogen) jacket for safety
• Low insertion loss: < 0.3 dB typical
• Supports 10/40/100 Gigabit Ethernet
• 2.0 meter length, ideal for patching

In daily use

This patch cable is engineered for data centers, enterprise networks, and high-speed storage area networks. The flat profile allows multiple cables to be stacked neatly, reducing the footprint in crowded cable trays. The LSZH jacket emits minimal smoke and no halogen gases in case of fire, making it suitable for enclosed spaces. With a bend radius of only 30 mm, it can be routed around corners without performance loss. The duplex clip ensures that transmit and receive fibers are kept in correct orientation, preventing polarity errors during installation.

Full specifications

• Cable Type: Fiber Optic Patch Cable, Duplex
• Fiber Class: OM4 Multimode
• Core/Cladding Diameter: 50/125 µm
• Connector A: LC
• Connector B: LC
• Cable Length: 2.0 m
• Jacket Material: LSZH
• Cable Structure: Flat Duplex
• Insertion Loss (Typical): < 0.3 dB
• Return Loss (Typical): > 20 dB
• Attenuation @ 850 nm: 2.3 dB/km
• Attenuation @ 1300 nm: 0.6 dB/km
• Bandwidth @ 850 nm: 4700 MHz·km (OFL) / 3500 MHz·km (EMB)
• Bandwidth @ 1300 nm: 500 MHz·km (OFL)
• Minimum Bend Radius: 30 mm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3, ISO/IEC 11801

Final note

Choose the LIGHTWIN LDP-50 for a reliable, high-performance fiber link that simplifies cable management without sacrificing signal integrity.
