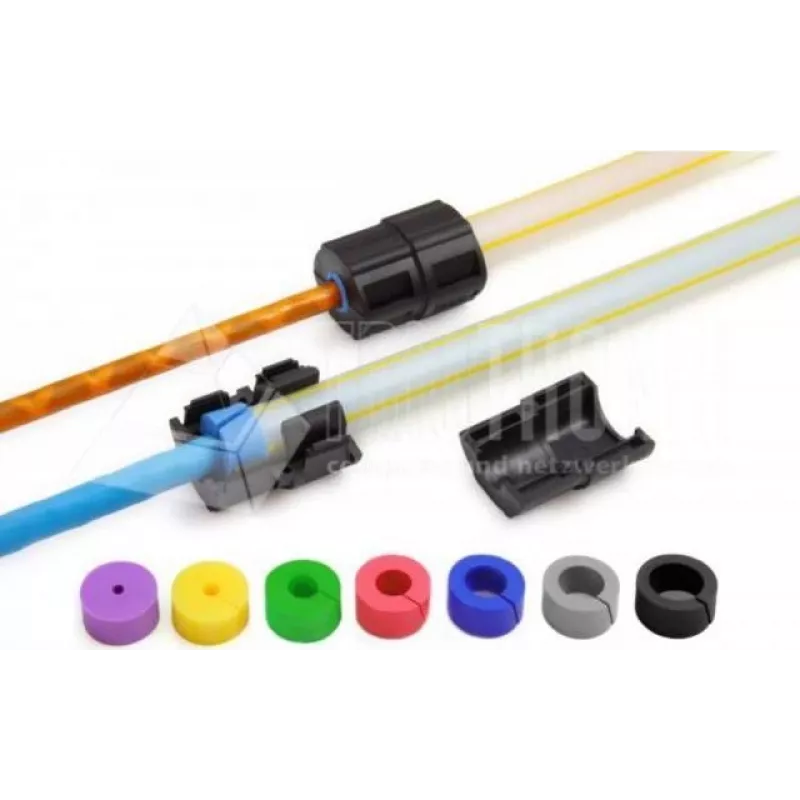

Lightwin DC 10MM SEAL 6.5-5MM Split Single Cable Duct Seal for 10mm FTTx Ducts, 5.0-6.5mm Cable Diameter, IP68, Black

Unsealed duct entries in FTTx networks invite water, dust, and pests, leading to signal degradation and costly maintenance. The Lightwin DC 10MM SEAL 6.5-5MM split cable duct seal provides a reliable, tool-free solution for sealing single cables in 10mm ducts, accommodating cable diameters from 5.0 to 6.5 mm. Its split design allows installation on pre-terminated cables without disconnection, ensuring a watertight IP68-rated barrier that protects your network infrastructure.

Who is it for

This seal is engineered for telecom technicians, network installers, and maintenance crews working on FTTx deployments, including FTTH and FTTB projects. It is ideal for both new installations and retrofits where cables are already in place, offering a quick and effective sealing method without the need for specialized tools or cable disconnection.

Main features

• Split design enables installation on pre-terminated cables without disconnection.
• IP68 environmental protection against dust and water ingress.
• Compatible with 10mm ducts and cable diameters from 5.0 to 6.5 mm.
• Tool-free snap-on installation for fast and secure sealing.
• High-grade EPDM polymer construction for durability and chemical resistance.
• Provides strain relief and corrosion resistance for long-term reliability.
• Reusable if undamaged, reducing replacement costs.

Specifications

• Product type: Split cable duct seal
• Application: FTTx networks
• Duct diameter compatibility: 10 mm
• Cable entry configuration: Single entry
• Cable diameter range: 5.0 mm - 6.5 mm
• Material: High-grade polymer (EPDM)
• Environmental protection rating: IP68
• UV resistance: Yes
• Operating temperature range: -40°C to +60°C
• Pressure resistance: Up to 0.5 bar
• Chemical resistance: Yes (resistant to common soil chemicals)
• Colour: Black
• Compliance: RoHS, REACH

Tips

For optimal sealing performance, ensure the duct and cable surfaces are clean and dry before installation. Press the seal firmly into the duct until it snaps into place, and verify that the cable is centered within the seal to prevent stress points. The seal can be removed and reinstalled if adjustments are needed, provided it has not been damaged.
