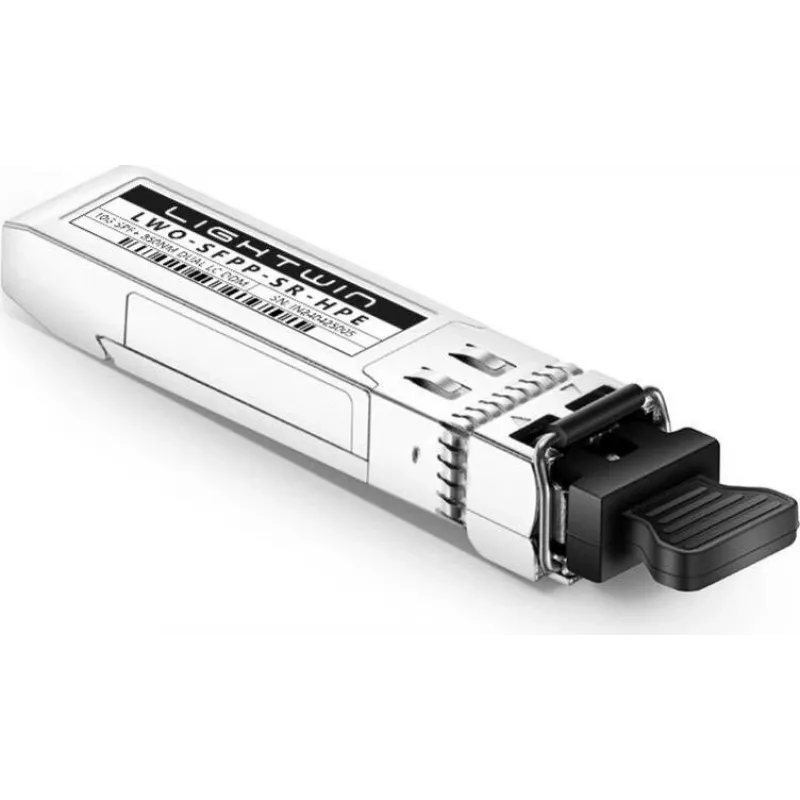

Lightwin 10G SFP+ SR Transceiver, 850nm, 300m, DDM, LC Duplex, Multimode, HP Aruba Compatible (LWO-SFPP-SR-HPE)

Data centre bottlenecks and sluggish server interconnects often stem from inadequate optical modules. The Lightwin LWO-SFPP-SR-HPE is a 10 Gigabit SFP+ transceiver engineered for short-range multimode fibre links up to 300 metres. It delivers stable 10G throughput with low power consumption, making it ideal for high-density HP Aruba switches and servers where reliability and thermal efficiency are critical.

Who is it for

Network administrators and IT integrators managing HP Aruba environments—including enterprise LANs, campus networks, and data centre top-of-rack deployments—who need a cost-effective, fully compatible 10GBASE-SR optic without vendor lock-in. It is equally suited for storage networks and high-bandwidth workstation uplinks.

Main features

• 10 Gbps data rate over multimode fibre (OM3/OM4), 850nm VCSEL laser
• Reach up to 300 m on OM3 MMF, compliant with IEEE 802.3ae 10GBASE-SR
• Digital Diagnostic Monitoring (DDM/DOM) for real-time monitoring of temperature, voltage, TX/RX power
• Duplex LC connector, hot-swappable SFP+ form factor
• Low power consumption (<1W typical), 3.3V supply, RoHS compliant
• Fully compatible with HP Aruba switches, routers, and network interface cards

Specifications

• Transceiver type: SFP+
• Data rate: 10 Gbps
• Wavelength: 850 nm
• Max distance: 300 m (OM3 MMF)
• Fibre type: Multimode (MMF)
• Connector: LC Duplex
• DDM/DOM: Yes
• Standard: IEEE 802.3ae 10GBASE-SR
• Laser: VCSEL
• Power consumption: <1W typical
• Operating temperature: 0°C to 70°C
• Hot-swappable: Yes
• Supply voltage: 3.3V
• Certification: RoHS
• Duplex mode: Full-duplex

Tips

For best performance, pair with OM3 or OM4 laser-optimised multimode fibre. Use the DDM interface to proactively monitor link health and schedule maintenance before failures occur. Ensure both ends of the link use the same transceiver standard (10GBASE-SR) and compatible fibre type.
