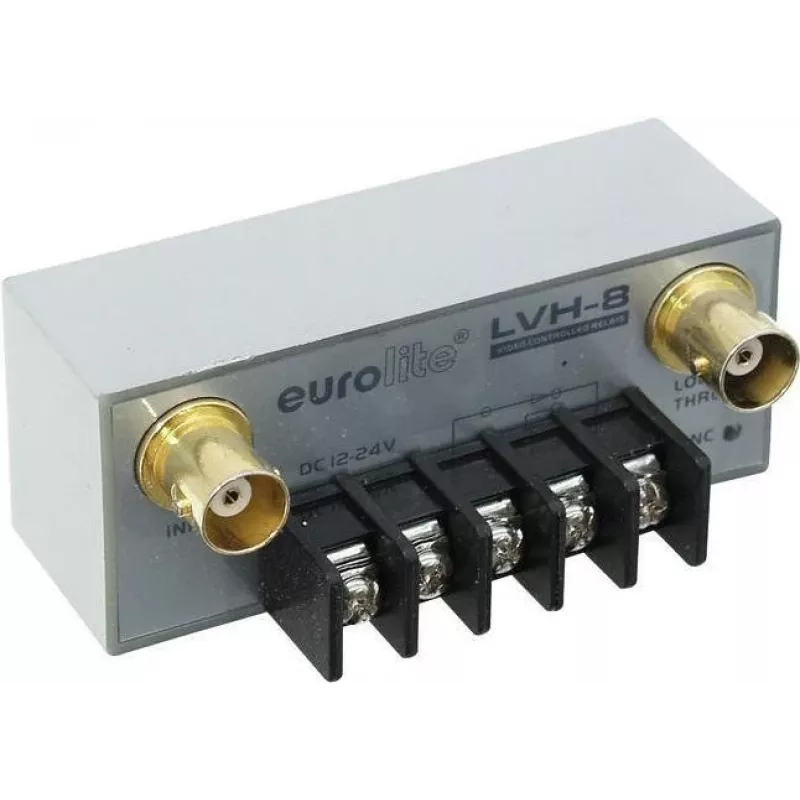

Lighting relay EUROLITE LVH-8 video-controlled 8 channels model 81013208

The EUROLITE LVH-8 video-controlled lighting relay provides eight independent relay channels designed to switch lighting circuits and devices in response to a video signal. The unit receives a video input and converts detected video activity into relay actuation, allowing synchronized control of multiple loads without manual intervention. Intended for stage installations, AV systems and fixed lighting setups, the LVH-8 simplifies image-driven switching tasks and integrates into racks or control systems where reliable channel isolation and timing are required.

Advantages

The LVH-8 offers eight isolated relay outputs that respond to video input, enabling simultaneous or individual control of connected devices. Its video-triggered operation reduces the need for additional control infrastructure and allows direct synchronization with visual content. The device is built for repeated switching cycles and provides consistent performance in live or installed environments. Compact form factor and straightforward wiring make it practical for retrofits and new installations.

Suitable for (tasks / use cases)

Key specifications

How to use

Connect the composite video source to the LVH-8 video input and wire each relay output to the corresponding lighting circuit or device following local electrical regulations. Configure the triggering setup so that the desired video signals produce the intended relay responses; this may require testing with the actual video content to align timing and sensitivity. Ensure power to the unit and connected loads is applied only after all wiring is completed and verified. For safety and longevity, use the relays within their rated electrical limits and maintain proper grounding of the overall installation.

Recommendations

Use the EUROLITE LVH-8 in installations where synchronized, image-driven switching is required; verify relay load ratings against the connected devices and perform on-site testing with the actual video source to fine-tune response behavior.
