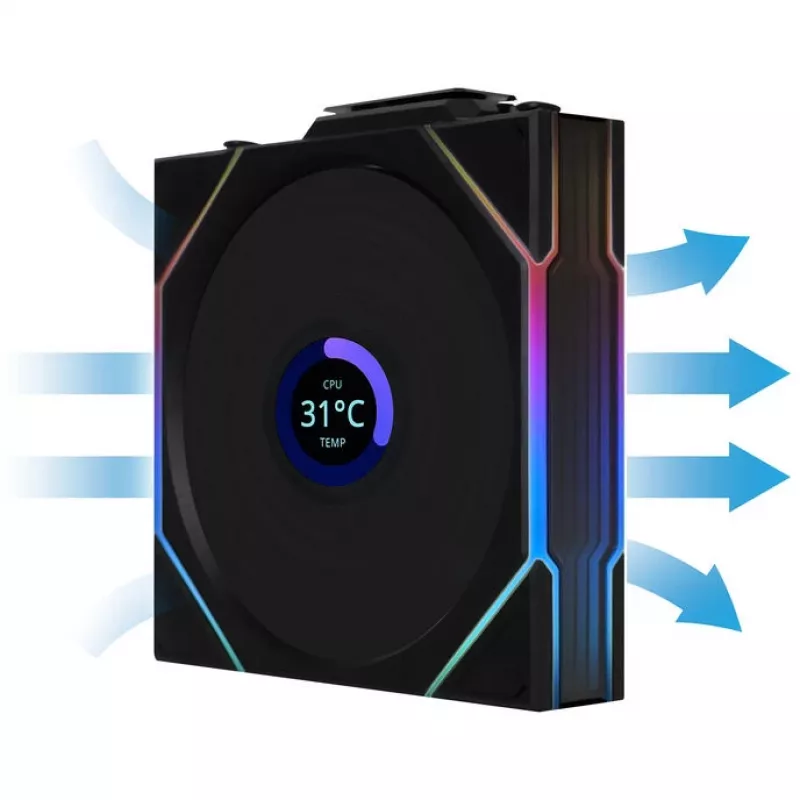

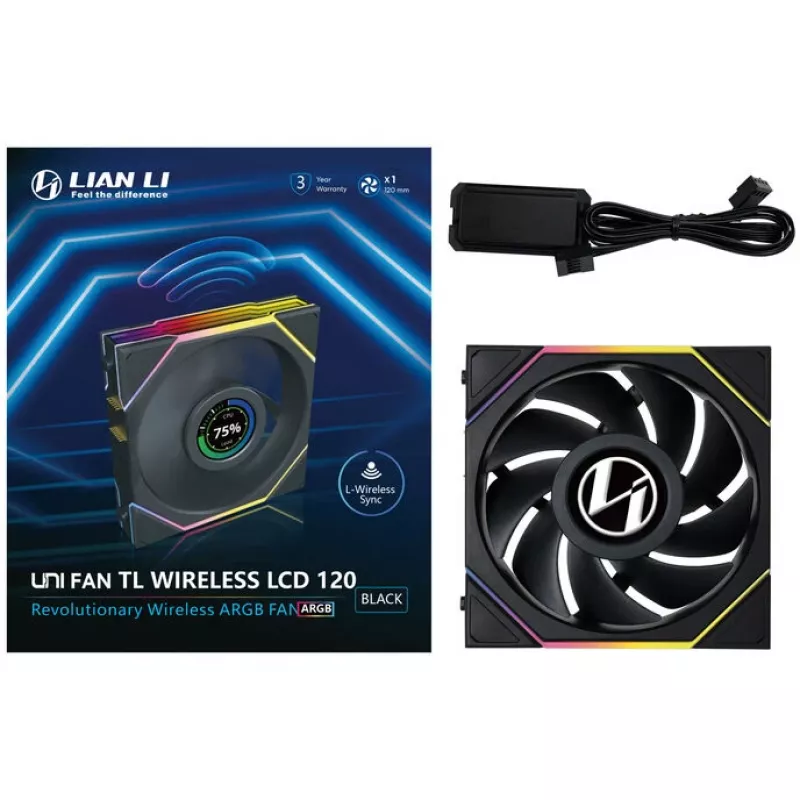

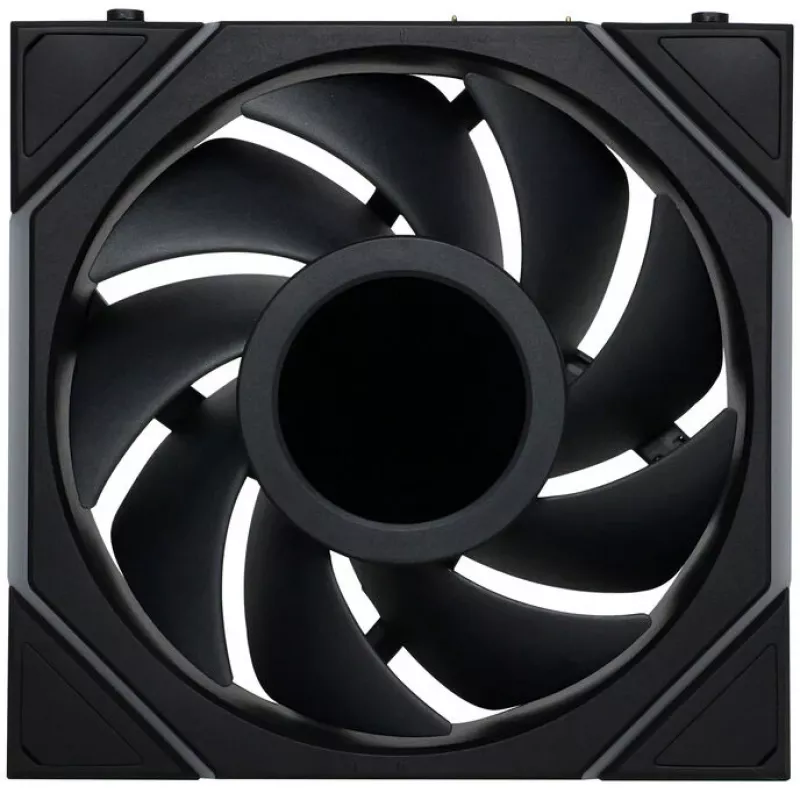

Fan Lian Li 12TLLCD1W1B 12 cm Black 1 pc 0.2-2300 RPM

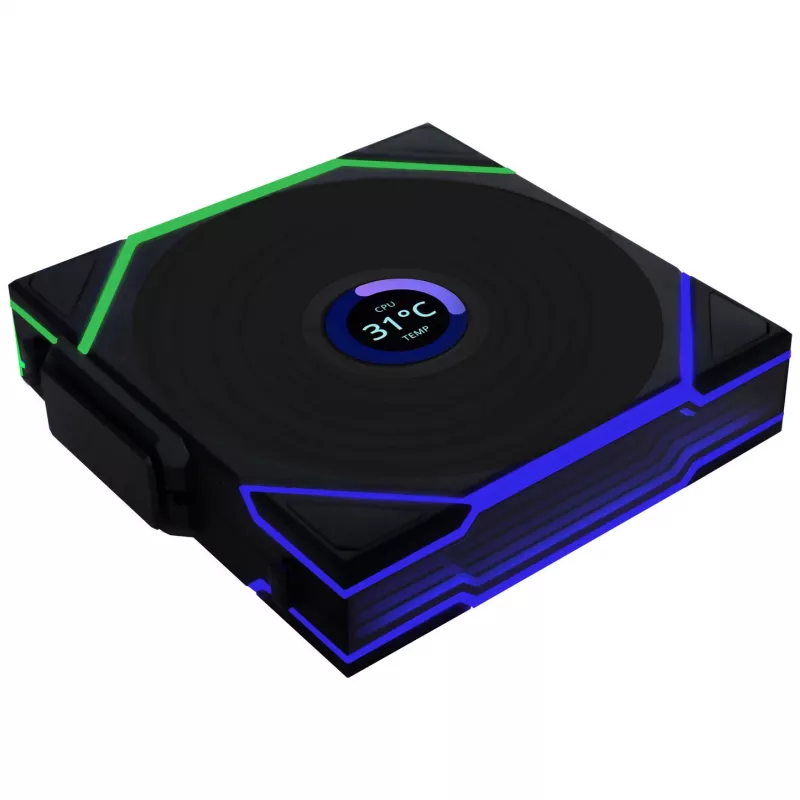

The Lian Li UNI FAN TL Wireless series combines efficient 120 mm cooling with LIAN LI’s 2.4 GHz wireless sync system to control lighting effects and fan speed without traditional hub wiring. The TL LCD Wireless model adds a 1.6" circular LCD (60 Hz) for customizable display of system data via L-Connect 3. Both LED and LCD versions can be mixed in a single cluster and are compatible with the L-Wireless Sync Controller, which supports multiple channels and a wide range of LIAN LI wireless devices.

Advantages

Wireless 2.4 GHz transmission simplifies installation by removing the need for conventional hub connections while keeping PWM control for fan power and LEDs. The L-Wireless Controller can manage up to 10 channels and large multi-fan setups, and the LCD version supports direct USB connection for screen data and power. Fans use LCP blades, a copper center shaft, and fluid dynamic bearings (FDB) for a balance of airflow, static pressure and quiet operation. The TL series also offers continuous RGB lighting with 26 LEDs per fan and an infinity-mirror design for a uniform visual effect.

Suitable for

• Case cooling in gaming and workstation PCs
• Radiator fans where static pressure matters
• Builders who prefer simplified wiring and modular fan clusters
• Systems requiring visual monitoring via LCD screens

Key specifications

• Fan size: 120 x 124 x 28 mm
• Speed range: 0.2–2300 RPM (PWM)
• Max airflow: 83.4 CFM
• Max static pressure: 2.66 mmH2O
• Noise level: 34 dB
• Bearing: Fluid Dynamic Bearing (FDB)
• Blade material: LCP (liquid crystal polymer)
• Light: 26 LEDs, two light zones, infinity mirror design
• Connectivity: 4-pin PWM for motor/LED power; TL LCD requires USB 2.0 9-pin for LCD data/power
• Compatibility: L-Wireless Sync Controller (supports mixed LED/LCD clusters)
• Color: Black

How to use

Install each fan group to a 12V PWM header on the motherboard or use a 1-to-3 SATA splitter cable for power. For non-LCD TL Wireless fans, a single PWM cable provides LED and motor power. For TL LCD Wireless fans, connect both the PWM cable for motor/LED power and a USB 2.0 9-pin cable to the motherboard to enable LCD functionality. Use the L-Wireless Sync Controller to assign channels for each group; each group occupies one channel and the controller can transmit across up to 10 channels. When mixing LCD and non-LCD fans, use the LCD receiver. Cable length can be managed with the receiver organizer.

Recommendations

For larger builds, use a powered USB splitter or hub when adding many TL LCD Wireless fans: a USB splitter without SATA supports up to 6 TL LCD fans, while a USB splitter with SATA power supports up to 9. A single compatible motherboard can support up to 20 TL LCD Wireless fans and the L-Wireless Controller can manage up to 40 TL (non-LCD) fans when all 10 channels are used.
