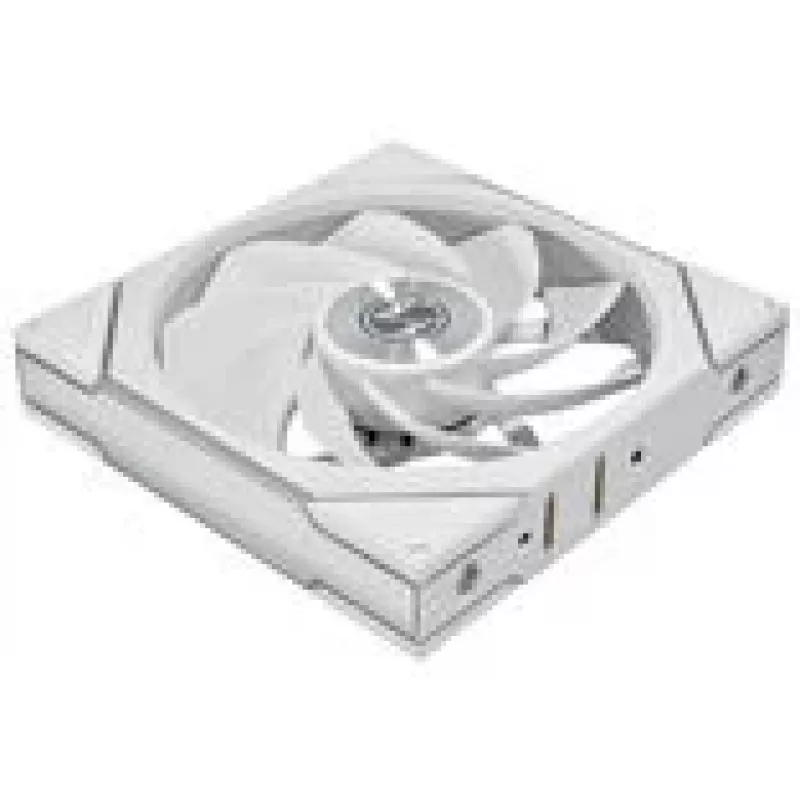

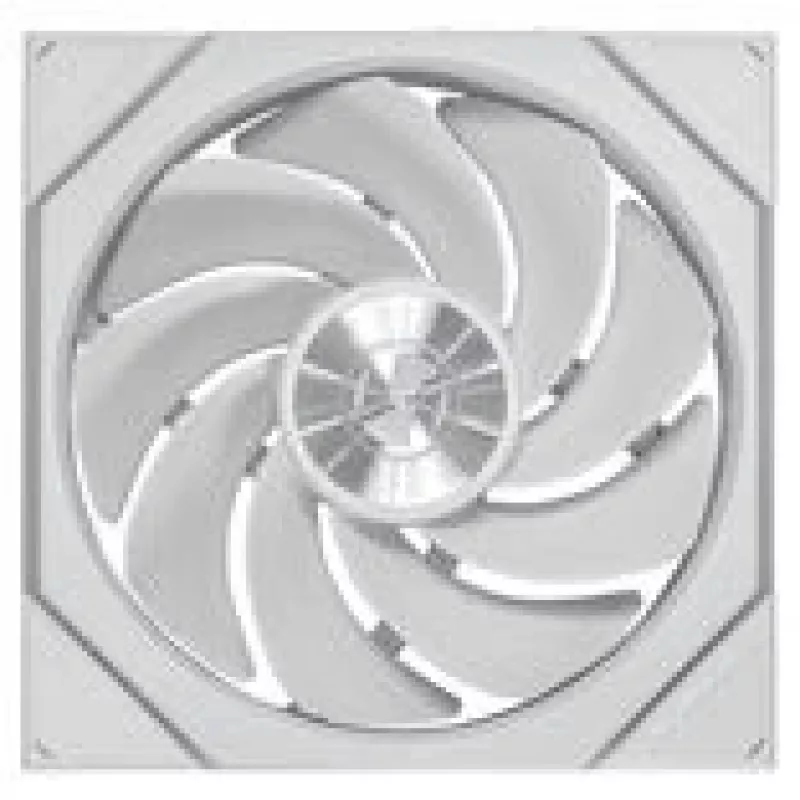

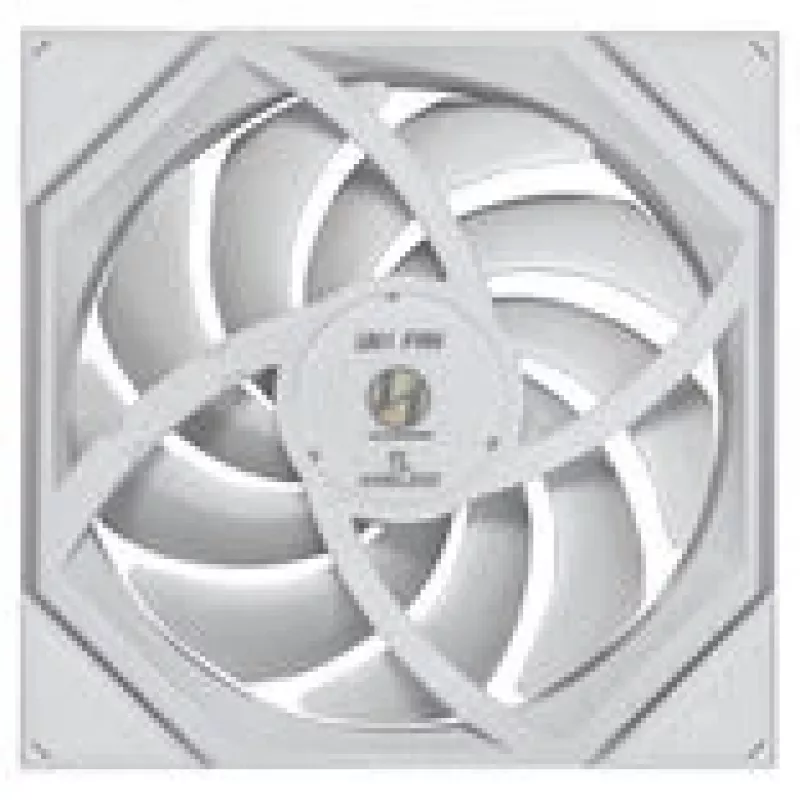

Fan Lian Li 14RTL1W1W 14 cm White 1800 RPM Fluid Dynamic Bearing

The Lian Li UNI FAN TL Wireless series introduces 2.4GHz wireless sync technology to control lighting effects and fan speed, providing efficient cooling, low noise, and flexible installation. The UNI FAN TL Wireless and TL LCD Wireless remove the need for traditional hub connections by using the L-Wireless Sync Controller, which transmits signals wirelessly and powers fans via a motherboard 4-pin PWM header or a SATA power cable. The LCD version requires an additional USB 2.0 9-pin connection to set and power the LCD screen. Models can be mixed within a single cluster by using the LCD version receiver where necessary.

Advantages

Wireless transmission simplifies installation and reduces cable clutter while maintaining synchronized control over multiple fan groups. The L-Wireless Controller supports up to 10 channels and is compatible with several LIAN LI wireless devices, allowing management of large arrays of fans and future expansion. The TL series combines high airflow and static pressure with low noise thanks to LCP blades, a copper center shaft, and fluid dynamic bearings. The LCD variant adds a 1.6" circular 60Hz display for real‑time system information and extensive customization via L-Connect 3.

Suitable for

• Custom PC builds requiring efficient case or radiator cooling
• Systems where minimized cable routing and clean aesthetics are desired
• Users who want per-cluster software control of fan speed and lighting (L-Connect 3)
• Setups that benefit from on-fan LCD monitoring and visual customization

Key specifications

• Fan size: 140 x 142 x 28 mm (14 cm)
• Maximum speed: 1800 RPM
• Maximum airflow: 103.9 CFM
• Maximum static pressure: 2.27 mmH2O
• Noise level: 31 dB
• Bearing: Fluid Dynamic Bearing (FDB)
• Blade material: LCP (liquid crystal polymer)
• LED: 26 LEDs per fan with two light zones and infinity mirror design

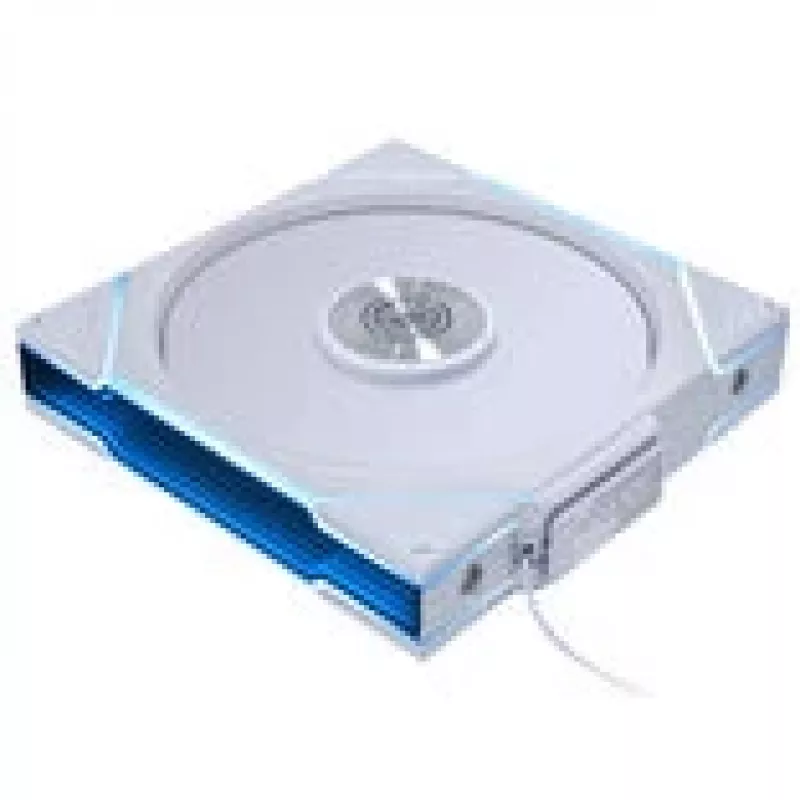

• LCD (optional): 1.6" circular screen, 60 Hz (TL LCD Wireless only)
• Control: PWM support; wireless control via L-Wireless Sync Controller (2.4 GHz)
• Connections: PWM (4-pin) for motor/LED power; TL LCD requires USB 2.0 9-pin for LCD signals and power; SATA power available for additional power
• Compatibility: UNI FAN interlocking system; supports mixing LED and LCD fans in clusters (use LCD receiver for mixed clusters)
• Color: White
• Quantity: 1 pc

How to use

Install the fan in your case or on a radiator using the standard mounting points and interlock adjacent UNI FAN modules if desired for streamlined cable management. Connect the fan group to a 12V PWM header on the motherboard or use a 1-to-3 SATA splitter cable for power. For TL LCD Wireless units, attach the USB 2.0 9-pin cable to the motherboard to enable the LCD screen and link the fan group to the L-Wireless Sync Controller. Use the receiver’s organizer to shorten cable lengths where necessary and follow the manufacturer instructions when combining LCD and non-LCD fans in a single cluster.

Recommendations

For stable LCD performance in larger builds, use a USB splitter with additional power: a USB 2.0 splitter hub without SATA supports up to 6 TL LCD Wireless fans, a splitter with SATA support (for example, an external hub) supports up to 9 TL LCD Wireless fans, and a single motherboard can support up to 20 TL LCD Wireless fans when properly powered. When using many non-LCD UNI FAN TL Wireless fans, a fully populated 10-channel L-Wireless Controller can manage up to 40 fans. Configure fan groups in L-Connect 3 to set appropriate speed profiles for radiator or case use and to monitor system temperatures on LCD-equipped fans.
