Fan Lian Li 12RTL1W1W 12 cm White 2300 RPM Fluid Dynamic Bearing

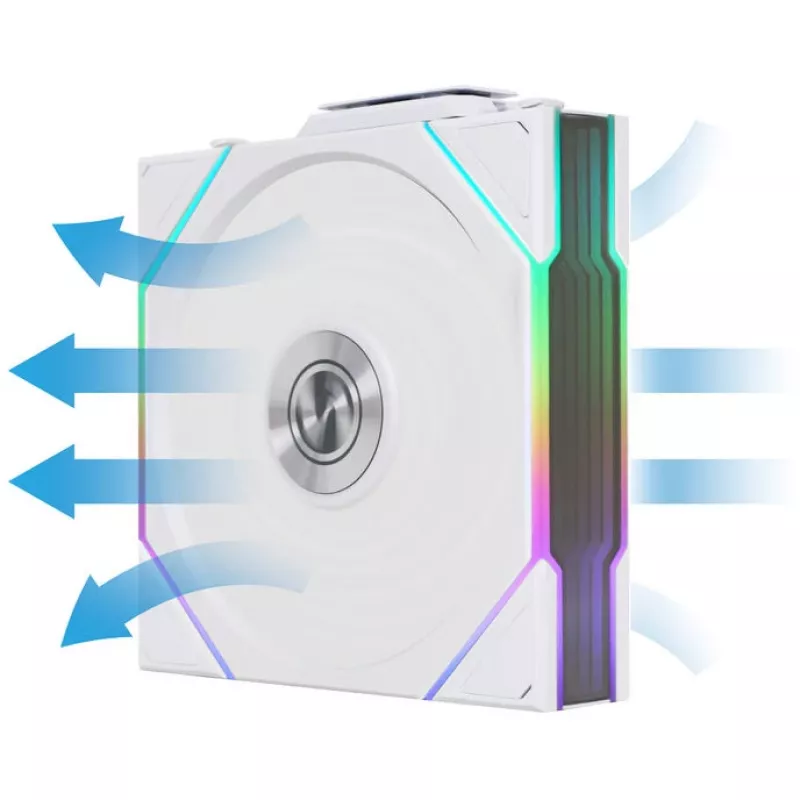

The Lian Li UNI FAN TL Wireless series includes the UNI FAN TL Wireless and UNI FAN TL LCD Wireless, 120 mm case fans that use 2.4 GHz wireless sync technology to control lighting effects and fan speed. These fans support LIAN LI’s L-Wireless controller system and can be powered from a 4-pin PWM fan header or a SATA power cable; the LCD version also requires a USB 2.0 9-pin connection for the display. The design combines high airflow and pressure (up to 83.4 CFM and 2.66 mmH2O) with a 2300 RPM maximum speed and a fluid dynamic bearing for quiet, reliable operation. The TL series supports mix-and-match clusters of LED and LCD fans and integrates with L-Connect 3 software for software control and customization.

Advantages

The wireless 2.4 GHz transmission removes the need for traditional hub connections, simplifying installation and reducing cable clutter. The L-Wireless controller supports up to 10 channels and is compatible with multiple LIAN LI wireless products, enabling control of large fan arrays — up to 40 non-LCD UNI FAN TL fans or up to 20 TL LCD fans per motherboard depending on power splitters used. The LCD model features a 1.6" circular display at 60 Hz for system readouts and animations, while both versions provide continuous RGB lighting through 26 LEDs and an infinity-mirror frame. Construction uses LCP fan blades, a copper center shaft, and FDB bearings to balance aesthetics with performance.

Suitable for

• Custom PC builders seeking streamlined cable management and wireless lighting/fan control
• Systems requiring high airflow and static pressure for radiators or densely packed cases
• Users wanting customizable LCD displays for system monitoring (TL LCD Wireless)

Key specifications

• Fan size: 120 x 124 x 28 mm
• Max speed: 2300 RPM
• Max airflow: 83.4 CFM
• Max static pressure: 2.66 mmH2O
• Noise level: 34 dB
• Bearing: Fluid Dynamic Bearing (FDB)
• LEDs: 26 per fan, two light zones
• Control: PWM support; L-Wireless Sync required; L-Connect 3 software compatible
• Power options: 4-pin PWM header or SATA power; TL LCD also requires USB 2.0 9-pin for LCD data/power
• Material: LCP fan blades, copper center shaft
• Color: White
• Quantity: 1 pc

How to use

Connect each fan group to a 12V PWM header or use a 1-to-3 SATA splitter cable for power aggregation. For TL LCD Wireless fans, attach the USB 2.0 9-pin cable to the motherboard to enable the LCD display; non-LCD fans only require PWM power. Use the included L-Wireless receiver organized with the cable organizer to shorten cable runs. Configure fan speeds, lighting effects, and LCD content using L-Connect 3 once the fans and controller are connected.

Recommendations

For mixed clusters, use the LCD version receiver. When expanding LCD fan arrays, consider USB splitter cables with or without SATA power to increase the number of supported TL LCD fans: a USB splitter without SATA supports up to 6 TL LCD fans, a USB splitter with SATA supports up to 9, and a single motherboard can support up to 20 TL LCD fans depending on available ports and power. For maximum non-LCD capacity, the L-Wireless Controller can manage up to 40 UNI FAN TL (non-LCD) fans across 10 channels.
