LevelOne TURING 12-Port L3 Lite Managed Gigabit Industrial Switch, 8 PoE Outputs, 240W, 802.3at/af PoE, 4 x SFP, -40°C to 75°C

LevelOne TURING 12-Port L3 Lite Managed Gigabit Industrial Switch, 8 PoE Outputs, 240W, 802.3at/af PoE, 4 x SFP, -40°C to 75°C
LevelOne TURING 12-Port L3 Lite Managed Gigabit Industrial Switch, 8 PoE Outputs, 240W, 802.3at/af PoE, 4 x SFP, -40°C to 75°C
LevelOne TURING 12-Port L3 Lite Managed Gigabit Industrial Switch, 8 PoE Outputs, 240W, 802.3at/af PoE, 4 x SFP, -40°C to 75°C
LevelOne TURING 12-Port L3 Lite Managed Gigabit Industrial Switch, 8 PoE Outputs, 240W, 802.3at/af PoE, 4 x SFP, -40°C to 75°C
LevelOne TURING 12-Port L3 Lite Managed Gigabit Industrial Switch, 8 PoE Outputs, 240W, 802.3at/af PoE, 4 x SFP, -40°C to 75°C
LevelOne TURING 12-Port L3 Lite Managed Gigabit Industrial Switch, 8 PoE Outputs, 240W, 802.3at/af PoE, 4 x SFP, -40°C to 75°C
LevelOne TURING 12-Port L3 Lite Managed Gigabit Industrial Switch, 8 PoE Outputs, 240W, 802.3at/af PoE, 4 x SFP, -40°C to 75°C
LevelOne TURING 12-Port L3 Lite Managed Gigabit Industrial Switch, 8 PoE Outputs, 240W, 802.3at/af PoE, 4 x SFP, -40°C to 75°C
LevelOne TURING 12-Port L3 Lite Managed Gigabit Industrial Switch, 8 PoE Outputs, 240W, 802.3at/af PoE, 4 x SFP, -40°C to 75°C
LevelOne TURING 12-Port L3 Lite Managed Gigabit Industrial Switch, 8 PoE Outputs, 240W, 802.3at/af PoE, 4 x SFP, -40°C to 75°C
LevelOne TURING 12-Port L3 Lite Managed Gigabit Industrial Switch, 8 PoE Outputs, 240W, 802.3at/af PoE, 4 x SFP, -40°C to 75°C
LevelOne TURING 12-Port L3 Lite Managed Gigabit Industrial Switch, 8 PoE Outputs, 240W, 802.3at/af PoE, 4 x SFP, -40°C to 75°C
R17,572

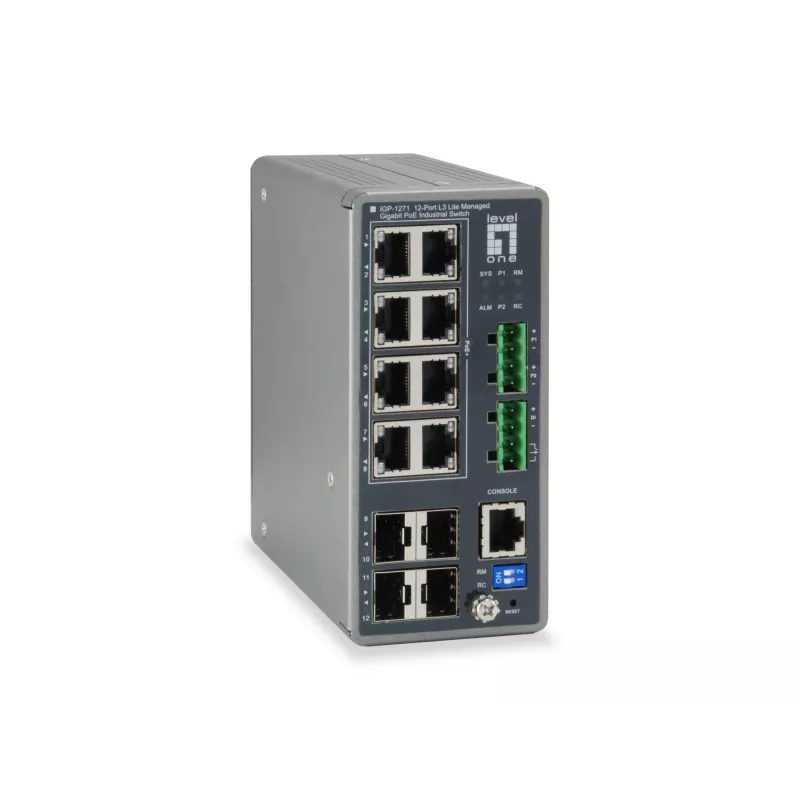

The LevelOne IGP-1271 is an L3 Lite managed PoE industrial switch that combines eight Gigabit RJ45 PoE ports with four Gigabit SFP slots. It provides a full suite of L2 management features and improved PoE capabilities with a 240W PoE power budget, while offering selected L3 functions such as Static... Read More
Stock 2 Code 111311 Brand LEVELONE Model IGP-1271 Warranty 2 Years

Shipping & Returns

Estimated delivery Wednesday, October 7
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The LevelOne IGP-1271 is an L3 Lite managed PoE industrial switch that combines eight Gigabit RJ45 PoE ports with four Gigabit SFP slots. It provides a full suite of L2 management features and improved PoE capabilities with a 240W PoE power budget, while offering selected L3 functions such as Static Route for simplified inter-network routing over fiber or copper connections.

Advantages

The switch delivers managed layer-2 features alongside enhanced PoE usability and a 240W power budget to support connected devices. Inclusion of Gigabit SFP ports enables flexible fiber connectivity, and the L3 Lite Static Route feature adds basic routing capability to reduce equipment needs and lower total cost of ownership in industrial and enterprise deployments.

Key specifications

  • Model: LevelOne IGP-1271
  • Port configuration: 8 × Gigabit RJ45 PoE, 4 × Gigabit SFP
  • Management: L2 managed with L3 Lite features (Static Route)
  • PoE power budget: 240W
  • Use case: Industrial / enterprise networks

How to use

Install the IGP-1271 in a suitable industrial or network cabinet and connect power according to manufacturer guidelines. Attach PoE devices to the RJ45 PoE ports and fiber links to SFP slots as required. Configure L2 management settings through the device interface and, if needed, add Static Route entries for basic inter-VLAN or inter-subnet routing between copper and fiber segments.

Recommendations

For reliable operation, ensure the total PoE load does not exceed the 240W budget and use compatible SFP modules for fiber links. Use the L2 management tools for VLANs and QoS and apply Static Route only when basic routing is required to keep configuration simple.

Key Highlights
  • 8 Gigabit PoE ports and 4 Gigabit SFP slots
  • Total PoE power budget: 240W, up to 30W per port
  • Supports IPv4/IPv6 network operation
  • Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
  • Supports Operations, Administration, and Maintenance (OAM) mechanisms
  • Ethernet Ring Protection Switching (ERPS) for Ethernet ring topologies with sub-50 ms failover capabilities
  • 40°C to 75°C operating temperature range
  • Redundant power inputs with Terminal Block
  • Managed L3 SNMP, Web, Telnet, SSH
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 16 Console port: RJ-45
  • 100BASE-TX, 1000BASE-T
  • MAC address table: 8000 entries Switching capacity: 24 Gbit/s
  • Access Control List (ACL)
  • Power over Ethernet (PoE)
Specifications
10G support
No
Access Control List (ACL)
Yes
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
BPDU tunneling
Yes
Broadcast storm control
Yes
Cable length detection
Yes
Cables included
LAN (RJ-45)
Certification
RoHS FCC,CE EN61000-4-2 EN61000-4-3 EN61000-4-4 EN61000-4-5 EN61000-4-6 IEC60068-2-32 IEC60068-2-27 IEC60068-2-6
Console port
RJ-45
Copper ethernet cabling technology
100BASE-TX, 1000BASE-T
Country of origin
Taiwan
DC input voltage
48 - 57 V
Depth
130 mm
DHCP features
DHCP server, DHCP snooping, DHCP relay, DHCP client
DIN rail mounting
Yes
Ethernet Ring Protection Switching (ERPS)
Yes
Firmware upgradeable
Yes
Flash memory
32 MB
Forwarding rate
17.856 Mpps
GARP VLAN Registration Protocol (GVRP)
Yes
Harmonized System (HS) code
85176990
Heat dissipation
816.18 BTU/h
Height
135 mm
IGMP snooping
Yes
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Internal memory
128 MB
International Protection (IP) code
IP30
Jumbo frames
9216
Jumbo frames support
Yes
LED indicators
Alarm, Power, Ring, Status, System
Link aggregation
Yes
Loop protection
Yes
MAC address table
8000 entries
Management protocols
SNMP, Web, Telnet, SSH
Manual
Yes
Master (outer) case gross weight
2.4 kg
Master (outer) case height
220 mm
Master (outer) case length
445 mm
Master (outer) case width
520 mm
Mean time between failures (MTBF)
476206 h
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-40 - 75 °C
Package depth
207 mm
Package height
85 mm
Package weight
900 g
Package width
255 mm
Packet buffer memory
0.5 MB
Port mirroring
Yes
Power consumption (max)
239.2 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
8
Power protection features
Short circuit
Product colour
Grey
Products per master (outer) case
10 pc(s)
Quality of Service (QoS) support
Yes
Quick start guide
Yes
Redundant power supply (RPS) support
Yes
Reset button
Yes
Resource CD
Yes
Root protection
Yes
Safety
UL, CB
sFlow
Yes
SFP module slots quantity
4
Spanning tree protocol
Yes
SSH/SSL support
Yes
Static route
Yes
Storage relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 85 °C
Store-and-forward
Yes
Supported network protocols
IPv4/IPv6
Switch layer
L3
Switch type
Managed
Switching capacity
24 Gbit/s
System event log
Yes
Telnet
Yes
Total Power over Ethernet (PoE) budget
240 W
Virtual LAN features
Private VLAN, Voice VLAN, Protocol-based VLAN, MAC address-based VLAN, IP subnet–based VLAN
VLAN support
Yes
Weight
700 g
Width
62 mm

Manual

Open Manual

Manual

Open Manual

Leaflet

Open Leaflet

Document

Open Document
