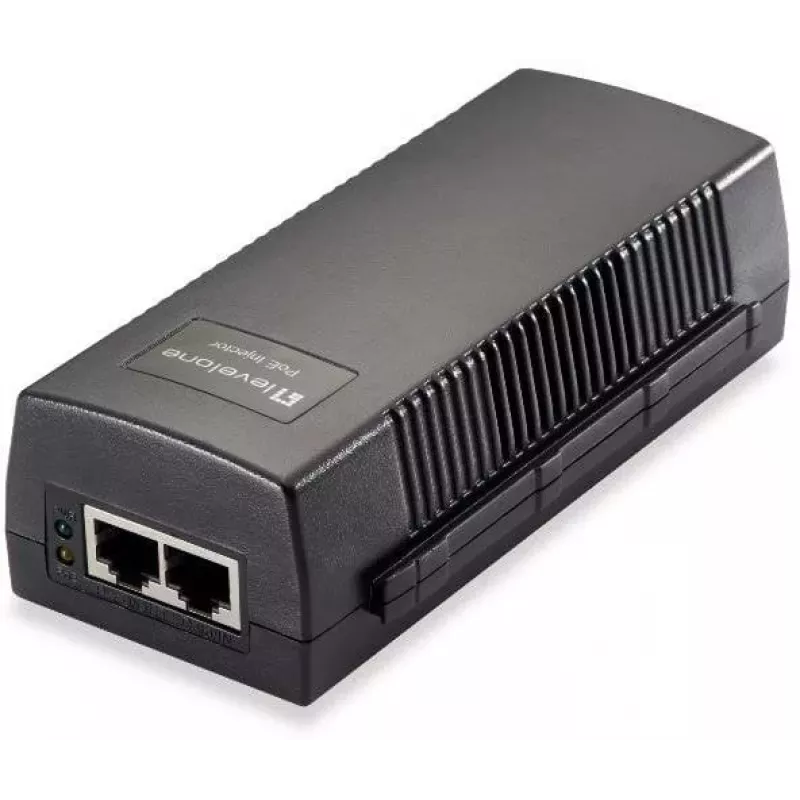

LevelOne PoE Injector GE 2x PSE 30W PoE Black

The LevelOne POI-3015 is a high-performance PoE injector designed to deliver power and data over a single Ethernet cable. With two PoE+ ports providing up to 30W per port and a total power budget of 60W, it is ideal for powering devices such as IP cameras, wireless access points, and VoIP phones. The injector supports Gigabit Ethernet speeds and is compliant with IEEE 802.3at/af standards, ensuring compatibility with a wide range of PoE devices. Its compact design allows for desktop or wall-mount installation, making it a versatile solution for expanding your network infrastructure.

Advantages

Simplifies network setup by eliminating the need for separate power cables for each device. Supports high-power devices with up to 30W per port. Easy to install with plug-and-play operation. Durable metal housing ensures long-lasting performance.

Suitable for

• Powering PoE-compatible IP cameras, access points, and VoIP phones
• Extending network reach in offices, warehouses, and retail spaces
• Deploying devices in locations without nearby power outlets

Key specifications

• PoE Standard: IEEE 802.3at (PoE+), IEEE 802.3af (PoE)
• Ethernet Standard: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T
• Number of PoE Ports: 2
• Data Ports: 2x 10/100/1000Mbps RJ45 (Data In)
• PoE Output Ports: 2x 10/100/1000Mbps RJ45 (Data & Power Out)
• Power Output per Port: Up to 30W
• Total PoE Power Budget: 60W
• Input Power: 100-240V AC, 50/60Hz
• Output Voltage: 55V DC
• Power Pin Assignment: 1/2(+), 3/6(-) and 4/5(+), 7/8(-)
• LED Indicators: Power, PoE (per port)
• Mounting: Desktop, Wall-mount
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)
• Operating Humidity: 10% to 90% RH (non-condensing)
• Certifications: CE, FCC
• Color: Black

Recommendations

For optimal performance, use with Cat5e or higher Ethernet cables. Ensure the total power consumption of connected devices does not exceed 60W. This injector is not a switch; it only provides power injection.
