LevelOne OSW-1061 network switch Managed L2 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Black

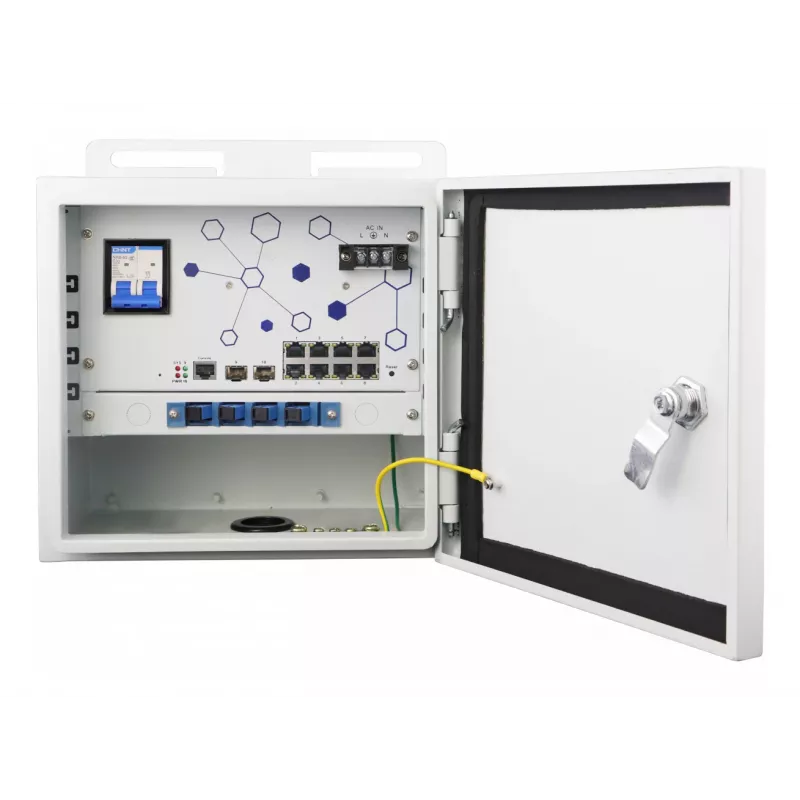

The LevelOne OSW-1061 is a managed L2 PoE industrial switch with eight 2.5G-capable RJ45 Ethernet ports and two Gigabit SFP fiber ports, designed for deployment in outdoor or harsh environments. It provides a 185 W PoE power budget, IP55 weatherproof housing, surge and ESD protection, and L2 management features accessible via a web-based interface.

Advantages

The OSW-1061 combines industrial-grade durability with managed switching functions: an IP55-rated enclosure for outdoor use, 6 kV surge protection and ESD protection for reliable operation, and a 20 Gbit/s switching capacity with an 8000-entry MAC address table. Its PoE support (IEEE 802.3af/at) and 185 W budget simplify powering networked devices. Web-based L2 management and QoS support enable traffic control and configuration without complex CLI requirements.

Suitable for

• Outdoor or harsh-environment network deployments
• Powering and connecting IP cameras, wireless access points, and VoIP phones via PoE
• Small to medium industrial LANs requiring managed L2 features
• Fiber uplink to core networks using SFP modules

Key specifications

• Switch type: Managed, Layer 2
• Ports: 8 × RJ45 (2.5G capable: 100/1000/2500 Mbps), 2 × Gigabit SFP
• PoE: IEEE 802.3af/at compliant, PoE budget max 185 W
• Switching capacity: 20 Gbit/s; MAC table: 8000 entries
• Protection: 6 kV surge, 6 kV contact / 8 kV air ESD
• Housing: IP55 weatherproof enclosure
• Management: Web-based L2 management, QoS support

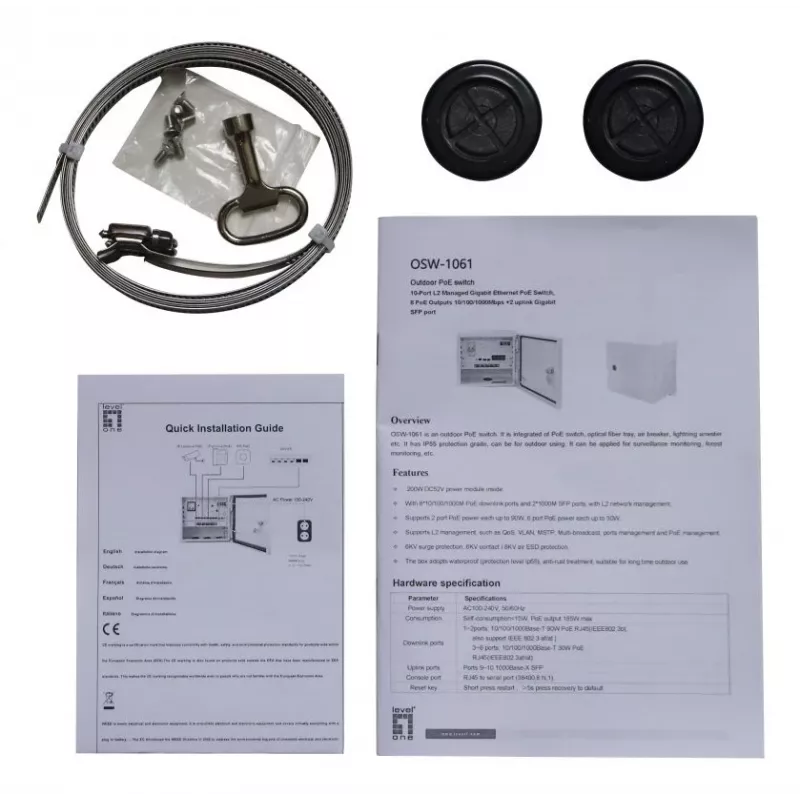

• Included accessories: 4 × SC fiber tray; AC power supply included

How to use

Mount the OSW-1061 on a wall, pole, or inside a cabinet according to site requirements, ensuring the enclosure seals are intact for outdoor installations. Connect powered devices to the RJ45 PoE ports and uplink to the network via the SFP or RJ45 ports as needed. Access the web-based management interface to configure VLANs, QoS, link aggregation and other L2 settings. Verify the PoE budget allocation when connecting multiple powered devices to avoid exceeding the 185 W limit.

Recommendations

For reliable long-term operation, install the switch in a location with adequate ventilation and protected from direct water exposure where possible, use surge-protected power and grounding, and plan PoE device connections so total power consumption remains within the 185 W budget. Regularly update firmware and back up configuration settings after changes.
