LevelOne Industrial PoE+ Switch 8x 2.5G PoE, 2x 1G, 2x 10G SFP+ Uplinks, Unmanaged, DIN-Rail, IP30

This LevelOne industrial switch delivers eight 2.5G PoE++ ports with a 360W total budget, plus two 1G RJ45 and two 10G SFP+ uplinks, in a rugged IP30 metal housing for extreme environments.

Advantages

Power your high-bandwidth devices directly: each port can supply up to 90W, enough for the latest PoE++ cameras, access points, and industrial terminals. With a 100 Gbps switching capacity and 10G uplinks, you get a future-proof backbone for data-heavy networks. The fanless design and wide operating temperature range (-40°C to 75°C) ensure silent, reliable operation even in harsh industrial settings.

Suitable for

• Industrial automation and control networks
• IP surveillance systems with high-resolution cameras
• Wireless access point deployments
• Outdoor and harsh environment installations

Key specifications

• 8x 2.5GBASE-T PoE++ ports (IEEE 802.3af/at/bt)
• 2x 1GBASE-T uplink ports
• 2x 10G SFP+ uplink slots
• PoE budget: 360W total, up to 90W per port
• Switching capacity: 100 Gbps
• Forwarding rate: 74.4 Mpps
• MAC address table: 16K entries
• Jumbo frame support: 10K bytes
• Unmanaged plug-and-play operation
• Dual redundant DC power input (24-57V)

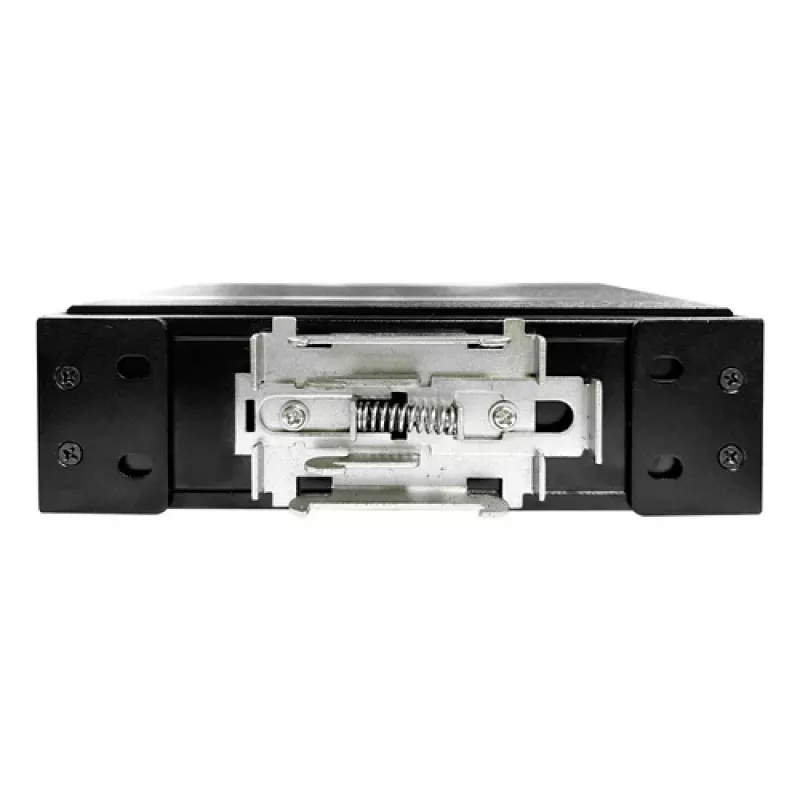

• IP30 metal housing, DIN-rail and wall-mount options
• ESD and surge protection: 6KV
• Fanless design
• Operating temperature: -40°C to 75°C

Recommendations

For maximum reliability, use a regulated DC power supply within the specified range and ensure adequate ventilation even though the unit is fanless. The 10G SFP+ ports are ideal for connecting to a core switch or server.
