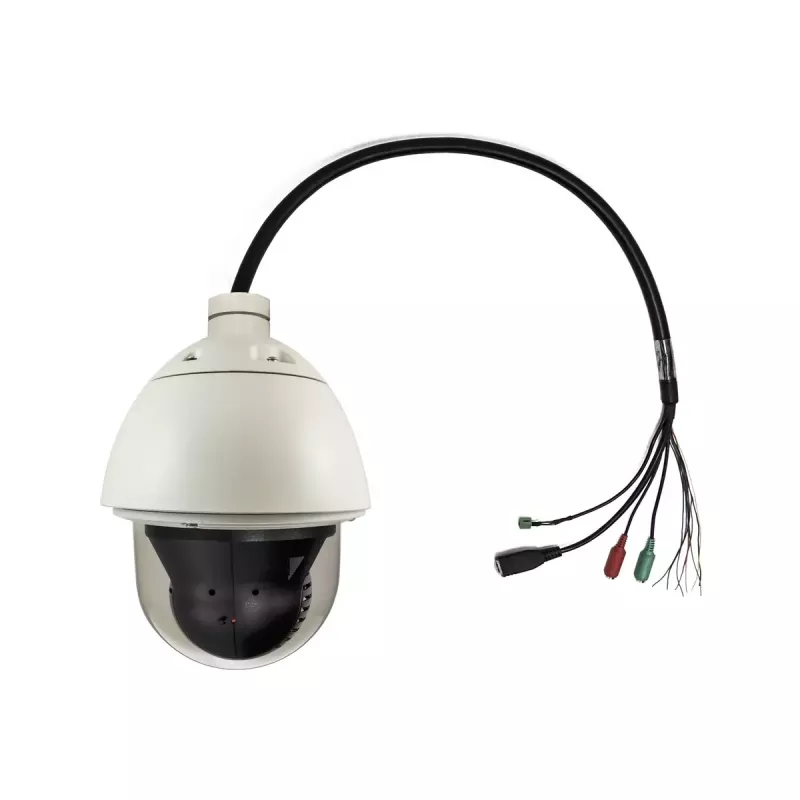

LevelOne HUBBLE PTZ Dome IP Network Camera, 2-Megapixel, 30X Optical Zoom, Indoor/Outdoor, two-way audio, 802.3at PoE

The LevelOne HUBBLE PTZ Dome 2MP 30X is an IP security camera designed for professional surveillance tasks. This PTZ dome camera delivers 2-megapixel resolution and a 30x optical zoom, enabling distant subjects to be monitored with detail. The camera supports Power over Ethernet (PoE) for simplified wired installation and includes two-way audio for remote communication. With a CMOS sensor capable of operation down to 0.05 lx, and mechanical pan and tilt ranges that provide full-area coverage, the unit is suitable for outdoor wall-mounted surveillance in commercial and public environments.

Advantages

The camera combines high-resolution imaging with a powerful 30x optical zoom to capture clear images at range while maintaining stable wired connectivity via Ethernet. PoE support reduces cabling complexity by delivering power and data over a single cable. The two-way audio feature enables communication with on-site personnel or visitors. The pan range of 360° and tilt range from -20° to 200° allow broad coverage with flexible mounting on walls. The camera’s black and white housing options help integrate the device into different environments.

Suitable for

• Perimeter and entrance monitoring at commercial buildings
• Parking lots and outdoor facility surveillance
• Public spaces such as plazas, transit hubs, and campuses
• Industrial sites requiring long-range visual inspection

Key specifications

• Model: LevelOne HUBBLE PTZ Dome 2MP 30X (FCS-4042)
• Image sensor: CMOS, low-light performance to 0.05 lx
• Resolution: 2 megapixels
• Optical zoom: 30x
• Frame rate: 30 fps
• Pan/Tilt: 360° pan, -20° to 200° tilt
• Connectivity: Wired Ethernet (LAN), PoE supported
• Audio: Two-way audio
• Mounting type: Wall mount, outdoor placement supported
• Power: Power over Ethernet (PoE)
• Product colour: Black, White
• Weight: 2.75 kg
• MPN/EAN: FCS-4042 / 4015867189955

How to use

Mount the camera on a suitable wall bracket at the planned surveillance position, ensuring the chosen location provides the intended field of view and is protected from extreme weather if required. Connect the camera to your network switch or PoE injector using a Cat5e/6 Ethernet cable to provide both power and data. Configure IP settings and network access via the camera’s web interface or supported NVR software, and adjust pan, tilt and zoom settings to define patrol patterns or preset positions. Use the two-way audio function through the management interface for live communication when needed.

Recommendations

The camera is intended for wired installations where reliable network connectivity and PoE power are available. For optimal image quality at long distances, use the optical zoom rather than digital zoom and perform periodic cleaning of the dome housing. Ensure firmware updates are applied and access is secured with strong administrative credentials and network-level protections.
