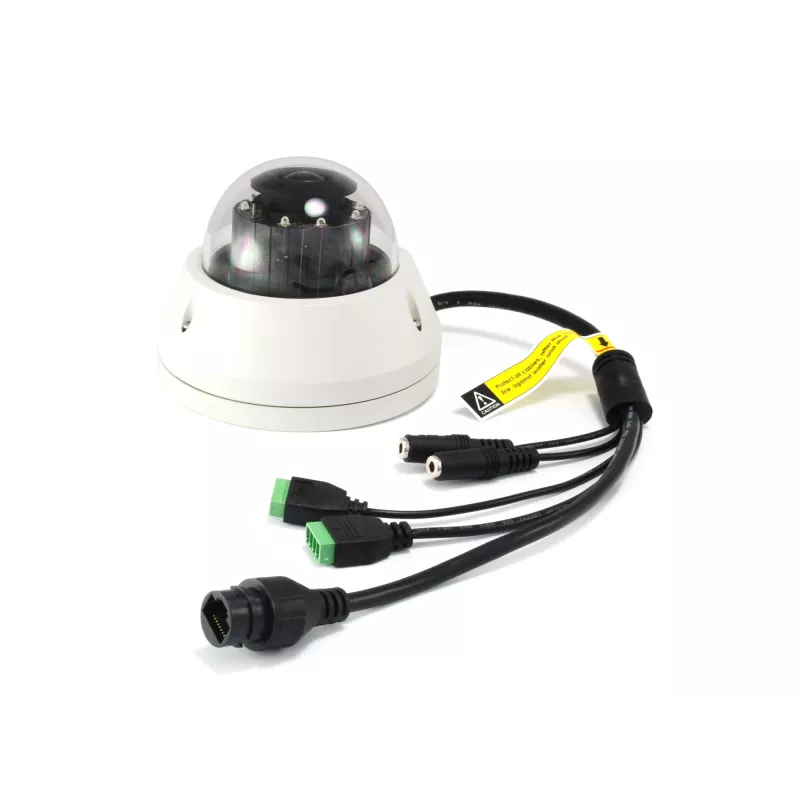

LevelOne HUBBLE Fixed Dome IP Network Camera, H.265, 3-Megapixel, 802.3af PoE, IR LEDs, Indoor/Outdoor, Vandalproof

The LevelOne HUBBLE Fixed Dome H.265 (model FCS-3306) is a 3-megapixel outdoor IP security camera in a low-profile, vandal-resistant dome casing. Designed for indoor and outdoor placement, the camera supports H.265 compression, a 129° field of view and a fixed 2.1 mm focal length. Rated IP68, it withstands rain, snow, dust, humidity and high temperatures. Power and data can be delivered over a single Cat.5 cable using PoE (802.3af), and the dome mount reduces the risk of tampering.

Advantages

The camera provides efficient video storage with H.265 compression while delivering 3-megapixel resolution at up to 30 fps. Its IP68-rated vandal-resistant dome enables reliable outdoor operation in harsh weather. PoE (802.3af) simplifies installation by combining power and data on one cable, and the fixed wide-angle 129° field of view covers large areas without moving parts.

Suitable for

• Outdoor perimeter and building surveillance
• Parking lots and open areas
• Entrances, walkways and loading bays
• Indoor areas requiring vandal-resistant cameras (lobbies, corridors)

Key specifications

• Resolution: 3 megapixels
• Video compression: H.265
• Field of view: 129°
• Focal length: fixed 2.1 mm
• Frame rate: up to 30 fps
• Ingress protection: IP68
• Power: PoE (802.3af)
• Mounting type: ceiling / wall
• Connectivity: wired Ethernet (no Wi‑Fi)
• Color: white
• Weight: 0.835 kg

How to use

Mount the camera on a wall or ceiling using the appropriate fittings; ensure the dome orientation covers the desired area. Connect the device to your network switch or PoE injector/switch via Cat.5 (or better) cable to provide both power and data. Configure video settings, network parameters and storage options through the camera’s web interface or supported management software. Verify night vision and image framing after installation and adjust mounting position if necessary.

Recommendations

For reliable outdoor operation, install the camera where the dome is protected from direct impact and heavy debris. Use a weatherproof junction box for cable connections if exposed to the elements, and ensure the PoE source meets the 802.3af standard. Regularly inspect the dome for dirt or damage to maintain image quality.
