LevelOne Hilbert 6-Port Industrial Gigabit PoE Smart Lite Switch, 2 x SFP, 4 PoE Outputs, 802.3at/af PoE

The LevelOne IGS-2106P Hilbert Industrial gigabit PoE smart lite switch provides four Gigabit RJ45 ports with PoE+ (802.3at/af) and two Gigabit SFP slots in a compact DIN-rail mountable metal housing. Designed for industrial and enterprise edge deployments, the switch supports common IEEE networking standards and offers a switching capacity of 12 Gbit/s with a 2000-entry MAC address table for reliable data and power delivery over copper and fiber connections.

Advantages

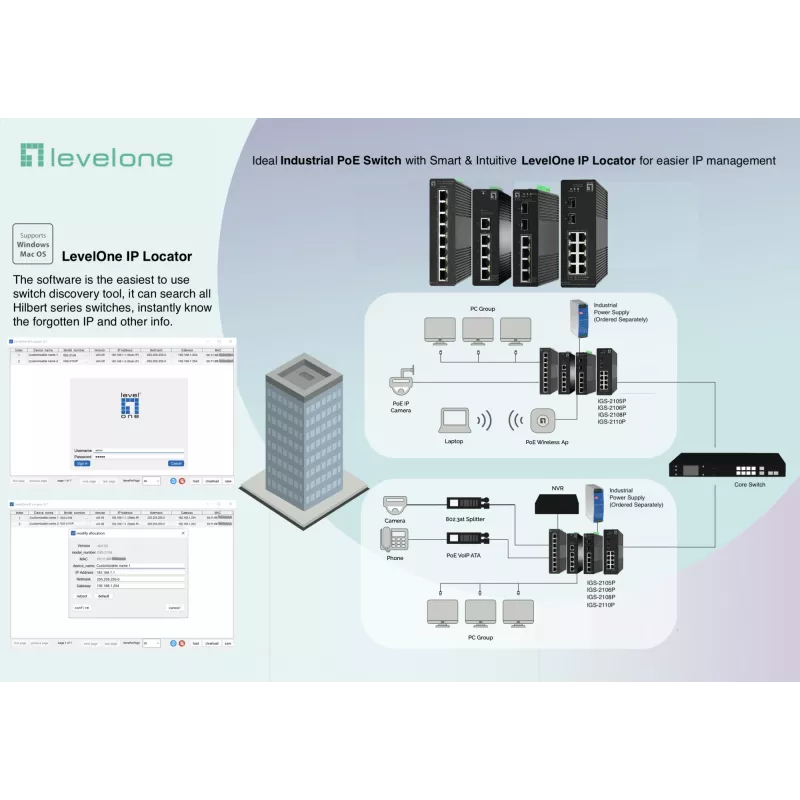

The IGS-2106P combines PoE+ power and Gigabit data on four RJ45 ports while adding two SFP uplinks for fiber connectivity, enabling flexible network topology. Its DIN-rail form factor and visible status LEDs simplify installation and monitoring in industrial environments. The switch is compatible with LevelOne IP Locator software for easy device discovery and supports mainstream Windows and Mac systems.

Suitable for

• Industrial automation and factory floor networking
• Surveillance camera networks requiring PoE power
• Small branch or retail networks needing fiber uplinks
• Edge deployments where DIN-rail mounting is required

Key specifications

• Brand: LEVELONE
• Model: IGS-2106P
• Ports: 4 × Gigabit RJ45 with PoE+ (802.3at/af), 2 × Gigabit SFP
• Switching capacity: 12 Gbit/s
• MAC address table: 2000 entries
• Managed switch (Smart Lite)
• Networking standards: IEEE 802.1D/Q/p/w, IEEE 802.3/3u/3ab/3z/3x, 802.3af/at, 802.3az
• Mounting: DIN-rail
• Colour: Black
• Weight: 0.45 kg

How to use

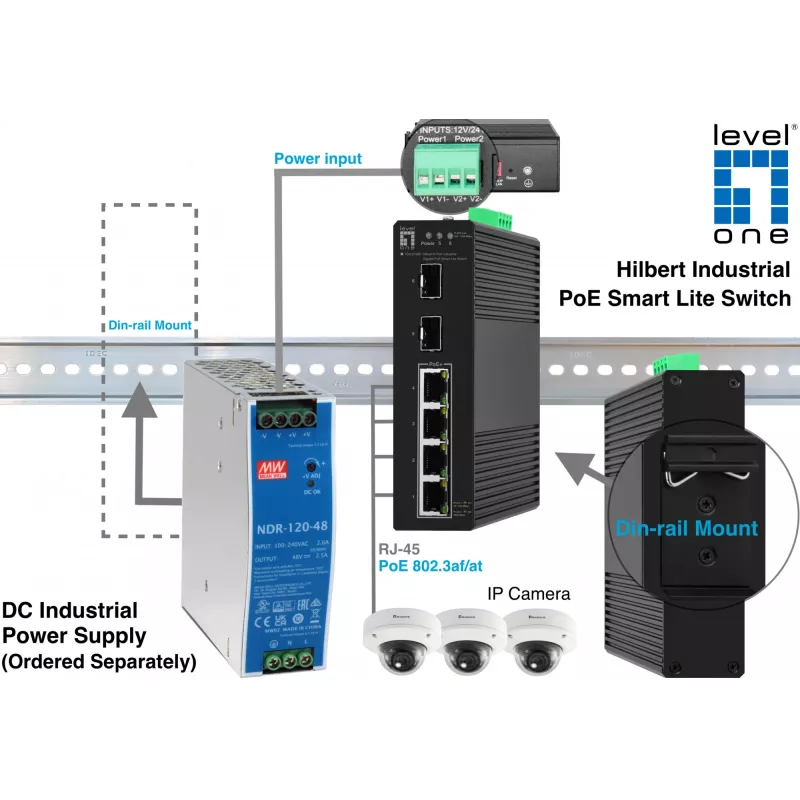

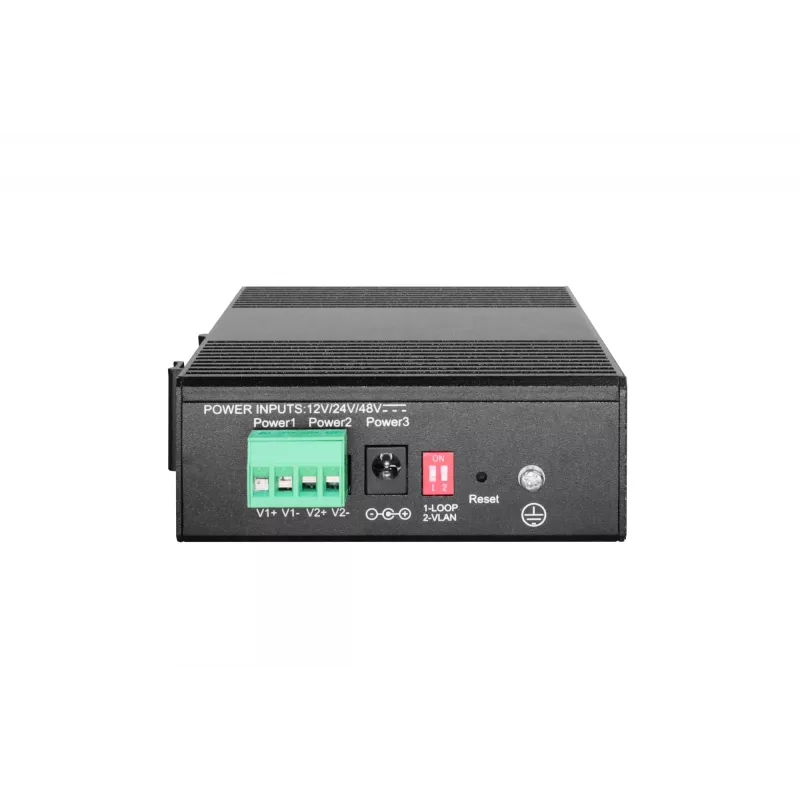

Mount the IGS-2106P on a DIN-rail and connect power according to the installation instructions. Connect PoE devices (such as IP cameras or access points) to the RJ45 PoE ports and use the SFP ports for fiber uplinks if required. Configure basic settings via the switch’s management interface or use LevelOne IP Locator to discover the device and retrieve its network information for initial setup. Monitor port LEDs to verify link status and activity during deployment.

Recommendations

Ensure PoE budget planning before connecting multiple powered devices; verify that total power draw does not exceed the switch’s available PoE capacity. Use compatible SFP modules for fiber links and follow recommended grounding and environmental guidelines for industrial installations.
