LevelOne HDMI over Cat.5 Transmitter, 300m, 8 Channel Outputs

LevelOne HDMI over Cat.5 Transmitter, 300m, 8 Channel Outputs
LevelOne HDMI over Cat.5 Transmitter, 300m, 8 Channel Outputs
LevelOne HDMI over Cat.5 Transmitter, 300m, 8 Channel Outputs
LevelOne HDMI over Cat.5 Transmitter, 300m, 8 Channel Outputs
LevelOne HDMI over Cat.5 Transmitter, 300m, 8 Channel Outputs
LevelOne HDMI over Cat.5 Transmitter, 300m, 8 Channel Outputs
LevelOne HDMI over Cat.5 Transmitter, 300m, 8 Channel Outputs
LevelOne HDMI over Cat.5 Transmitter, 300m, 8 Channel Outputs
LevelOne HDMI over Cat.5 Transmitter, 300m, 8 Channel Outputs
LevelOne HDMI over Cat.5 Transmitter, 300m, 8 Channel Outputs
LevelOne HDMI over Cat.5 Transmitter, 300m, 8 Channel Outputs
LevelOne HDMI over Cat.5 Transmitter, 300m, 8 Channel Outputs
R7,490
The LevelOne HVE-91 HDMI Extender series offers a ground-breaking solution for long range HDMI deployments, extending the range of Ultra/Full HD (4K/1080P) signal broadcasts up to 300 metres from the source. HDMI signals are distributed over Ethernet cables between the transmitters and receivers, pr... Read More
Stock Out Of StockNo Stock Code 111315 Brand LEVELONE Model HVE-9118T Warranty 2 Years

Shipping & Returns

The LevelOne HVE-91 HDMI Extender series offers a ground-breaking solution for long range HDMI deployments, extending the range of Ultra/Full HD (4K/1080P) signal broadcasts up to 300 metres from the source. HDMI signals are distributed over Ethernet cables between the transmitters and receivers, providing a crystal-clear, high-definition signal without the expense of using optical fiber.

The HVE-91 series features an in-built 4K Ultra HD video scaler, revolutionary technology which enables the user to find the optimal signal, regardless of the input specifications.

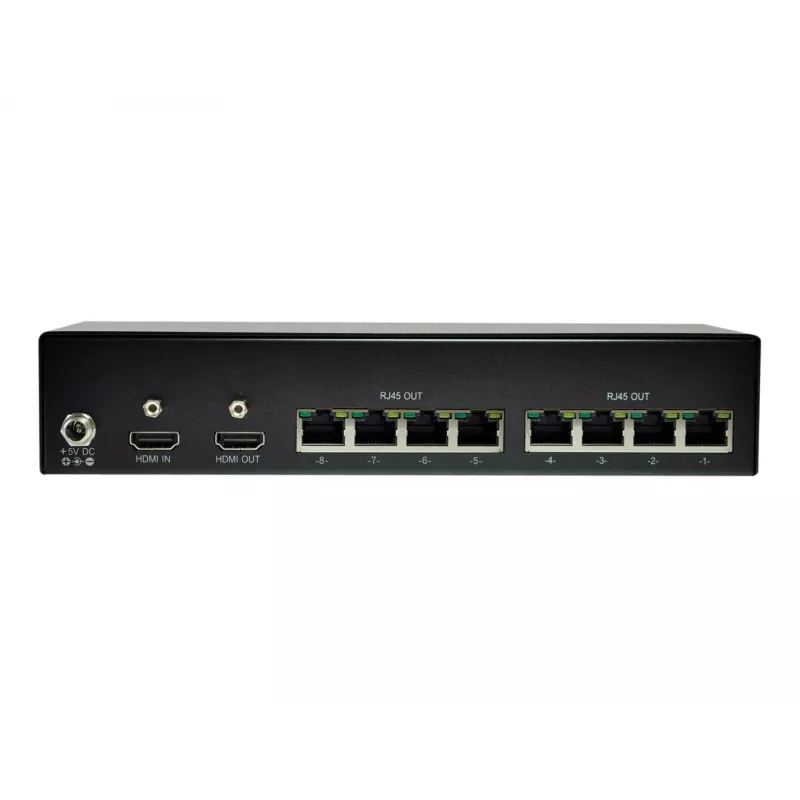

The LevelOne HVE-9118T is a HDMI Transmitter with 1 HDMI local output port and 8 link ports for connecting to 8 receivers.

- Screw-in power socket for added safety
- HDMI outputs with EDID management
- Transmission distance of up to 300m for 4k2k resolution

LevelOne HDMI over Cat.5 Transmitter, 300m, 8 Channel Outputs. Type: AV transmitter, Maximum resolution: 1920 x 1200 pixels, Cable types supported: Cat5. AC input voltage: 5 V, Input current: 2 A, Power consumption (transmitter) (max): 900 mA. Width: 90 mm, Depth: 220 mm, Height: 45 mm. Package dimensions (WxDxH): 173 x 305 x 122 mm, Package weight: 1.18 kg, Package type: Box. Cables included: AC

Key Highlights
  • AV transmitter 1920 x 1200 pixels Black
  • Maximum transfer distance: 300 m
  • 60 Hz
Specifications
AC adapter included
Yes
AC input voltage
5 V
Bandwidth
340 MHz
Cable types supported
Cat5
Cables included
AC
Country of origin
Taiwan
Depth
220 mm
HDCP & EDID bypass
Yes
HDMI in
1
Height
45 mm
Input current
2 A
LED indicators
Activity, Power
Master (outer) case gross weight
13 kg
Master (outer) case height
630 mm
Master (outer) case length
330 mm
Master (outer) case width
400 mm
Maximum refresh rate
60 Hz
Maximum resolution
1920 x 1200 pixels
Maximum transfer distance
300 m
Number of HDMI outputs
1
Operating relative humidity (H-H)
10 - 80%
Operating temperature (T-T)
0 - 48 °C
Package dimensions (WxDxH)
173 x 305 x 122 mm
Package type
Box
Package weight
1.18 kg
Power consumption (transmitter) (max)
900 mA
Product colour
Black
Products per master (outer) case
10 pc(s)
Quick start guide
Yes
RJ-45 output ports
8
Supported video modes
1080p
Transmitter dimensions (WxDxH)
220 x 83 x 44 mm
Transmitter weight
650 g
Type
AV transmitter
Weight
612 g
Width
90 mm

Leaflet

Open Leaflet

Manual

Open Manual

Document

Open Document
