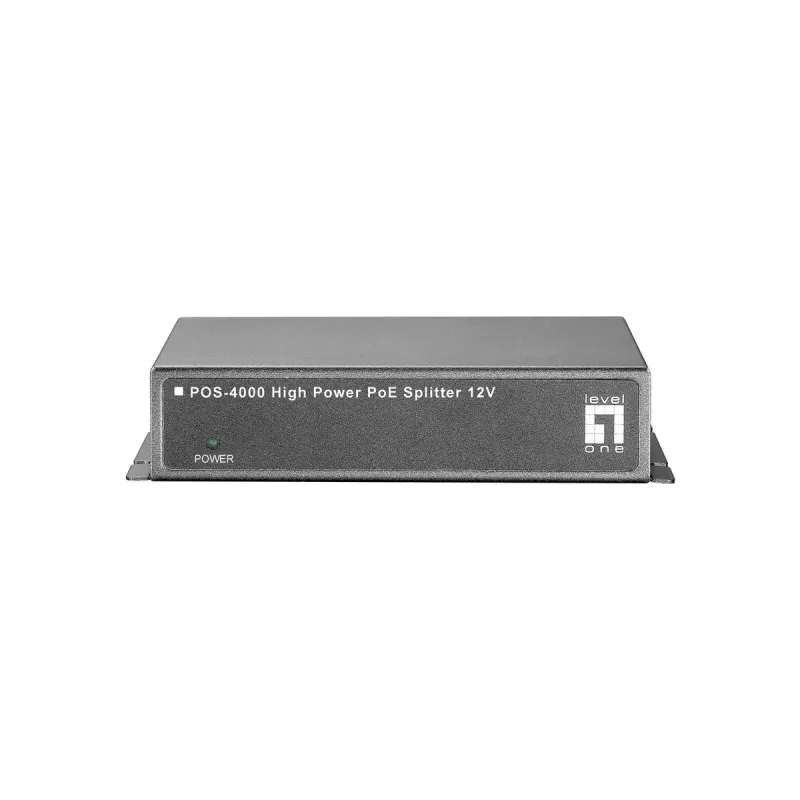

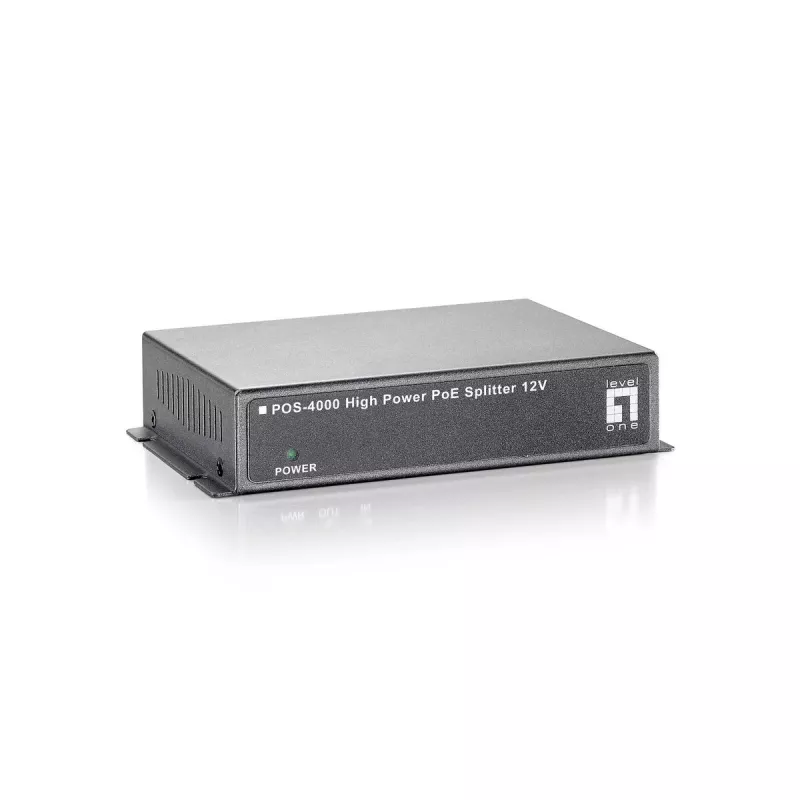

LevelOne Fast Ethernet High Power PoE Splitter, 12V DC Output

The LevelOne POS-4000 PoE Splitter provides a 12V DC power output to network devices that do not natively support Power over Ethernet or require higher power than standard PoE can deliver. Designed for use with high-power PoE injectors such as the POI-4000, FSW-0513 and POH-1260, the splitter supplies up to 12VDC at 2.5A (30W). It supports 10/100Base-T Fast Ethernet and complies with IEEE 802.3x standards. The compact grey unit (120 x 90 x 28 mm) is FCC and CE certified and is supplied as a single unit per pack.

Advantages

The POS-4000 enables high-power PoE connectivity for devices that require up to 30W while maintaining safety through internal current limiting, short-circuit and overload protection. Installation is plug-and-play, and when used with a POR-0100 PoE repeater the PoE reach can be extended by an additional 100 meters. Its compliance with IEEE standards and certification (FCC, CE) ensures predictable performance in Fast Ethernet environments.

Suitable for

• Powering non-PoE network devices that need a 12V DC supply
• Devices requiring up to 30W via PoE splitters (12VDC/2.5A)
• Network setups using 10/100Base-T (Fast Ethernet) cabling

Key specifications

• Model: POS-4000 (LevelOne)
• Output: 12V DC, 2.5A (max 30W)
• Compatible injectors: POI-4000, FSW-0513, POH-1260
• Ethernet: 10/100Base-T (IEEE 802.3x)
• Dimensions: 120 x 90 x 28 mm
• Colour: Grey
• Certifications: FCC Part 15, CE
• Pack contents: 1 unit

How to use

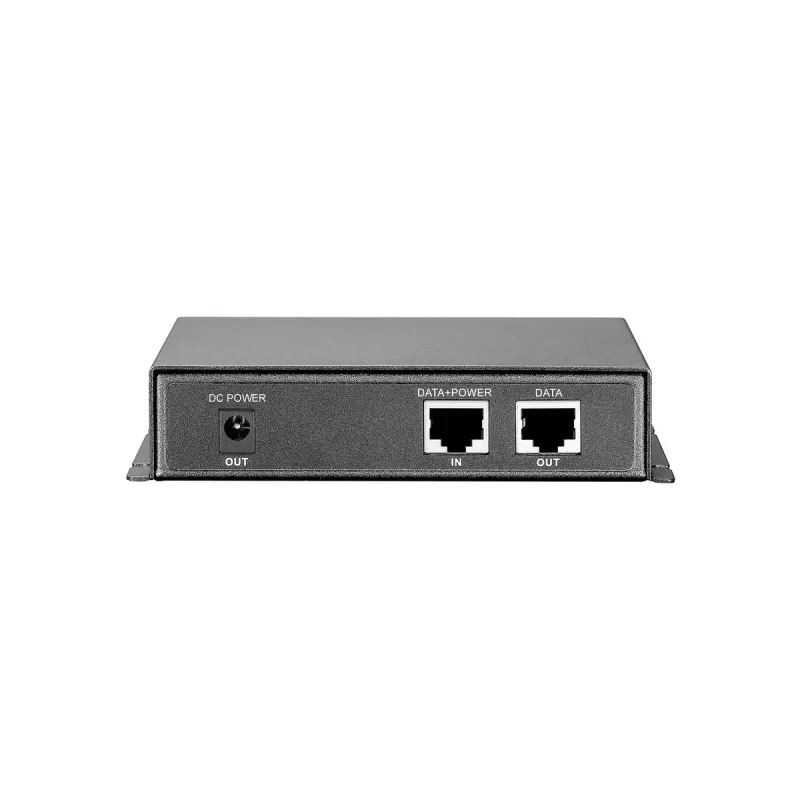

Connect the PoE-enabled cable from a compatible high-power PoE injector (e.g., POI-4000, FSW-0513 or POH-1260) to the POS-4000 input. Attach the splitter’s 12V DC output lead to the target network device that requires external power. The device is designed for plug-and-play operation with no additional configuration. If longer cable runs are needed, place a POR-0100 PoE repeater between the injector and splitter to extend the PoE distance by up to 100 meters.

Recommendations

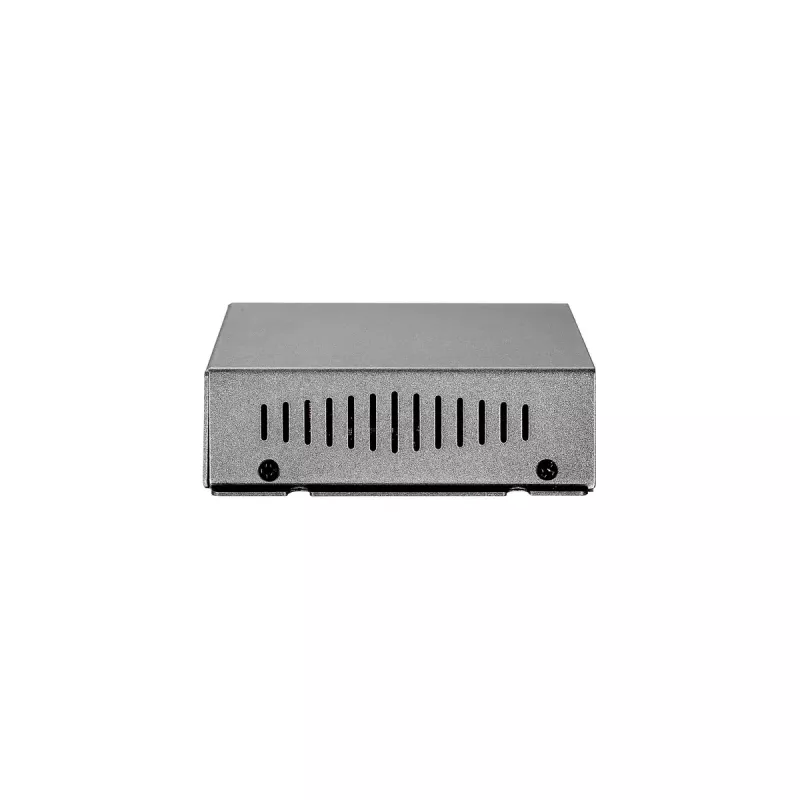

Use the POS-4000 with compatible high-power PoE injectors and verify the powered device accepts a 12V DC input and requires no more than 2.5A. Ensure cabling and environmental conditions meet Fast Ethernet installation standards and keep the unit in a ventilated area to avoid overheating.
