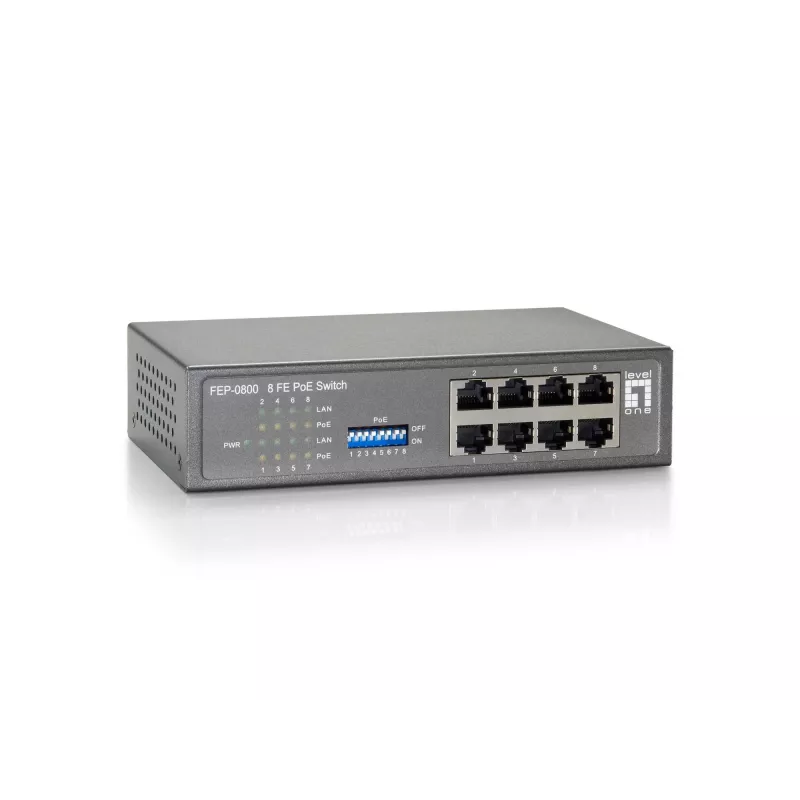

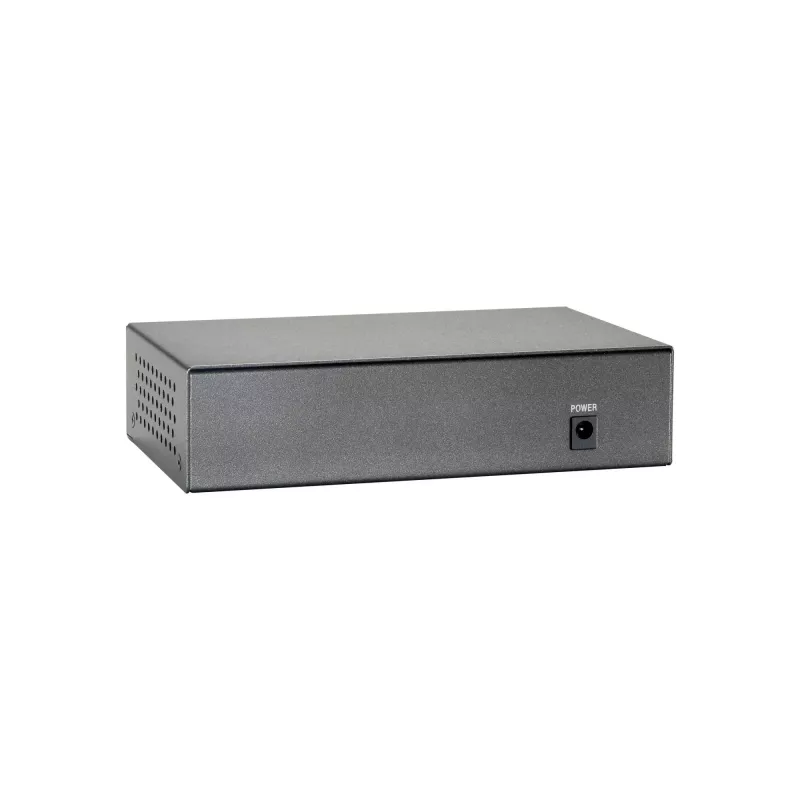

LevelOne 8-Port Fast Ethernet PoE Switch, 8 PoE Outputs, 65W

LevelOne 8-Port Fast Ethernet PoE Switch, 8 PoE Outputs, 65W
LevelOne 8-Port Fast Ethernet PoE Switch, 8 PoE Outputs, 65W
LevelOne 8-Port Fast Ethernet PoE Switch, 8 PoE Outputs, 65W
LevelOne 8-Port Fast Ethernet PoE Switch, 8 PoE Outputs, 65W
R30,067
FEP-0800 is a 8-port 10/100Mbps Fast Ethernet Switch with Power over Ethernet (PoE) capability. With 8 dip switches, each PoE port can be manually set for On-Off control. FEP-0800 supports up to 30W on each LAN port when the DIP switch is in the ON position . Using a LevelOne PoE repeater, it is pos... Read More
Stock Out Of StockNo Stock Code 2399271 Brand LEVELONE Model FEP-0800W65 Warranty 2 Years

Shipping & Returns

FEP-0800 is a 8-port 10/100Mbps Fast Ethernet Switch with Power over Ethernet (PoE) capability. With 8 dip switches, each PoE port can be manually set for On-Off control. FEP-0800 supports up to 30W on each LAN port when the DIP switch is in the ON position . Using a LevelOne PoE repeater, it is possible to extend the connection a further 100 meters, or even daisy-chain several PoE repeaters together for greater distances. Dual 10/100Mbps ports can connect with other edge switches or NVR as uplink ports.

Key Features
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- 10/100Mbps, full/half-duplex, auto-negotiation, auto-MDI/MDIX
- PoE on/off control per port by dip switches
- Total PoE power budget: 85W, up to 30W per port
- Simple Plug and Play installation

LevelOne 8-Port Fast Ethernet PoE Switch, 8 PoE Outputs, 65W. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 1000 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Power over Ethernet (PoE)

Key Highlights
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • 10BASE-T, 100BASE-TX
  • MAC address table: 1000 entries Switching capacity: 1.6 Gbit/s
  • Power over Ethernet (PoE)
Specifications
10G support
No
AC adapter included
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Buffer size
64 KB
Cables included
AC
Certification
FCC, CE, RoHS
Copper ethernet cabling technology
10BASE-T, 100BASE-TX
Country of origin
Taiwan
Depth
99 mm
Flow control support
Yes
Full duplex
Yes
Harmonized System (HS) code
85176990
Height
41 mm
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
LED indicators
Activity, PoE, Power
MAC address table
1000 entries
Manual
Yes
Master (outer) case gross weight
10 kg
Master (outer) case height
392 mm
Master (outer) case length
246 mm
Master (outer) case width
525 mm
Networking standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
On/off switch
Yes
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 45 °C
Package depth
230 mm
Package height
82 mm
Package type
Box
Package weight
1.6 kg
Package width
371 mm
Packet forwarding rate (10 Mbps)
14880 pps
Packet forwarding rate (100 Mbps)
148000 pps
Plug and Play
Yes
Power connector
DC-in jack
Power consumption (typical)
65 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
8
Power over Ethernet (PoE) power per port
30 W
Power protection features
Over current
Product colour
Grey
Products per master (outer) case
6 pc(s)
Rack mounting
No
Storage relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 75 °C
Store-and-forward
Yes
Switching capacity
1.6 Gbit/s
Total Power over Ethernet (PoE) budget
60 W
Weight
1.4 kg
Width
165 mm

Leaflet

Open Leaflet

Manual

Open Manual

Document

Open Document
