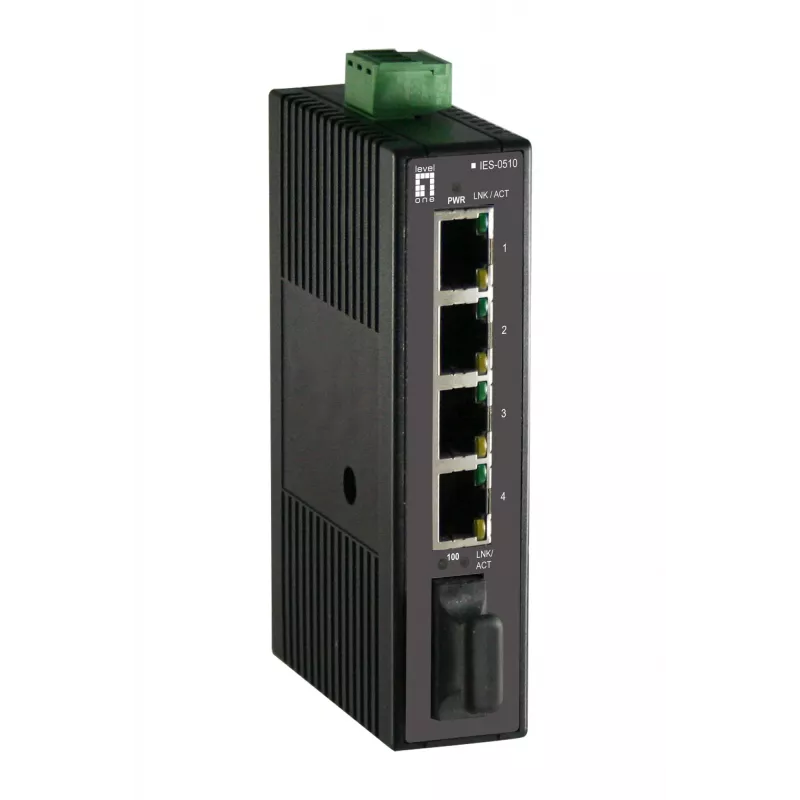

LevelOne 5-Port Fast Ethernet Industrial Switch, DIN-Rail, 1 x SC Multi-Mode Fiber, -20°C to 70°C

LevelOne 5-Port Fast Ethernet Industrial Switch, DIN-Rail, 1 x SC Multi-Mode Fiber, -20°C to 70°C
LevelOne 5-Port Fast Ethernet Industrial Switch, DIN-Rail, 1 x SC Multi-Mode Fiber, -20°C to 70°C
R4,347
LevelOne IES-0510 Industry Ethernet Switch provides 4 ports of 10/100Base-TX Ethernet plus 1 port 100FX Multimode SC fiber to enable high speed network at mission-critical environment. This device is designed to be mounted on an industry standard DIN-rail, plus the clearly visible status LEDs provid... Read More
Stock 6 Code 111270 Brand LEVELONE Model IES-0510 Warranty 2 Years

Shipping & Returns

Estimated delivery Friday, October 9
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
LevelOne IES-0510 Industry Ethernet Switch provides 4 ports of 10/100Base-TX Ethernet plus 1 port 100FX Multimode SC fiber to enable high speed network at mission-critical environment. This device is designed to be mounted on an industry standard DIN-rail, plus the clearly visible status LEDs provide simple monitoring of port link activity.

Cost Effective
This device operates under -10 to 60 Celsius (-14 to 140 Fahrenheit) temperature that offers optimal suitability for industrial applications at low cost while maintaining all components built to withstand harsh environment applications without compromise reliability and stability.

Safety
With UL60950 standard complied that gives basic protection against electric shock, fire spread from within, ignition and burning, current circuit hazardous under normal and fault condition. As well as set of compliances to meet many EMC, isolation, vibration and shock standards.

Plug & Play
This device is designed for the demanding industrial environments at businesses in need of instant connectivity with no setup or configure required, truly plug and play.

LevelOne 5-Port Fast Ethernet Industrial Switch, DIN-Rail, 1 x SC Multi-Mode Fiber, -20°C to 70°C. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 2048 entries. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x

Key Highlights
  • Unmanaged
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 4
  • 10BASE-T, 100BASE-TX
  • MAC address table: 2048 entries
Specifications
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Basic switching RJ-45 Ethernet ports quantity
4
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Certification
ISO9001 FCC Part 15 EN61000-6-4 EN55022 EN61000-3-2 EN61000-3-3 EN61000-6-2 EN61000-4-2 EN61000-4-3 EN61000-4-4 EN61000-4-5 EN61000-4-6 EN61000-4-8 IEC60068-2-6 Fc IEC60068-2-27 Ea IEC60068-2-32 Ed
Copper ethernet cabling technology
10BASE-T, 100BASE-TX
Country of origin
Taiwan
Depth
70 mm
Fiber ethernet cabling technology
100BASE-FX
Fiber optic connector
SC
Fiber type
Multi-mode
Full duplex
Yes
Harmonized System (HS) code
85176990
Height
110 mm
Housing material
Plastic
Input voltage
12 - 48 V
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
International Protection (IP) code
IP30
LED indicators
Activity, Link, Speed
MAC address table
2048 entries
Mean time between failures (MTBF)
1071085 h
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-10 - 60 °C
Package depth
79 mm
Package height
221 mm
Package type
Box
Package weight
460 g
Package width
180 mm
Packet buffer memory
0.384 MB
Packet forwarding rate (10 Mbps)
14880 pps
Packet forwarding rate (100 Mbps)
148810 pps
Power consumption (max)
4.3 W
Power over Ethernet (PoE)
No
Product colour
Black
Quality of Service (QoS) support
Yes
Quick start guide
Yes
Safety
UL60950-1
Storage temperature (T-T)
-25 - 85 °C
Store-and-forward
Yes
Switch type
Unmanaged
Weight
200 g
Width
26 mm
