LevelOne 20-Port L2 Plus Managed Industrial Switch, 8 x 1GbE RJ45, 8 x 1GbE SFP, 4 x 1/2.5/10GbE SFP+, DIN-Rail, -40°C to 80°C

LevelOne 20-Port L2 Plus Managed Industrial Switch, 8 x 1GbE RJ45, 8 x 1GbE SFP, 4 x 1/2.5/10GbE SFP+, DIN-Rail, -40°C to 80°C
LevelOne 20-Port L2 Plus Managed Industrial Switch, 8 x 1GbE RJ45, 8 x 1GbE SFP, 4 x 1/2.5/10GbE SFP+, DIN-Rail, -40°C to 80°C
LevelOne 20-Port L2 Plus Managed Industrial Switch, 8 x 1GbE RJ45, 8 x 1GbE SFP, 4 x 1/2.5/10GbE SFP+, DIN-Rail, -40°C to 80°C
LevelOne 20-Port L2 Plus Managed Industrial Switch, 8 x 1GbE RJ45, 8 x 1GbE SFP, 4 x 1/2.5/10GbE SFP+, DIN-Rail, -40°C to 80°C
LevelOne 20-Port L2 Plus Managed Industrial Switch, 8 x 1GbE RJ45, 8 x 1GbE SFP, 4 x 1/2.5/10GbE SFP+, DIN-Rail, -40°C to 80°C
LevelOne 20-Port L2 Plus Managed Industrial Switch, 8 x 1GbE RJ45, 8 x 1GbE SFP, 4 x 1/2.5/10GbE SFP+, DIN-Rail, -40°C to 80°C
LevelOne 20-Port L2 Plus Managed Industrial Switch, 8 x 1GbE RJ45, 8 x 1GbE SFP, 4 x 1/2.5/10GbE SFP+, DIN-Rail, -40°C to 80°C
LevelOne 20-Port L2 Plus Managed Industrial Switch, 8 x 1GbE RJ45, 8 x 1GbE SFP, 4 x 1/2.5/10GbE SFP+, DIN-Rail, -40°C to 80°C
R17,727
The LevelOne IGX-2072 is a rugged design L2+ managed industrial Ethernet switch designed for demanding environments. With its 8 Gigabit RJ45 ports, 8 Gigabit SFP ports, and 4 10-Gigabit SFP+ ports, it offers comprehensive Layer 2 management and rapid failover capabilities. This switch ensures uninte... Read More
Stock 14 Code 111406 Brand LEVELONE Model IGX-2072 Warranty 2 Years

Shipping & Returns

Estimated delivery Friday, October 2
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
The LevelOne IGX-2072 is a rugged design L2+ managed industrial Ethernet switch designed for demanding environments. With its 8 Gigabit RJ45 ports, 8 Gigabit SFP ports, and 4 10-Gigabit SFP+ ports, it offers comprehensive Layer 2 management and rapid failover capabilities. This switch ensures uninterrupted operations with its ERPS redundant network, boasting a sub-20ms recovery time, it offers exceptional connectivity and bandwidth for mission-critical industrial applications.

LevelOne 20-Port L2 Plus Managed Industrial Switch, 8 x 1GbE RJ45, 8 x 1GbE SFP, 4 x 1/2.5/10GbE SFP+, DIN-Rail, -40°C to 80°C. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 112 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE...

Key Highlights
  • Offers comprehensive connectivity with 8 10/100/1000Base-T RJ45, 8 100/1000Base-X SFP ports and 4 1G/2.5G/10GBase-X SFP+ ports.

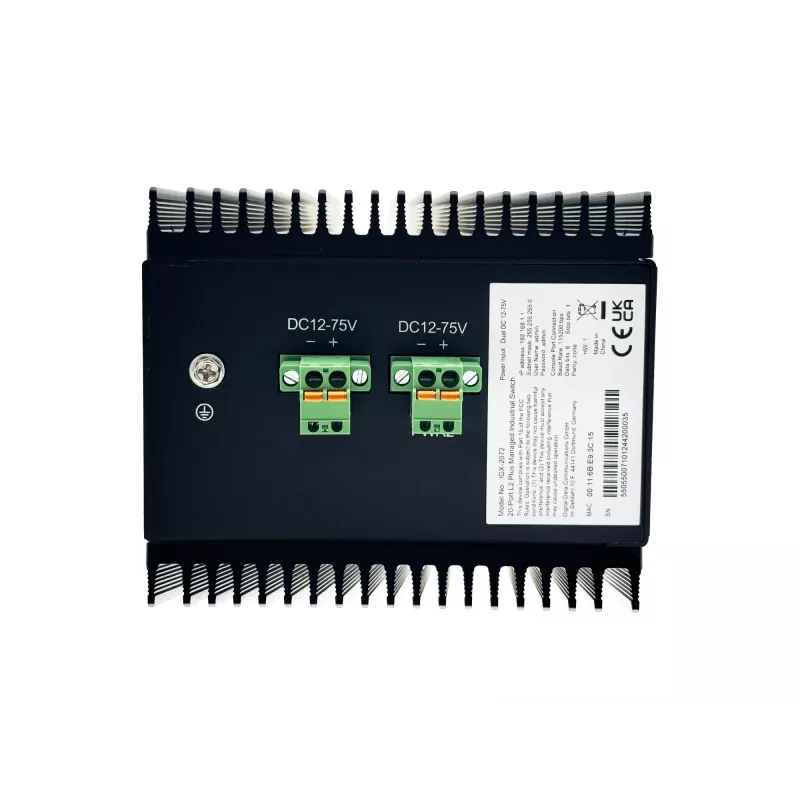

  • Ensures reliable operation with redundant 12-75V DC power supply, advanced surge protection (6KV), and ESD protection (Air-15kV, Contact-8kV).
  • Designed for harsh environments with fanless IP40 Din-rail enclosure and wide operating temperature range (-40°C to +80°C).
  • Delivers uninterrupted operation through G.8032 ERPS protocol with <20ms recovery time.
  • Supports advanced Layer 2 features including VLAN, STP/RSTP/MSTP, Link Aggregation, QoS, and IGMP Snooping for optimized network performance.
  • Offers robust management options through Web, SNMP, CLI, Telnet, and SSH interfaces.
  • Provides enhanced security with 802.1X authentication, port isolation, and ACL.
  • Enables advanced network routing with IPv4/IPv6 static routing and DHCP server.
  • Managed L2+ Web-based management
  • Quality of Service (QoS) support Configuring Location Settings (CLI)
  • Basic switching RJ-45 Ethernet ports quantity: 8 Console port: RJ-45
  • 10G support
  • MAC address table: 16000 entries Switching capacity: 112 Gbit/s
  • Access Control List (ACL)
  • DC
Specifications
10G support
Yes
Access Control List (ACL)
Yes
ARP inspection
Yes
Authentication type
IEEE 802.1x
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Broadcast storm control
Yes
Cable length detection
Yes
Cables included
LAN (RJ-45) to DB9
Compliance certificates
UKCA, Federal Communications Commission (FCC), RoHS, CE
Configuring Location Settings (CLI)
Yes
Console port
RJ-45
Country of origin
China
Depth
115 mm
DHCP features
DHCP server
DIN rail included
Yes
DIN rail mounting
Yes
Dying Gasp
Yes
Ethernet Ring Protection Switching (ERPS)
Yes
Fanless
Yes
Firmware upgradeable
Yes
Flow control support
Yes
GARP VLAN Registration Protocol (GVRP)
Yes
Gigabit Ethernet (copper) ports quantity
8
Harmonized System (HS) code
851762
Height
158 mm
IGMP snooping
Yes
Input voltage
12 - 75 V
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
International Protection (IP) code
IP40
IP Source Guard (IPSG)
Yes
IP-MAC-Port binding
Yes
Jumbo frames
10000
Jumbo frames support
Yes
LED indicators
Ring, System, USB
Link aggregation
Yes
Loop protection
Yes
MAC address filtering
Yes
MAC address table
16000 entries
Master (outer) case gross weight
15 kg
Master (outer) case height
255 mm
Master (outer) case length
375 mm
Master (outer) case width
440 mm
Mean time between failures (MTBF)
200000 h
Multicast support
Yes
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-40 - 80 °C
Package depth
180 mm
Package height
138 mm
Package weight
2.12 kg
Package width
232 mm
Packet buffer memory
12 MB
Packet filtering
Y
Pallet gross height
167.4 cm
Pallet gross length
80 cm
Pallet gross width
120 cm
Password protection
Yes
Port mirroring
Yes
Power consumption (max)
27 W
Power over Ethernet (PoE)
No
Power source
DC
Product colour
Black
Products per master (outer) case
6 pc(s)
Quality of Service (QoS) support
Yes
Queue scheduling algorithms
SP, Weighted Round Robin (WRR)
Quick start guide
Yes
Rate limiting
Yes
Redundant power supply (RPS) support
Yes
Security algorithms
HTTPS
SFP module slots quantity
8
SFP+ module slots quantity
4
Spanning tree protocol
Yes
Static route
Yes
Storage relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-40 - 85 °C
Surge protection
Yes
Surge protection voltage
6 kV
Switch layer
L2+
Switch type
Managed
Switching capacity
112 Gbit/s
System event log
Yes
Telnet
Yes
Terminal block port
Yes
USB Type-A ports quantity
1
Virtual LAN features
IP subnet–based VLAN, MAC address-based VLAN, Protocol-based VLAN, Stacked VLAN, VLAN mapping
VLAN support
Yes
Web-based management
Yes
Weight
1.79 kg
Width
110 mm

Manual

Open Manual

Document

Open Document

Leaflet

Open Leaflet
