LevelOne 10-Port Fast Ethernet PoE Switch, 1 x Gigabit RJ45, 1 x Gigabit SFP, 8 PoE Outputs, 120W

LevelOne 10-Port Fast Ethernet PoE Switch, 1 x Gigabit RJ45, 1 x Gigabit SFP, 8 PoE Outputs, 120W
LevelOne 10-Port Fast Ethernet PoE Switch, 1 x Gigabit RJ45, 1 x Gigabit SFP, 8 PoE Outputs, 120W
LevelOne 10-Port Fast Ethernet PoE Switch, 1 x Gigabit RJ45, 1 x Gigabit SFP, 8 PoE Outputs, 120W
LevelOne 10-Port Fast Ethernet PoE Switch, 1 x Gigabit RJ45, 1 x Gigabit SFP, 8 PoE Outputs, 120W
LevelOne 10-Port Fast Ethernet PoE Switch, 1 x Gigabit RJ45, 1 x Gigabit SFP, 8 PoE Outputs, 120W
LevelOne 10-Port Fast Ethernet PoE Switch, 1 x Gigabit RJ45, 1 x Gigabit SFP, 8 PoE Outputs, 120W
R3,810
FGP-1000 is a 8-port 10/100Mbps Fast Ethernet Switch with Power over Ethernet (PoE) capability. With 8 dip switches, each PoE port can be manually set for On-Off control. FGP-1000 supports up to 30W on each LAN port when the DIP switch is in the ON position . Using a LevelOne PoE repeater, it is pos... Read More
Stock 20 Code 880356 Brand LEVELONE Model FGP-1000 Warranty 2 Years

Shipping & Returns

Estimated delivery Friday, October 9
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

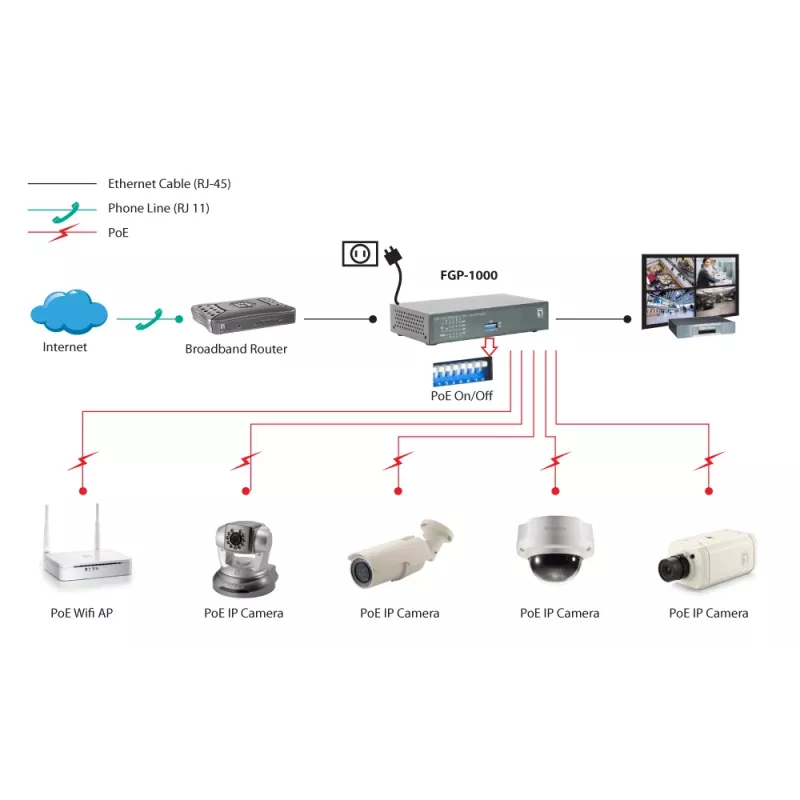

FGP-1000 is a 8-port 10/100Mbps Fast Ethernet Switch with Power over Ethernet (PoE) capability. With 8 dip switches, each PoE port can be manually set for On-Off control. FGP-1000 supports up to 30W on each LAN port when the DIP switch is in the ON position . Using a LevelOne PoE repeater, it is possible to extend the connection a further 100 meters, or even daisy-chain several PoE repeaters together for greater distances. Dual 10/100Mbps ports can connect with other edge switches or NVR as uplink ports.

- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- PoE on/off control per port by dip switches
- Total PoE power budget: 120W, up to 30W per port
- Simple Plug and Play installation

LevelOne 10-Port Fast Ethernet PoE Switch, 1 x Gigabit RJ45, 1 x Gigabit SFP, 8 PoE Outputs, 120W. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 9. Full duplex. MAC address table: 4096 entries, Switching capacity: 5.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Power over Ethernet (PoE)

Key Highlights
  • Basic switching RJ-45 Ethernet ports quantity: 9
  • 10BASE-T, 100BASE-TX, 1000BASE-T
  • MAC address table: 4096 entries Switching capacity: 5.6 Gbit/s
  • Power supply included Power over Ethernet (PoE)
Specifications
10G support
No
AC adapter included
Yes
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Basic switching RJ-45 Ethernet ports quantity
9
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Buffer size
512 KB
Certification
FCC, CE, RoHS
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Country of origin
Taiwan
Depth
118 mm
Fiber ethernet cabling technology
1000BASE-X
Fiber optic connector
SFP
Fiber type
Single-mode
Full duplex
Yes
Harmonized System (HS) code
85176990
Height
38 mm
LED indicators
Activity, LAN, PoE, Power
MAC address table
4096 entries
Manual
Yes
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
On/off switch
Yes
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 45 °C
Output voltage
52 V
Package depth
146 mm
Package height
78 mm
Package weight
1.7 kg
Package width
222 mm
Packet forwarding rate (1 Gbps)
1488000 pps
Packet forwarding rate (10 Mbps)
14880 pps
Packet forwarding rate (100 Mbps)
148000 pps
Power connector
DC-in jack
Power consumption (typical)
120 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
9
Power over Ethernet (PoE) power per port
30 W
Power protection features
Over current, Short circuit
Power supply included
Yes
Product colour
Black, Grey
Rack mounting
No
SFP module slots quantity
1
Stackable
No
Storage relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 70 °C
Store-and-forward
Yes
Switching capacity
5.6 Gbit/s
Total Power over Ethernet (PoE) budget
115 W
Weight
1.5 kg
Width
188 mm
