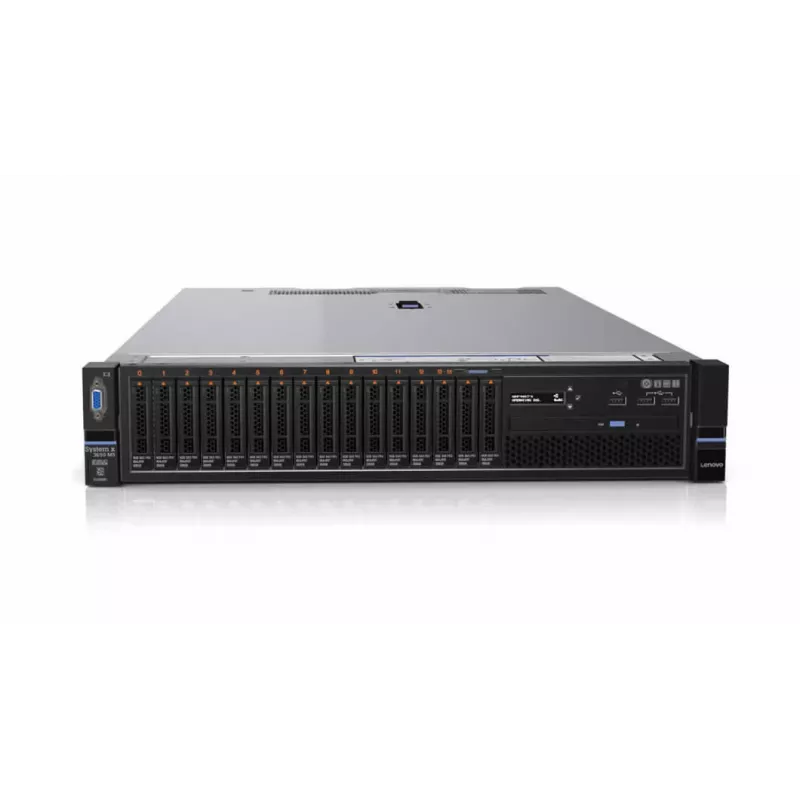

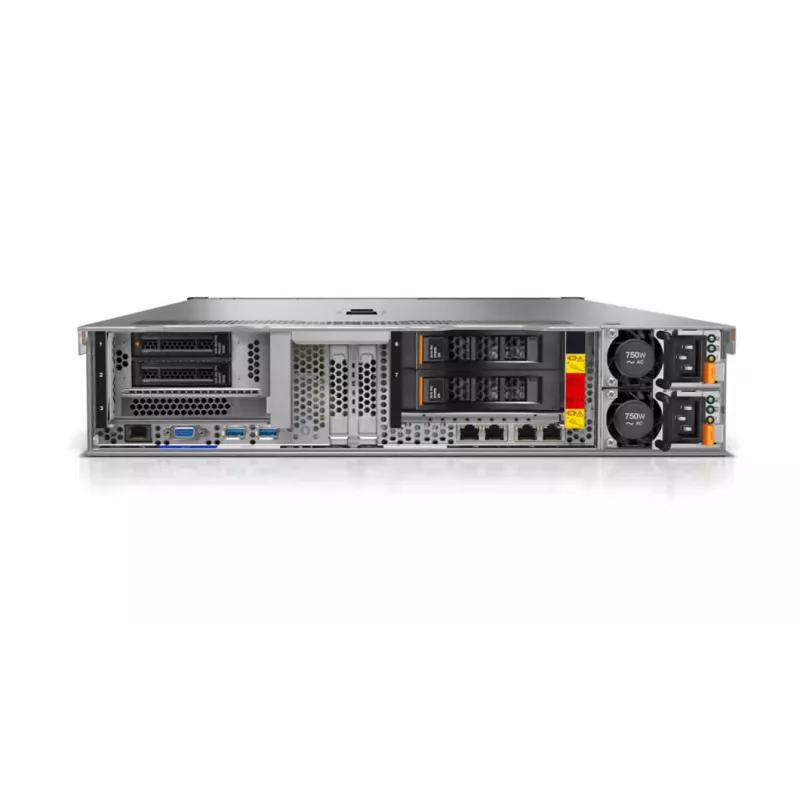

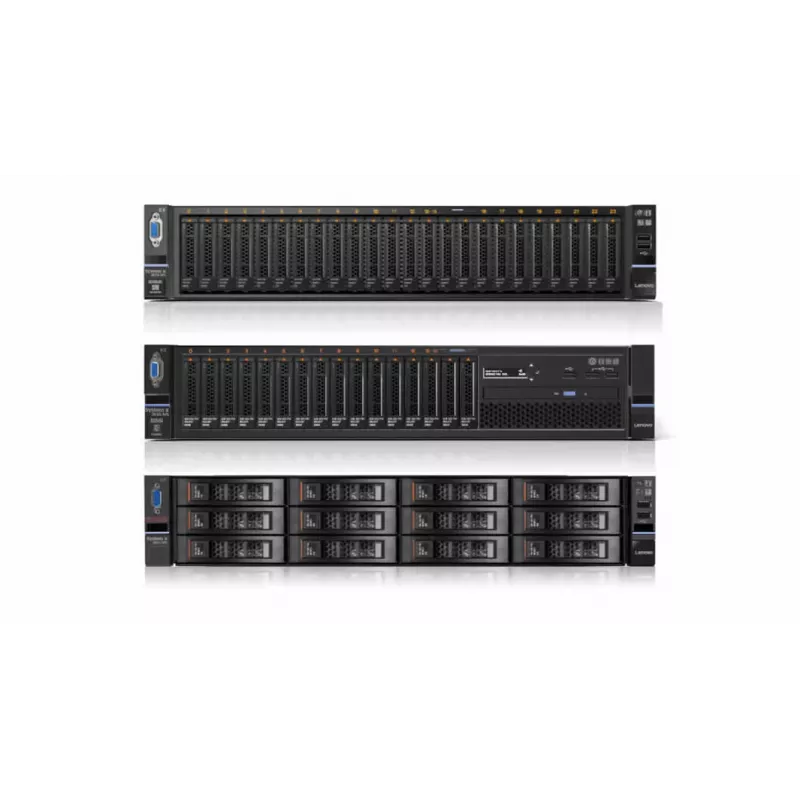

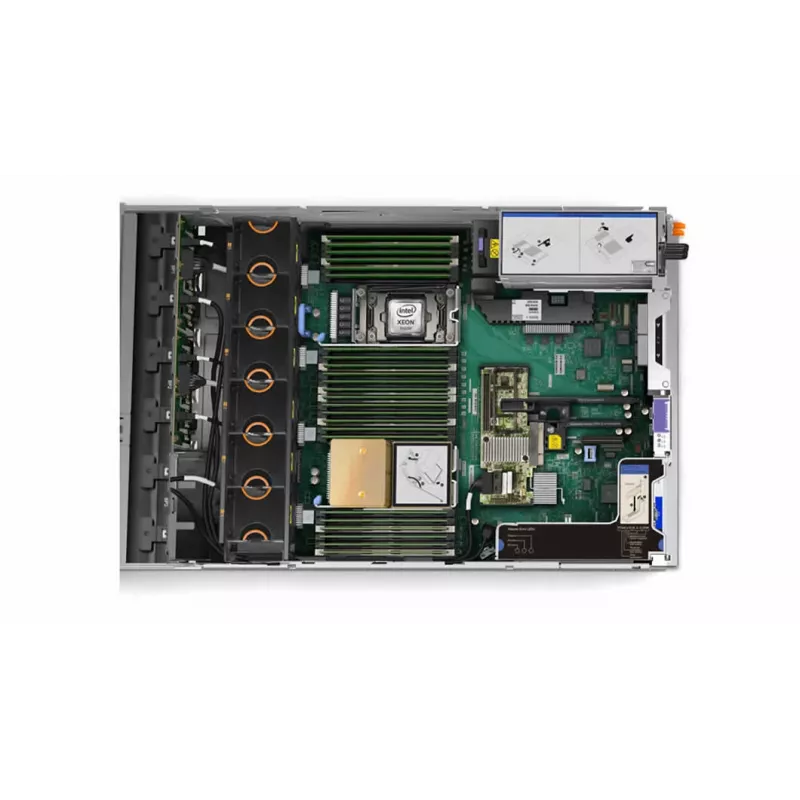

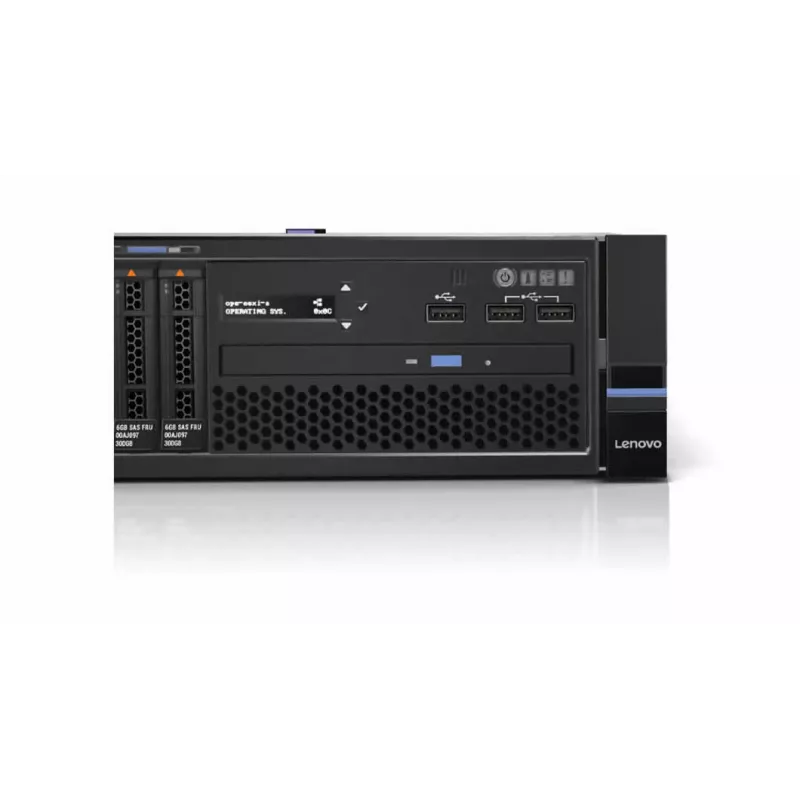

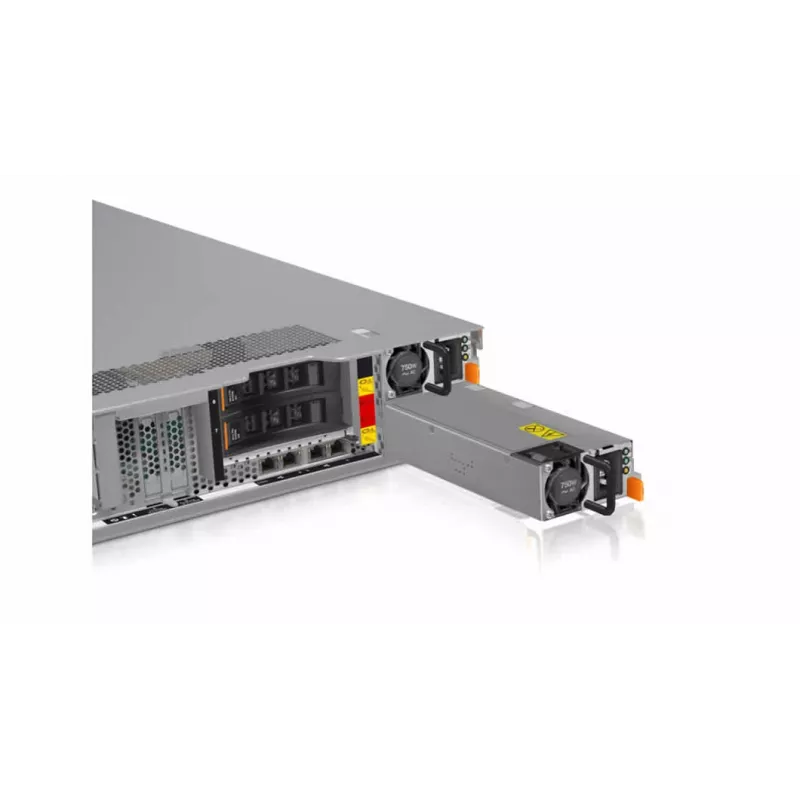

Lenovo System x3650 M5 server 0 GB Rack (2U) Intel® Xeon® E5 v4 E5-2620V4 2.1 GHz 16 GB DDR4-SDRAM 750 W

Lenovo System x3650 M5 server 0 GB Rack (2U) Intel® Xeon® E5 v4 E5-2620V4 2.1 GHz 16 GB DDR4-SDRAM 750 W
Lenovo System x3650 M5 server 0 GB Rack (2U) Intel® Xeon® E5 v4 E5-2620V4 2.1 GHz 16 GB DDR4-SDRAM 750 W
Lenovo System x3650 M5 server 0 GB Rack (2U) Intel® Xeon® E5 v4 E5-2620V4 2.1 GHz 16 GB DDR4-SDRAM 750 W
Lenovo System x3650 M5 server 0 GB Rack (2U) Intel® Xeon® E5 v4 E5-2620V4 2.1 GHz 16 GB DDR4-SDRAM 750 W
Lenovo System x3650 M5 server 0 GB Rack (2U) Intel® Xeon® E5 v4 E5-2620V4 2.1 GHz 16 GB DDR4-SDRAM 750 W
Lenovo System x3650 M5 server 0 GB Rack (2U) Intel® Xeon® E5 v4 E5-2620V4 2.1 GHz 16 GB DDR4-SDRAM 750 W
Lenovo System x3650 M5 server 0 GB Rack (2U) Intel® Xeon® E5 v4 E5-2620V4 2.1 GHz 16 GB DDR4-SDRAM 750 W
Lenovo System x3650 M5 server 0 GB Rack (2U) Intel® Xeon® E5 v4 E5-2620V4 2.1 GHz 16 GB DDR4-SDRAM 750 W
Lenovo System x3650 M5 server 0 GB Rack (2U) Intel® Xeon® E5 v4 E5-2620V4 2.1 GHz 16 GB DDR4-SDRAM 750 W
Lenovo System x3650 M5 server 0 GB Rack (2U) Intel® Xeon® E5 v4 E5-2620V4 2.1 GHz 16 GB DDR4-SDRAM 750 W
Lenovo System x3650 M5 server 0 GB Rack (2U) Intel® Xeon® E5 v4 E5-2620V4 2.1 GHz 16 GB DDR4-SDRAM 750 W
Lenovo System x3650 M5 server 0 GB Rack (2U) Intel® Xeon® E5 v4 E5-2620V4 2.1 GHz 16 GB DDR4-SDRAM 750 W
R8,127
Highlights- Tackle enterprise workloads with power, efficiency and reliability- Choose from flexible storage configurations for workload-optimized performance- Leverage the massive capacity (up to 120TB) to run Big Data and storage-hungry workloads- Reduce unplanned downtime and minimize costs- Simp... Read More
Stock Out Of StockNo Stock Code 1730102 Brand LENOVO Model 8871EJG Warranty 2 Years

Shipping & Returns

Highlights
- Tackle enterprise workloads with power, efficiency and reliability
- Choose from flexible storage configurations for workload-optimized performance
- Leverage the massive capacity (up to 120TB) to run Big Data and storage-hungry workloads
- Reduce unplanned downtime and minimize costs
- Simplify server management with Lenovo XClarity
- Safeguard enterprise data with built-in Lenovo Trusted Platform Assurance, plus optional self-encrypting drives and IBM Security Key Lifecycle Manager
- Gain superior performance with Intel Xeon E5-2600 v4 processors (up to 44 cores per server), end-to-end 12Gbps RAID support—devices and infrastructure—up to four RAID adapters, up to eight front-mounted NVMe PCIe SSDs and up to four GPUs
- Reduce data center costs with smart energy-efficient features, including extended operating temperature, 80 PLUS® Titanium power supplies (up to 96 percent efficiency), active/standby power supply modes, dual fan zone design, and TruDDR4 Memory (up to 45 percent lower energy use over DDR3), optional Lenovo XClarity Energy Manager
- Run more virtual machines and workloads with up to 22 percent more cores than previous generation

Power Forward

With the powerful, versatile 2U two-socket System x3650 M5 rack server, you can run even more enterprise workloads, 24/7, and gain faster business insights. Integrated with up to two Intel® Xeon® processors E5-2600 v4 series (up to 44 cores per system), fast TruDDR4 2400MHz Memory, and massive storage capacity, the x3650 M5 fast forwards your business. You can select from an impressive array of storage configurations (up to 28 drive bays) that optimize diverse workloads from Cloud to Big Data.

Lenovo System x3650 M5. Processor family: Intel® Xeon® E5 v4, Processor frequency: 2.1 GHz, Processor model: E5-2620V4. Internal memory: 16 GB, Internal memory type: DDR4-SDRAM, Memory layout (slots x size): 1 x 16 GB. Total storage capacity: 0 GB, HDD size: 2.5", HDD interface: Serial ATA III, Serial Attached SCSI (SAS). Ethernet LAN, Cabling technology: 10/100/1000Base-T(X). Power supply: 750 W, Redundant power supply (RPS) support. Chassis type: Rack (2U)

Key Highlights
  • Intel® Xeon® E5 v4 E5-2620V4 2.1 GHz
  • 16 GB 2400 MHz DDR4-SDRAM 1 x 16
  • Rack (2U) 750 W
Specifications
Bus type
QPI
Cabling technology
10/100/1000Base-T(X)
Chassis type
Rack (2U)
Compatible operating systems
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Conflict-Free processor
Yes
CPU configuration (max)
2
ECC
Yes
ECC supported by processor
Yes
Embedded options available
Yes
Enhanced Intel SpeedStep Technology
Yes
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
4
Execute Disable Bit
Yes
Harmonized System (HS) code
84714100
HDD interface
Serial ATA III, Serial Attached SCSI (SAS)
HDD size
2.5"
Hot-swap
Yes
Idle States
Yes
Intel 64
Yes
Intel Demand Based Switching
Yes
Intel Enhanced Halt State
Yes
Intel Flex Memory Access
No
Intel Identity Protection Technology version
0.00
Intel Secure Key Technology version
1.00
Intel Trusted Execution Technology
Yes
Intel TSX-NI
Yes
Intel TSX-NI version
1.00
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® Identity Protection Technology (Intel® IPT)
No
Intel® OS Guard
Yes
Intel® Secure Key
Yes
Intel® Turbo Boost Technology
2.0
Internal memory
16 GB
Internal memory type
DDR4-SDRAM
Maximum internal memory
1.5 TB
Maximum internal memory supported by processor
1.53 TB
Maximum number of PCI Express lanes
40
Memory bandwidth supported by processor (max)
68.3 GB/s
Memory channels supported by processor
Quad
Memory clock speed
2400 MHz
Memory clock speeds supported by processor
1600,1866,2133 MHz
Memory layout (slots x size)
1 x 16 GB
Memory types supported by processor
DDR4-SDRAM
Number of HDDs installed
0
Number of processors installed
1
Number of QPI links
2
Number of redundant power supplies supported
2
Operating system installed
No
Optical drive type
No
PCI Express slots version
3.0
Physical Address Extension (PAE)
46 bit
Power supply
750 W
Processor ARK ID
92986
Processor boost frequency
3 GHz
Processor cache
20 MB
Processor cache type
Smart Cache
Processor code
SR2R6
Processor codename
Broadwell
Processor cores
8
Processor family
Intel Xeon E5 v4
Processor frequency
2.1 GHz
Processor lithography
14 nm
Processor manufacturer
Intel
Processor model
E5-2620V4
Processor operating modes
64-bit
Processor package size
45 x 52.5 mm
Processor series
Intel Xeon E5-2600 v4
Processor socket
LGA 2011-v3
Processor threads
16
Rack mounting
Yes
RAID levels
0, 1, 10
RAID support
Yes
Redundant power supply (RPS) support
Yes
Scalability
2S
Serial ports quantity
0
SSD interface
Serial Attached SCSI (SAS)
Stepping
R0
Supported instruction sets
AVX 2.0
Supported RAID controllers
M5210
System bus rate
8 GT/s
Tcase
74 °C
Thermal Design Power (TDP)
85 W
Thermal Monitoring Technologies
Yes
Total storage capacity
0 GB
Trusted Platform Module (TPM)
Yes
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
VGA (D-Sub) ports quantity
0

Leaflet

Open Leaflet
Price history is not available yet
We are still collecting enough daily price data for this product.

Independent reviews by tech media

itpro.co.ukDave
10/10

Verdict: A powerful, highly expandable 2U rack server made even better with Lenovo's new server management software...

Pros
  • Impressive storage features
  • Fast processors
  • Top build quality, xClarity management platform
  • Good value
Cons
  • Basic IMM2 interface
Read the full review at itpro.co.uk →
itpro.co.ukDave
8/10

Verdict: The x3650 M5 packs plenty into its 2U shell and is capable of handling a wide variety of tasks. Remote management and OS deployment need improving but Lenovo will be getting its hands on a very versatile rack server....

Pros
  • Good value
  • Super build quality
  • Extensive storage options
  • IBM's TPA security
  • Power efficient
Cons
  • IMM2 is basic
  • ServerGuide still not retired
Read the full review at itpro.co.uk →
