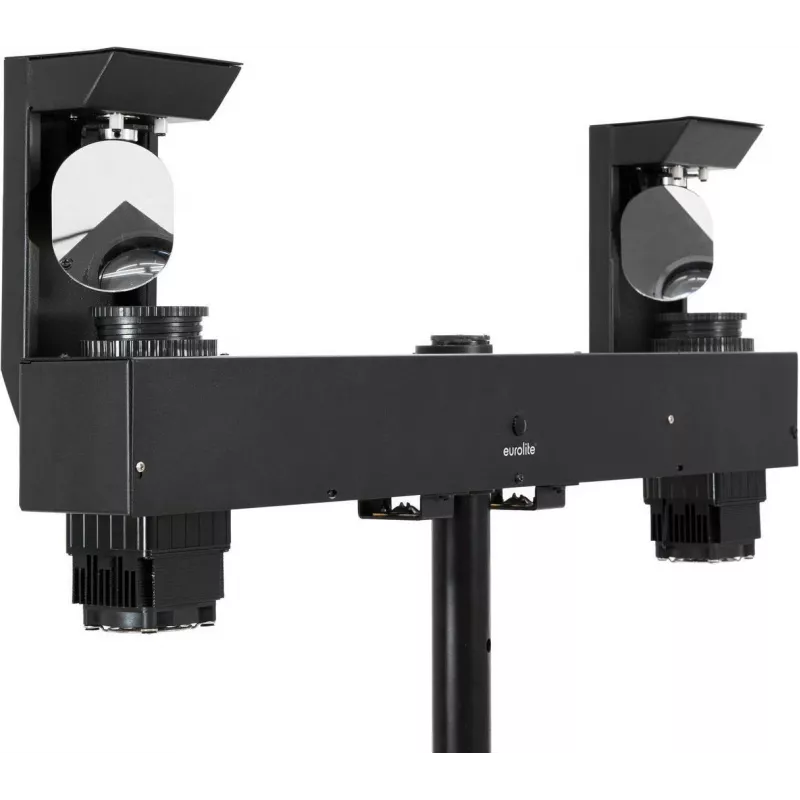

LED Twin Scan Bar EUROLITE 51786200 DMX control 2x10W LED scanning bar

The EUROLITE 51786200 LED Twin Scan Bar is a compact dual-head scanning fixture that produces dynamic moving-beam effects using two 10W LEDs and DMX control. Designed for stage, club and event lighting, the unit provides fast scanning, adjustable beam direction and programmable movement patterns. Its small footprint and twin-head layout allow flexible placement for accent lighting, stage washes and animated light shows while maintaining straightforward integration into existing DMX setups.

Advantages

The twin-head arrangement delivers synchronized or independent scanning effects, enabling more complex patterns from a single fixture. DMX control ensures precise positioning and timing within multi-fixture setups, and the LED light sources provide long operating life with lower power consumption compared to traditional lamps. The compact housing simplifies mounting in confined spaces and reduces visual obstruction on stage or truss installations.

Suitable for

Key specifications

How to use

Connect the fixture to a DMX controller following standard DMX wiring practices and assign DMX addresses according to your console configuration. Mount the scan bar securely on a truss, bracket or flat surface and ensure the heads have free movement space. Use the DMX channels to set pan/scan positions, movement speed and light intensity; test patterns at low intensity before full operation to verify beam alignment and movement ranges. Regularly inspect the mounting and cabling for wear and correct any DMX addressing conflicts in multi-fixture setups.

Recommendations

For reliable performance, allow adequate ventilation around the fixture and avoid placing it near heat sources. Use a DMX tester or address manager when integrating multiple units to avoid channel overlap. Clean the optics periodically with a soft, dry cloth to maintain beam clarity, and secure cables to prevent strain on connectors during events.
