LED strip connector 2-pin 8 mm EUROLITE 50530063 for 8mm single-color LED strips

EUROLITE 50530063 is a 2-pin connector designed for 8 mm single-color LED strips. It enables a solder-free electrical and mechanical connection between a short strip segment and supply wiring or between two strip ends. The connector offers a compact alternative for quick installation, repair, or replacement of single-color LED tape in lighting projects where an 8 mm width is specified.

Advantages

The connector provides a fast, tool-minimal method to join 8 mm single-color LED strips and cables without soldering, reducing installation time and complexity. Its compact form factor allows for discreet placement in tight mounting locations while ensuring stable contact for signal and power. Using this connector helps maintain neat cable management and simplifies replacing short sections of strip without reworking the entire run.

Suitable for

Key specifications

How to use

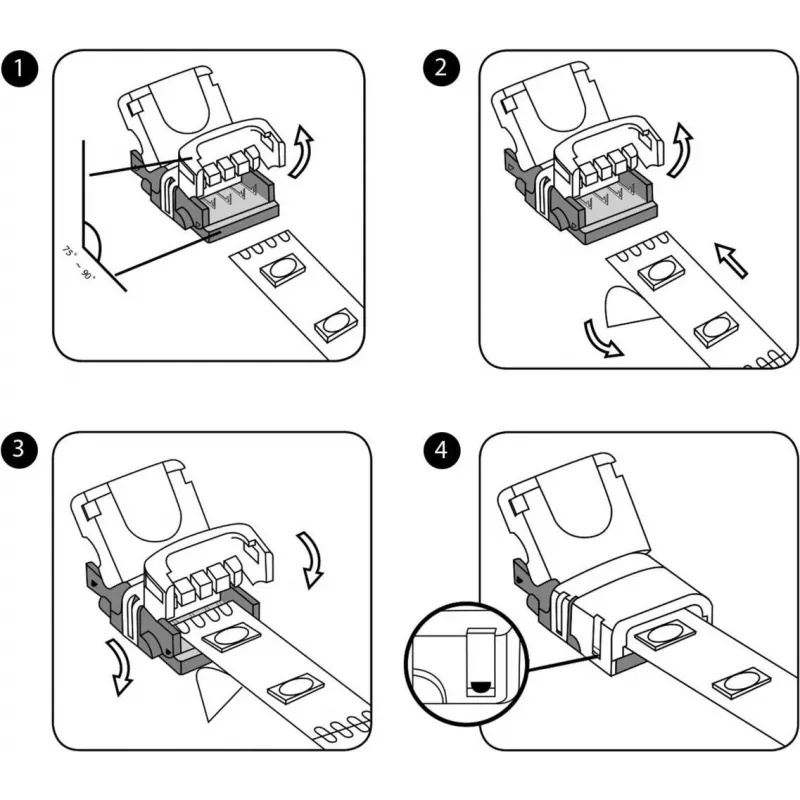

Ensure the LED strip and connector are compatible in width (8 mm) and type (single-color). Prepare the strip by exposing the copper contact pads at the cut line specified by the strip manufacturer. Open the connector, align the strip so the contacts match the connector pins, and insert the strip fully until it seats. Close the connector to secure the electrical contact and, if provided, lock the clamp. Attach the supply cable to the connector following polarity markings and secure the cable in place. Power the strip briefly to verify correct connection before final mounting.

Recommendations

Use this connector indoors or in protected installations where the connector is not exposed to moisture or mechanical strain. Confirm correct polarity before powering the strip to avoid damage. For long runs or outdoor installations, use appropriate waterproof or higher-current-rated connection solutions suited to the application.
