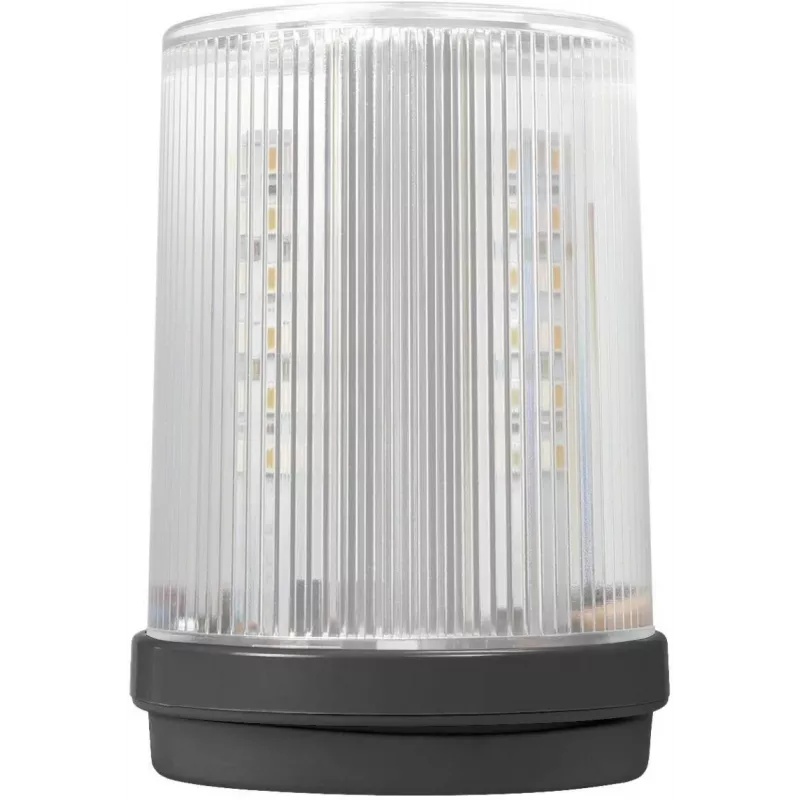

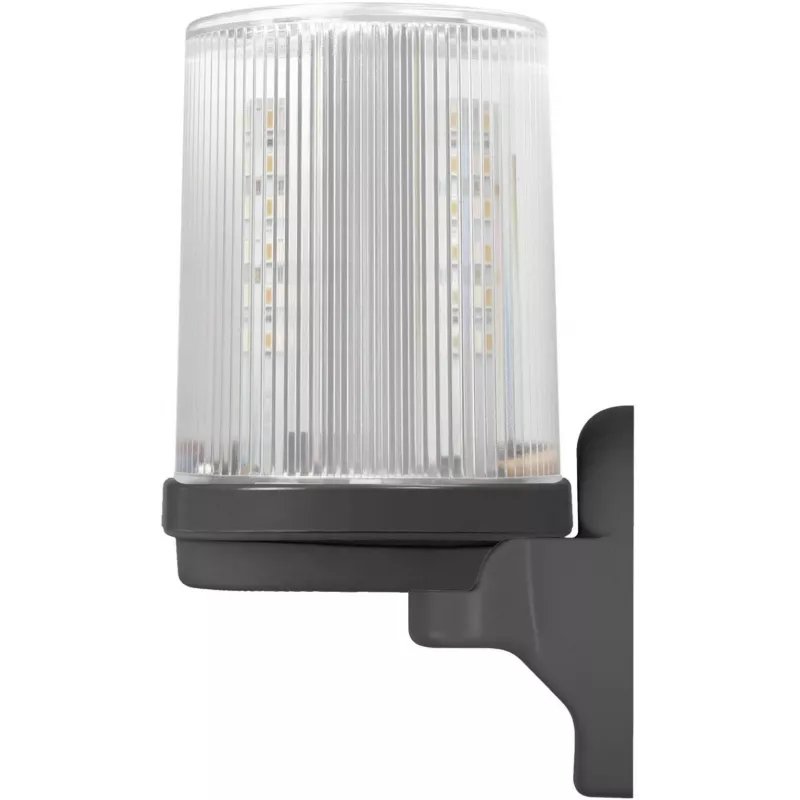

LED Lamp Proxima WALEC with Integrated 868 MHz Antenna (12-24V AC/DC or 230V AC) - White, Orange Light

The Proxima WALEC is a professional LED warning lamp with an integrated 868 MHz antenna, designed for automatic gate and barrier systems. It combines high visibility with reliable wireless communication, making it ideal for access control applications. The lamp emits a flashing orange light and is powered by 12-24V AC/DC or 230V AC, offering flexible installation options.

Advantages

Integrated 868 MHz antenna eliminates the need for external antennas, simplifying installation and reducing clutter. The lamp is built with a durable polycarbonate housing and has an IP54 rating, ensuring protection against dust and water splashes. With a low power consumption of max. 3W, it is energy-efficient while providing bright LED illumination.

Suitable for

• Automatic gate and barrier systems
• Access control points
• Industrial and commercial entrances
• Parking lot barriers

Key specifications

• Light Source: LED
• Antenna Frequency: 868 MHz
• Power Supply: 12-24V AC/DC or 230V AC
• Light Color: Orange
• Operating Mode: Flashing
• Ingress Protection (IP) Rating: IP54
• Housing Material: Polycarbonate

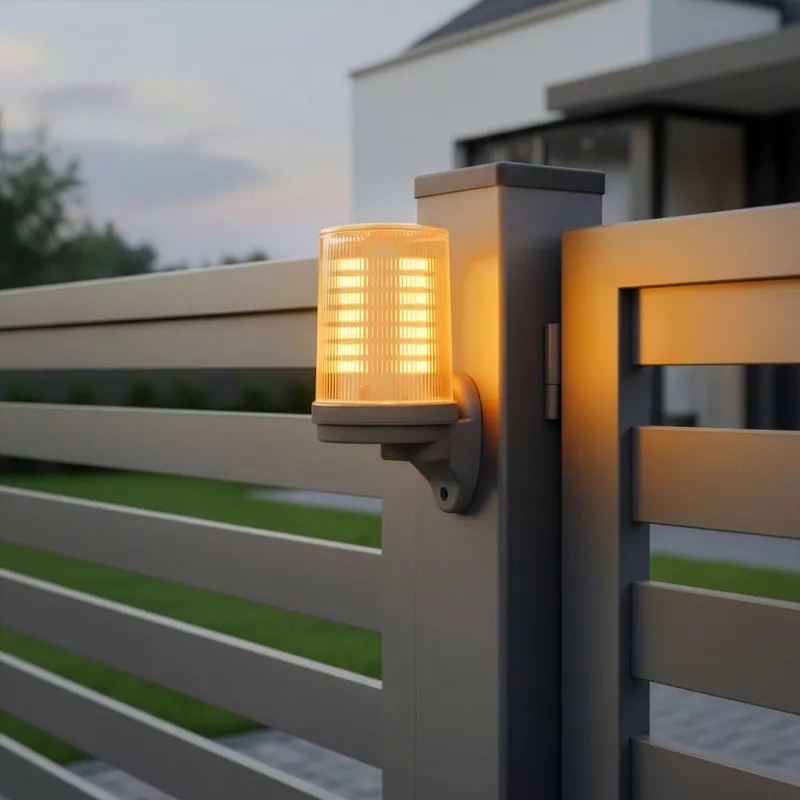

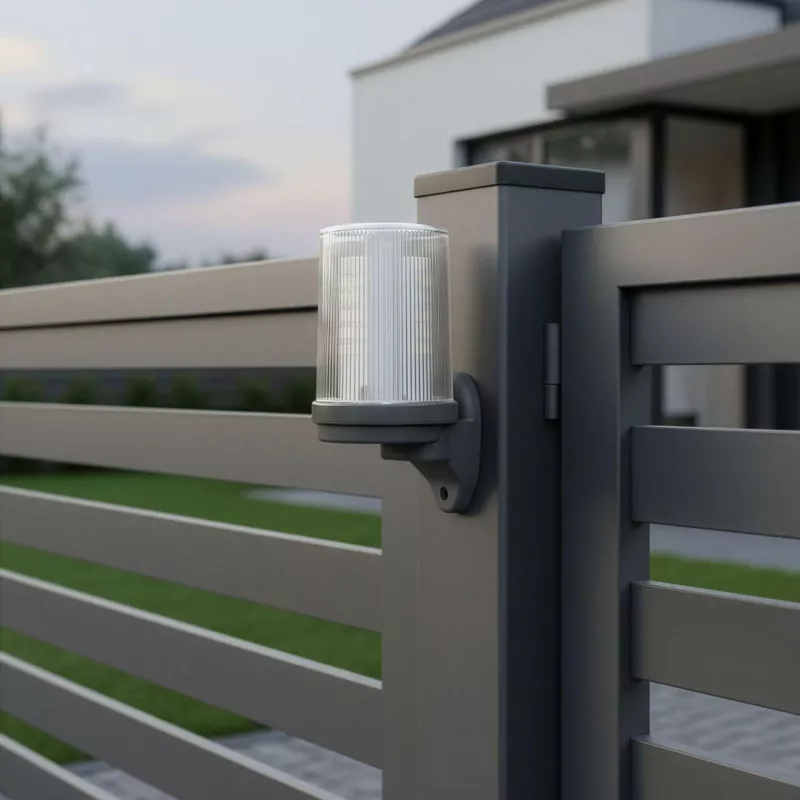

• Mounting Type: Vertical (Wall/Post)
• Power Consumption: Max. 3W
• Operating Temperature: -20°C to +60°C
• Antenna Type: Integrated
• Number of LEDs: 8
• Compatibility: Universal for 868 MHz gate controllers
• Certifications: CE
• Shape: Cylindrical

Recommendations

For optimal performance, ensure the lamp is mounted vertically and connected to a compatible 868 MHz gate controller. The integrated antenna provides reliable communication within typical operating ranges.
