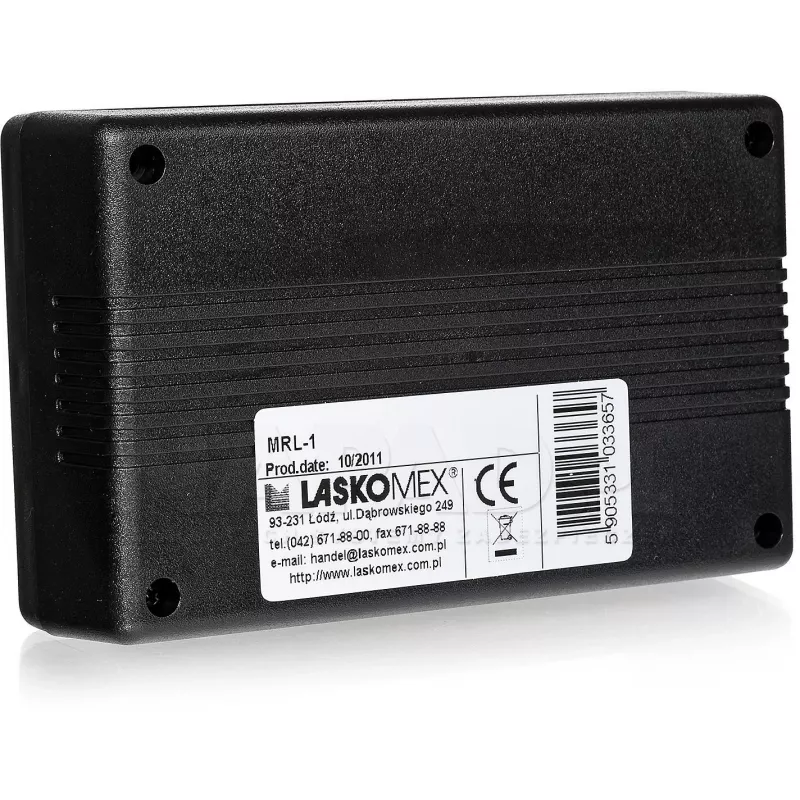

Laskomex MRL-1 Module for Line Splitting for EC-3100 Cassette

The Laskomex MRL-1 is a passive line splitting module designed specifically for the Laskomex EC-3100 intercom cassette system. It enables the distribution of a single intercom line to up to four independent outputs, simplifying wiring in multi-apartment buildings and reducing cable runs. This module is ideal for system expansion and allows multiple risers or zones to be served from one central cassette.

Advantages

Simplifies intercom wiring by splitting one input into four outputs; passive operation requires no external power; screw terminal connections ensure secure and easy installation; compact surface-mount design fits neatly inside distribution boxes; enhances system flexibility for multi-family residential buildings.

Suitable for

• Multi-apartment residential buildings
• Multi-family homes
• Laskomex EC-3100 intercom systems
• Analog 2-wire intercom installations

Key specifications

• Module Type: Line Splitting Module
• System Compatibility: Laskomex EC-3100 Intercom Cassette
• Intercom System Type: Analog 2-Wire
• Input Lines: 1
• Output Lines: 4
• Connection Method: Screw Terminals
• Mounting Type: Surface Mount
• Power Requirement: Passive (powered by intercom system)
• Housing Material: ABS Plastic
• Color: Grey
• Operating Temperature: -10°C to +50°C
• Installation Environment: Indoor

Recommendations

For optimal performance, use with Laskomex EC-3100 cassette and ensure all connections are properly tightened. This module is a reliable solution for expanding intercom coverage without additional power sources.
