Laser engraving and cutting machine xTool F1 deluxe kit — 2-in-1 engraving and cutting system

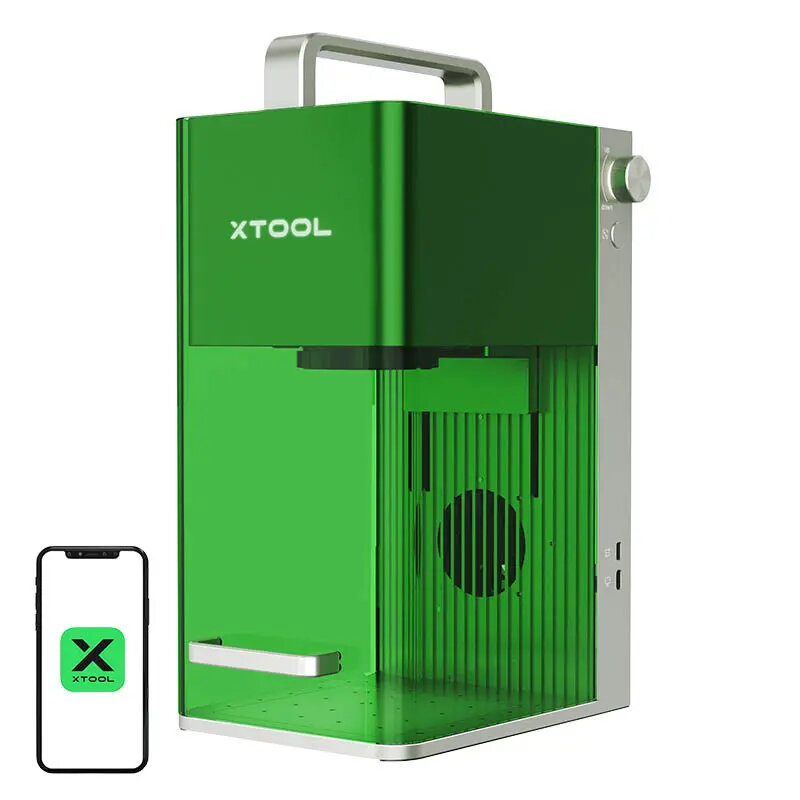

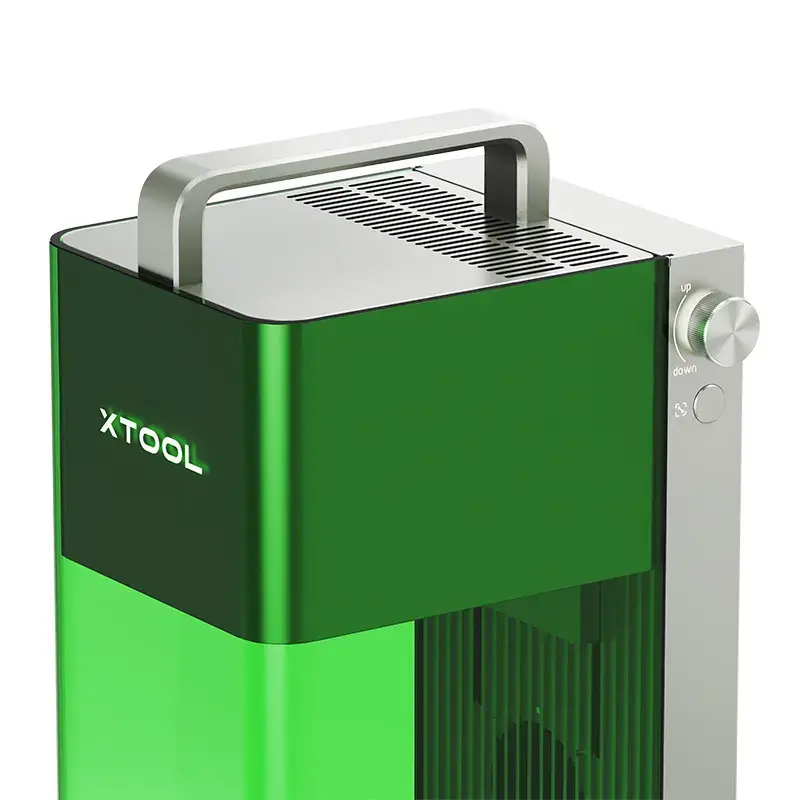

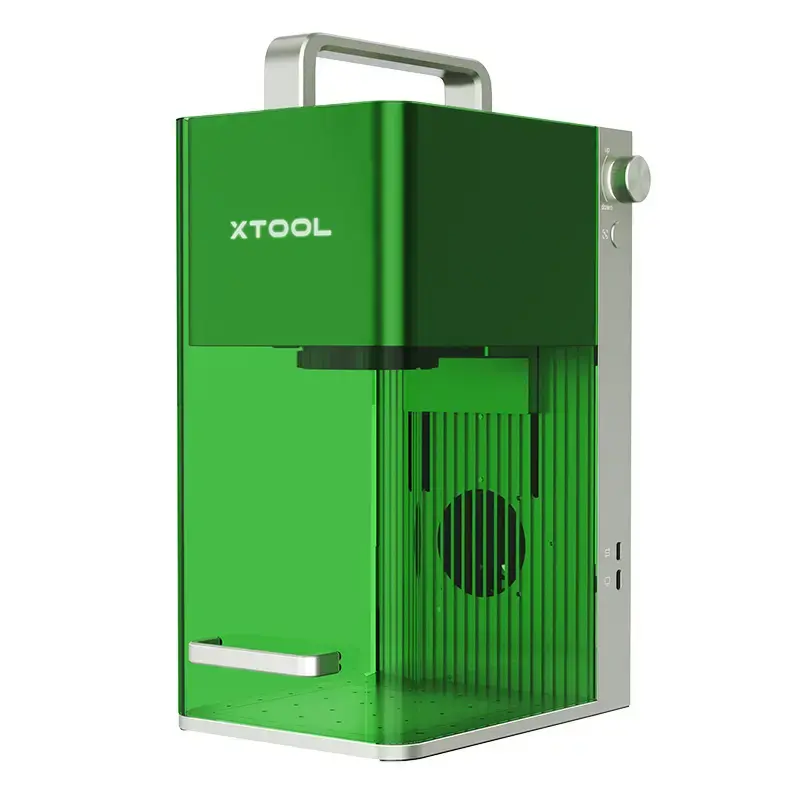

xTool F1 Laser Engraver Deluxe Kit combines a 2-in-1 xTool F1 mint green laser head with the RA2 Pro rotary attachment, a Desktop Smoke Purifier and the Slide Extension movable base to provide an integrated desktop engraving and cutting solution. The system supports both diode (10W, 455nm) and infrared (2W, 1064nm) lasers, offers a working area of 115 x 115 mm (rounded square), autofocus, Wi‑Fi and USB connectivity, and is compatible with Android, iOS, Windows and macOS. The kit includes accessories for the rotary, smoke purifier and movable base to enable immediate setup and varied workflows.

Advantages

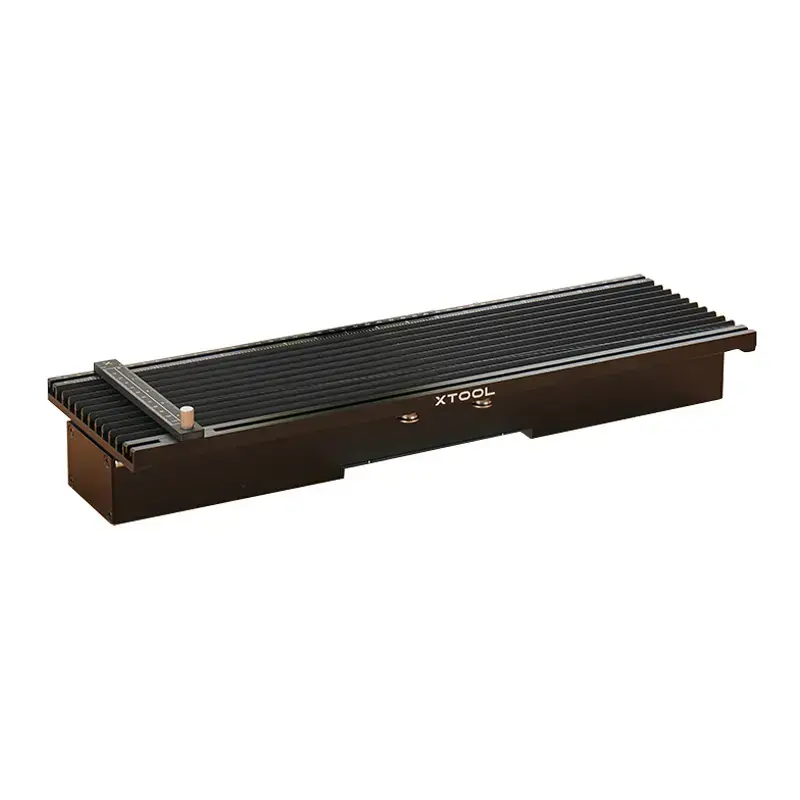

The kit delivers high engraving speed (up to 4000 mm/s) and fine positional accuracy (0.00199 mm) while enabling rotary and spherical engraving via the RA2 Pro attachment. Built-in autofocus and dual-laser configuration provide versatility across materials, and the Desktop Smoke Purifier integrates with the engraver to control fumes. The Slide Extension movable base increases usable workspace and simplifies calibration and handling for larger or repeated jobs.

Suitable for

• Detailed engraving and cutting of wood, acrylic, leather and similar materials

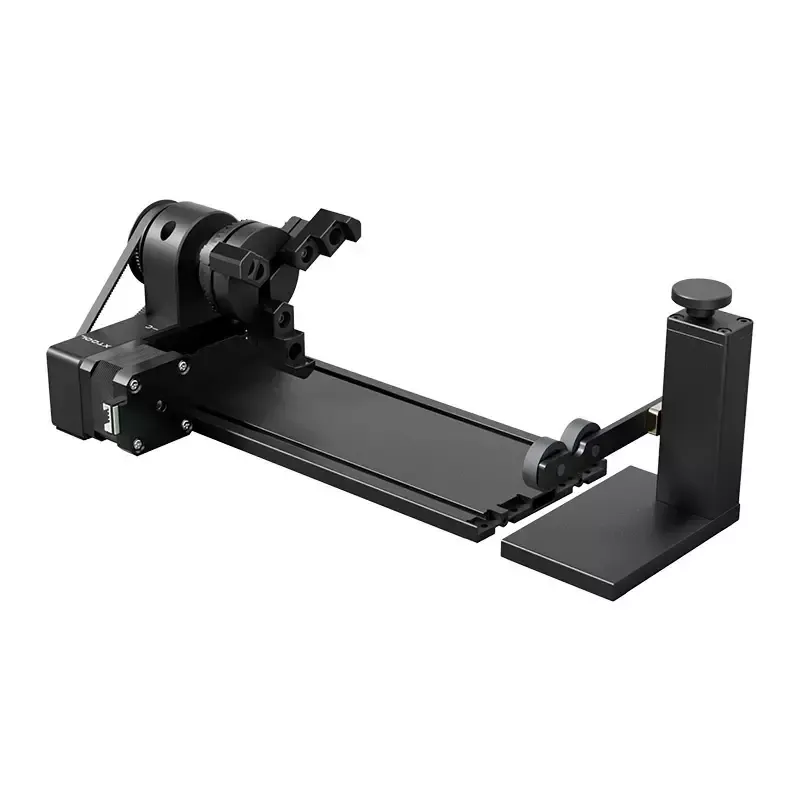

• Cylindrical, spherical and ring engraving using the RA2 Pro rotary attachment
• Prototyping, custom signage, personalized gifts and small-batch production

Key specifications

• Brand: xTool; Model: F1; Color: Mint
• Laser power: 10W (diode, 455nm) and 2W (infrared, 1064nm)
• Speed: up to 4000 mm/s; Accuracy: 0.00199 mm; Autofocus: Yes
• Working area: 115 x 115 mm (rounded square); Dimensions: 179 x 235 x 334 mm; Weight: 4.6 kg
• Connectivity: Wi‑Fi & USB; Supported formats: SVG, DXF, JPG/JPEG, PNG, BMP etc.
• Supported systems: Android, iOS, iPad, Windows, macOS; Input: 24V 5A

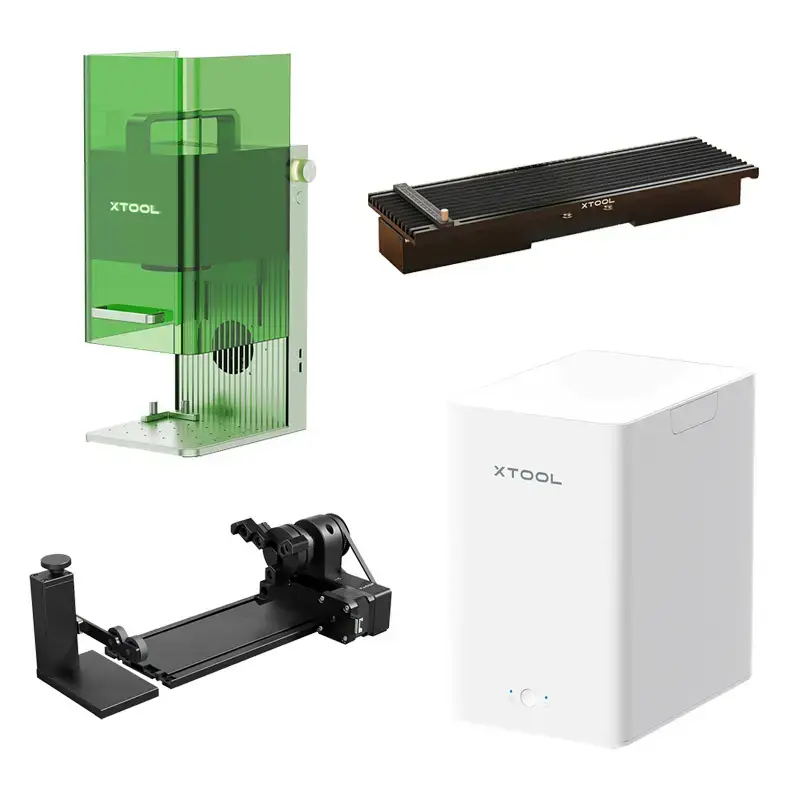

• Included accessories: RA2 Pro rotary with tools and fasteners; Desktop Smoke Purifier with filters, pipe and adapters; Slide Extension base with clamps, ruler and USB cable; user manuals

How to use

Install the xTool F1 on the Slide Extension base and connect the Desktop Smoke Purifier with the provided pipe and adapter. Mount the RA2 Pro rotary attachment when cylindrical or spherical engraving is required and secure workpieces with the supplied clamps or the rotary chuck/roller modules. Connect the system via Wi‑Fi or USB, load a supported file format (SVG, DXF, PNG, JPG, BMP), set laser parameters for material type and thickness, and use the autofocus feature to establish the correct working height before starting the job.

Recommendations

Use appropriate ventilation and the supplied smoke purifier filters for material types that produce fumes. Select laser power and speed settings according to material density and thickness, secure small or thin parts with clamps to avoid movement, and follow the user manuals for maintenance of filters, optics and rotary components.
