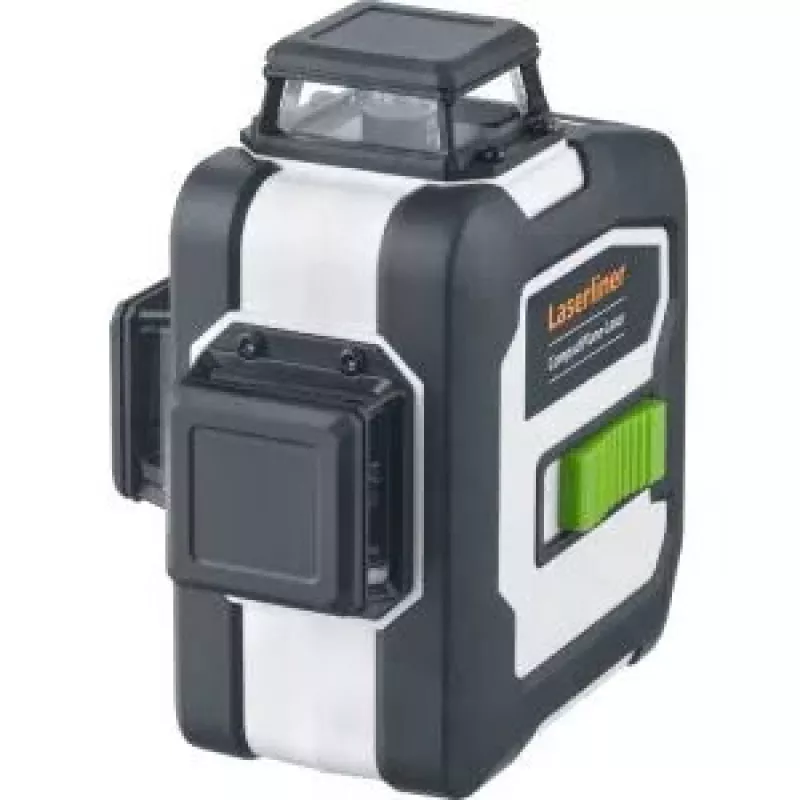

Laser distance meter Laserliner CompactPlane-Laser 3G Pro 30 m Accuracy 0.35 mm

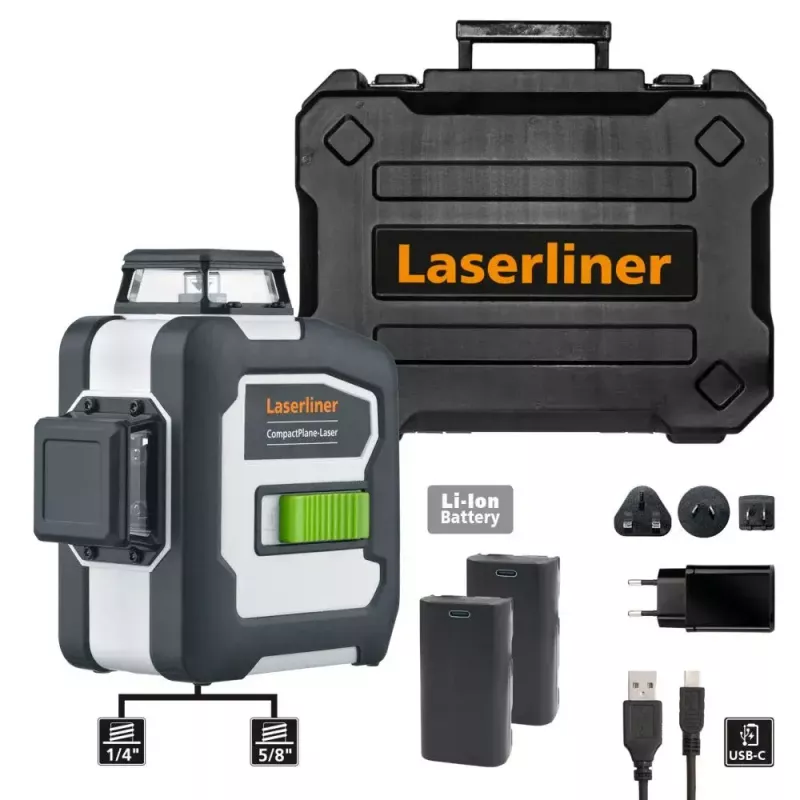

The Laserliner CompactPlane-Laser 3G Pro projects one horizontal and two vertical green laser circles for precise alignment of objects and gradients. With a 515 nm wavelength and up to 30 m range, the device offers high visibility even in poor lighting. It includes a manual slope function, tilt error prevention, a pendulum locking system for transport protection, and an integrated handheld receiver mode for use with an optional laser receiver. The unit is compact (120 × 80 × 122 mm), rechargeable via USB-C and powered by a 7.4 V / 2.6 Ah lithium-ion battery.

Advantages

The green laser technology provides improved visibility compared with red lasers at the same power level, supporting accurate alignment in unfavourable lighting. Manual slope adjustment and digital tilt error prevention increase measurement reliability. Remote control via digital interface and the free Commander app enables convenient operation. Pendulum lock protects internal components during transport, and the handheld receiver mode expands usability for outdoor and long-range work. Standard 1/4" and 5/8" tripod connections ensure compatibility with common mounting equipment.

Suitable for

Key specifications

How to use

Place the CompactPlane-Laser 3G Pro on a tripod or stable surface using the 1/4" or 5/8" thread, or hold it in the integrated handheld receiver mode for use with a compatible laser receiver. Power the device via the internal lithium-ion battery and charge through the USB-C port as needed. Activate the laser to project one horizontal and two vertical circles, and use the manual slope function to set gradients. Use the digital interface or the Commander app for remote control and parameter adjustments. Engage the pendulum locking system before transport to protect internal components.

Recommendations

For outdoor or long-distance alignment, use the optional laser receiver to increase detection range and accuracy. Avoid direct eye exposure to the laser beam and follow local safety regulations for laser devices. Store the device with the pendulum lock engaged when transporting.
