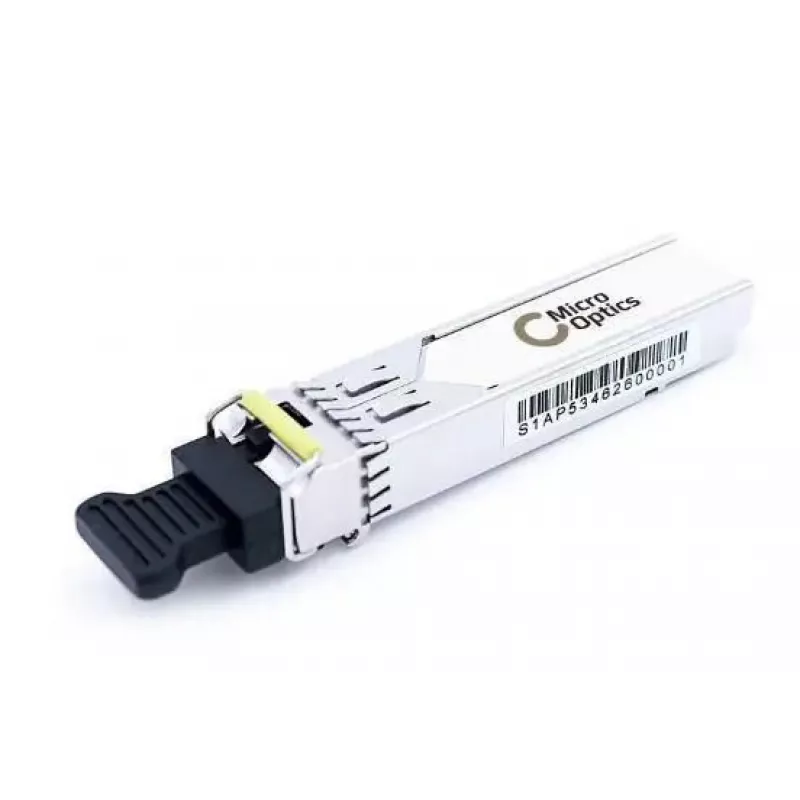

Lanview MO-G-SFP-BX-U-40KM network transceiver module Fiber optic 1000 Mbit/s

Lanview MO-G-SFP-BX-U-40KM network transceiver module is an SFP-form-factor fiber optic module designed for 1 Gbit/s links. The compact metallic module supports a maximum data transfer rate of 1000 Mbit/s and fits standard SFP slots for Gigabit Ethernet and fiber network equipment. Its small dimensions make it suitable for high-density switch and router installations while offering RoHS and MSA compliance.

Advantages

The module provides a standardized SFP interface for easy hot-swapping and compatibility with a wide range of network devices. Its metallic housing ensures mechanical stability and reliable signal performance over single-mode fiber. Compliance with RoHS and MSA specifications simplifies integration into enterprise and carrier environments.

Suitable for

• Gigabit Ethernet uplinks and downlinks between switches and routers
• Fiber backbone connections in data centers and server rooms
• Long-distance point-to-point fiber links up to 40 km
• Replacement or upgrade of generic SFP-BX-U-40KM compatible modules

Key specifications

• Form factor: SFP (small form-factor pluggable)
• Interface type: Fiber optic SFP
• Maximum data transfer rate: 1000 Mbit/s (Gigabit)
• Application: Single-mode fiber long-reach links
• Housing: Metallic
• Dimensions: approximately 14 mm (W) × 56 mm (D) × 8.5 mm (H)
• Weight: 0.03 kg
• Standards compliance: MSA, RoHS

How to use

Insert the SFP transceiver into an empty SFP slot on a compatible switch, router, or media converter while the device is powered per vendor guidance for hot-swap support. Connect a matching single-mode fiber cable with appropriate connectors to the transceiver port, ensuring correct transmit and receive orientation. Configure the network device ports for Gigabit operation and verify link status and diagnostics through the device management interface.

Recommendations

Use this Lanview SFP module with compatible equipment that supports generic SFP-BX-U-40KM modules and single-mode fiber. For best results, verify fiber type, connector polish, and link budget for 40 km reach. Handle the transceiver by its housing and avoid touching the optical interface; keep dust caps in place when not connected.
